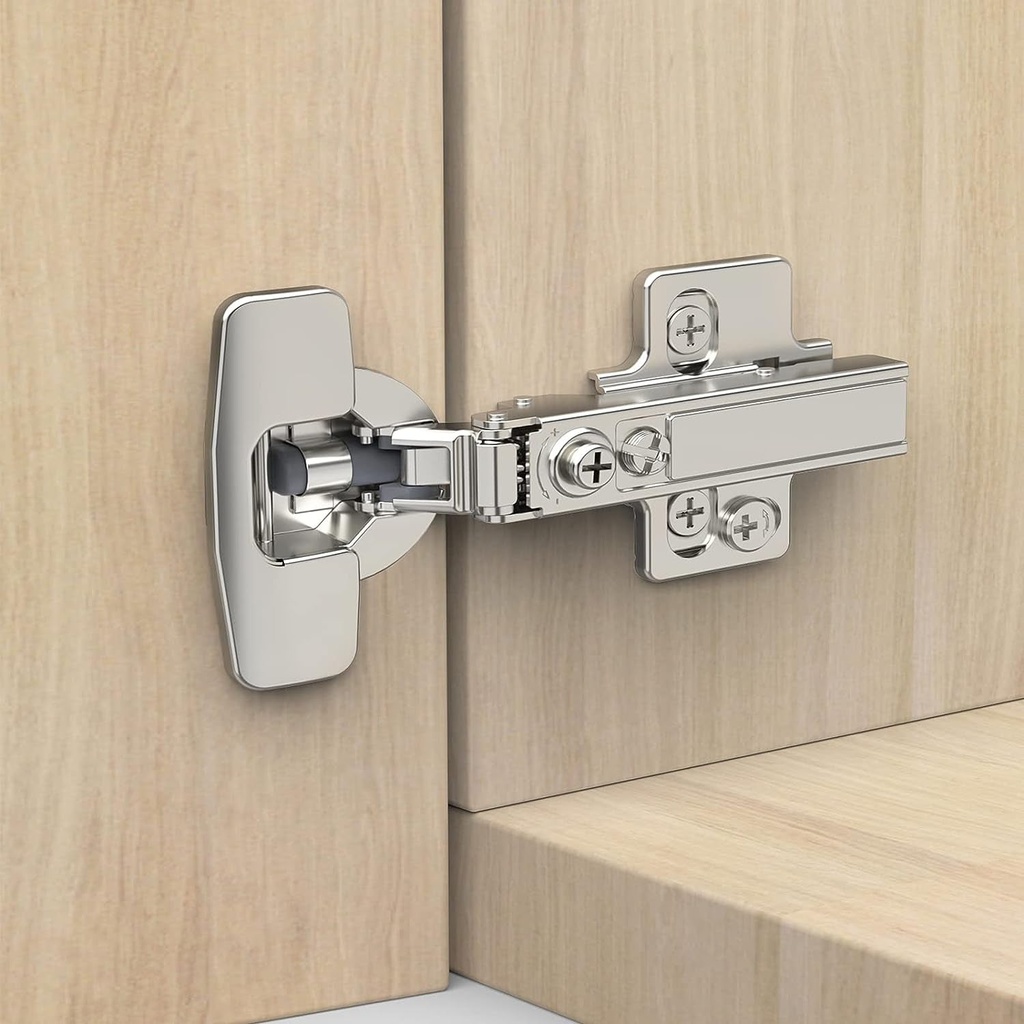

50 Pack Frameless Full Overlay Concealed European Hinges, Self Closing Satin Nickel, Soft Close 105 ° Open Angle 4D Adjustment, Speed Control, Clip On, Stainless Steel for Cabinet Door
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.

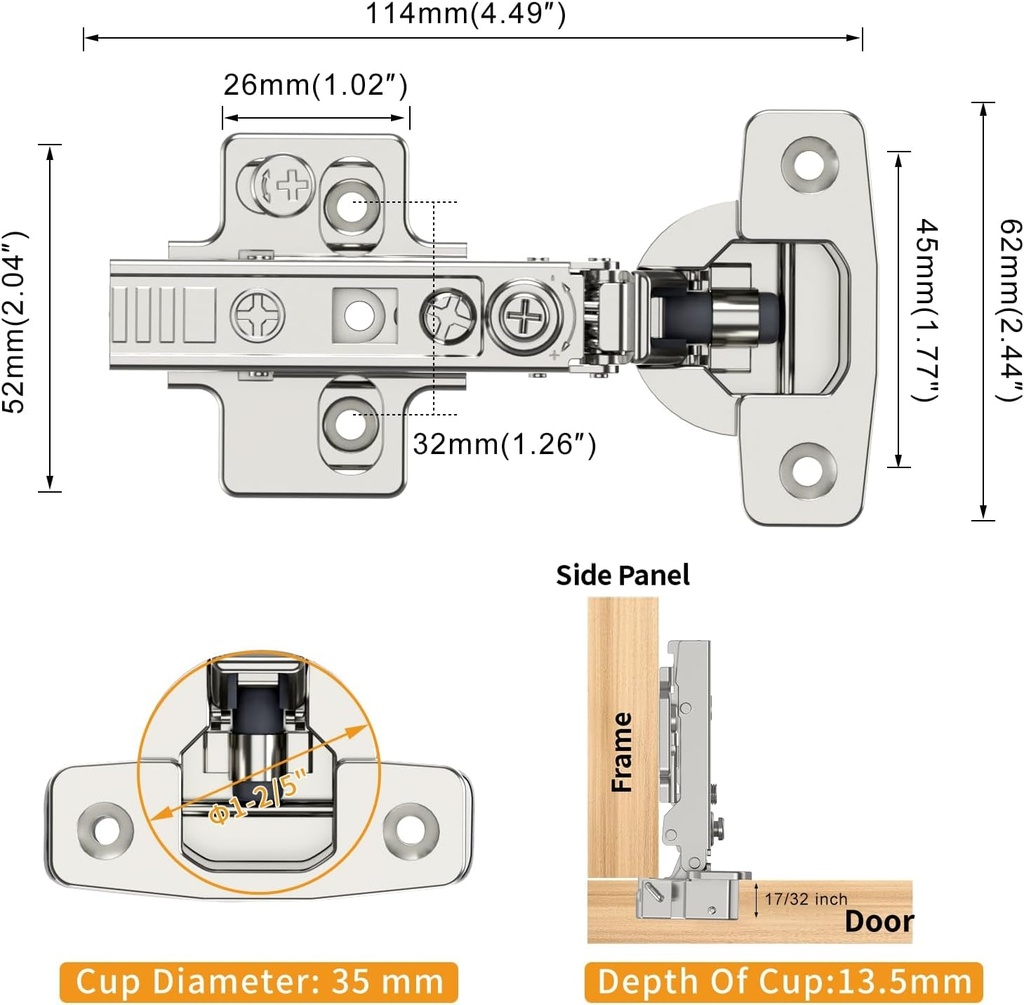

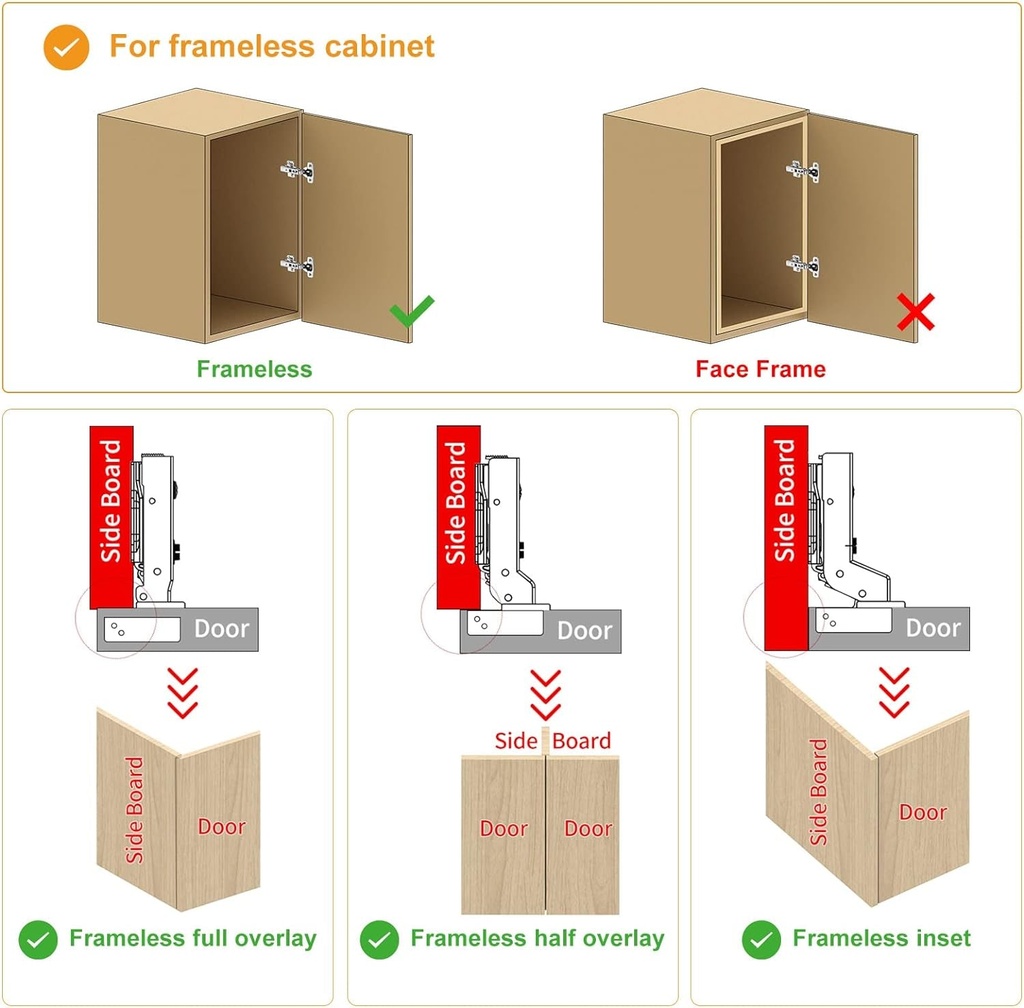

- Installation Specification - Cup depth: 13.5mm; Screw holes distance: 45mm; Opening angle: 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Each hinge comes with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a perfect fit and comes with 2 screw covers to hide the screws. Each euro-style concealed kitchen cabinet hinge is fit for full overlay doors on frameless cabinets.
- SOFT CLOSE CABINET HINGE - Each cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports ★SMALL SOFT CLOSE ANGLE★, which can better protect your finger.

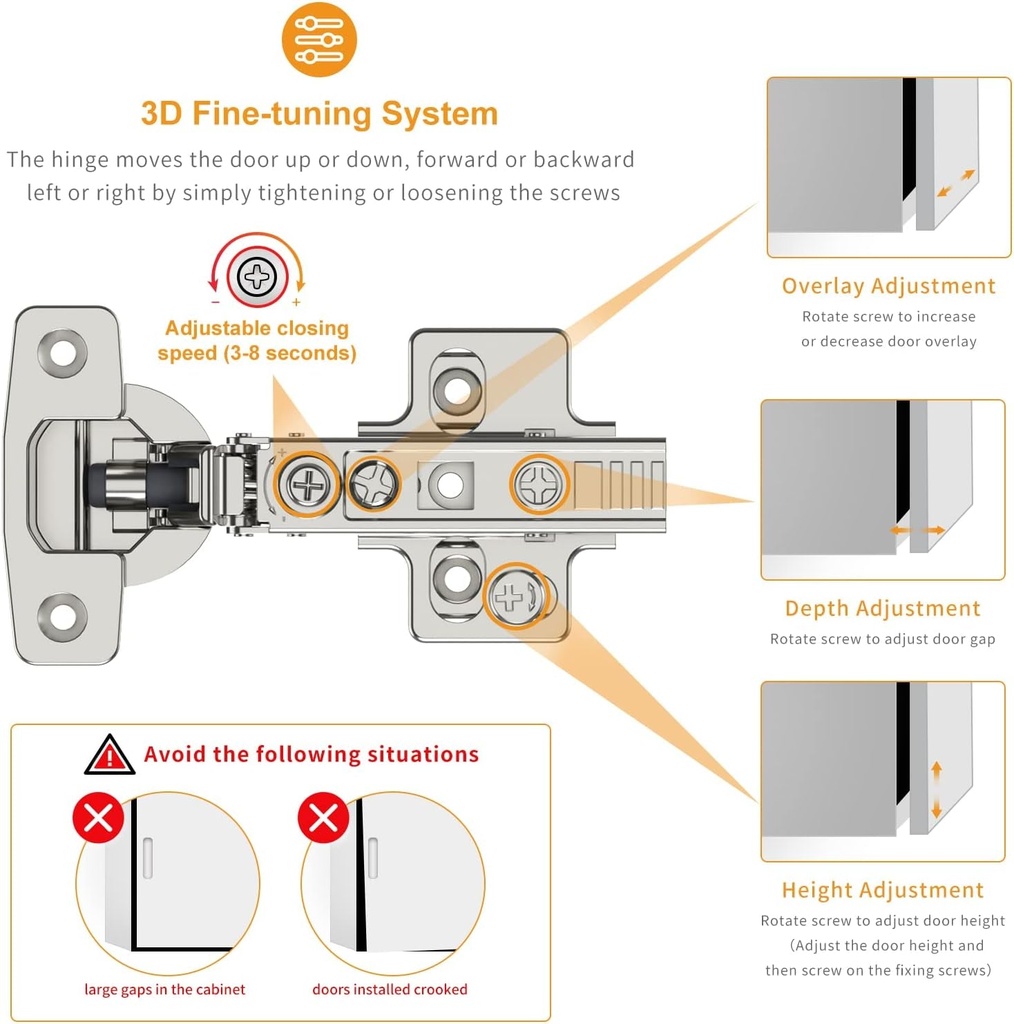

- 4D Adjustable Upgrade - 4D hinges can adjust the cabinet door just by turning a screwdriver (Vertical, Horizontal, Depth, Closing Speed), which will make sure that your new custom-made cabinet doors don't sag, align properly, and will open and close smoothly; Closing speed can be adjusted at will within 3-8s.

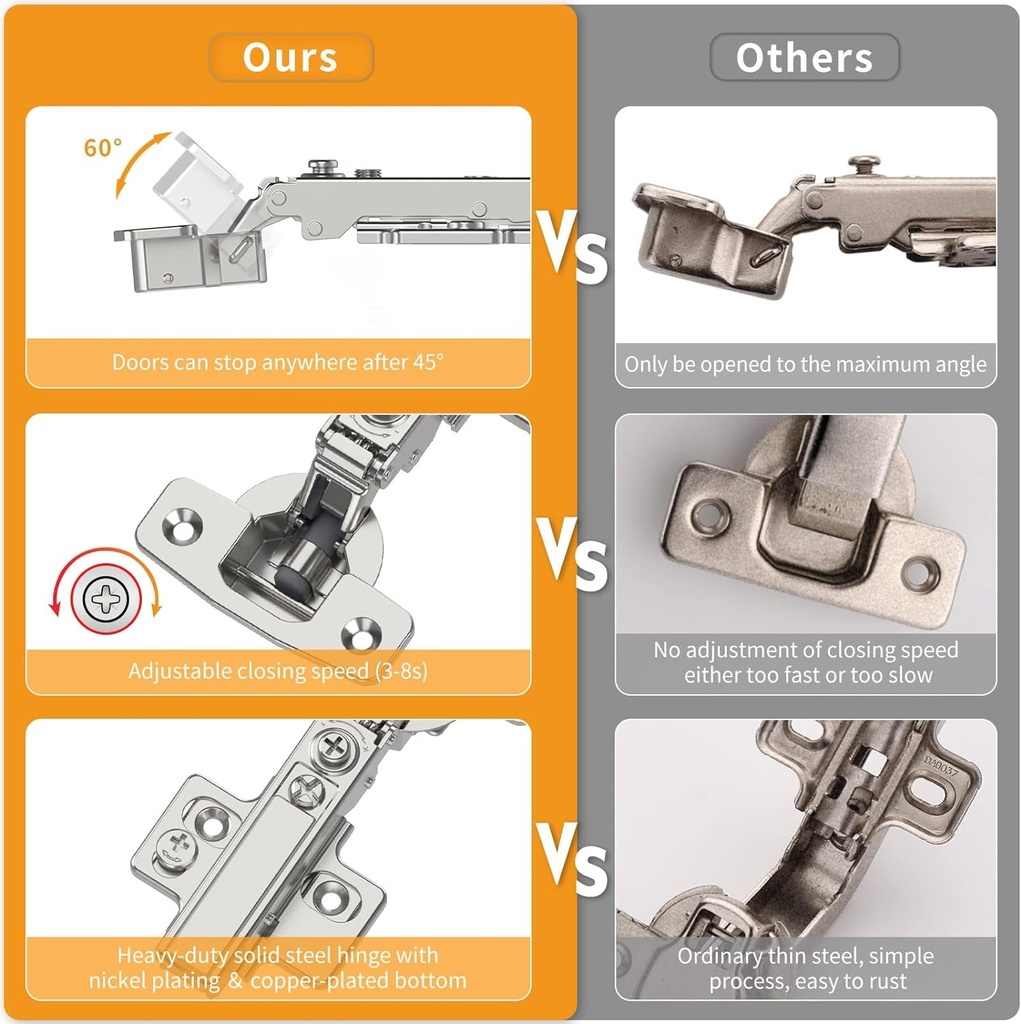

- Stop at any angle after 45° - Cabinet hinges can stop at any angle after the cabinet door is opened at an angle greater than 45°. This means that you don't need angle clips when your cabinet door is near the wall, and you can still open it at different angles according to your needs. When the opening angle is less than 45°, the cabinet door self-closing.
- Buy with Confidence - Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times of opening and closing and more than 48 hours of salt spray test. If you encounter any problems in the process of use, please feel free to contact us, we will provide the most intimate service.
Product Description
Why choose Chibery's hinges?
✔ Mature product supply chains
1. Chibery has a mature and professional hinge supply chain, our mission is to always put the user experience first, be product-centric, and constantly optimize the sense of use and cost performance of our products.
2. Chibery hinges have been sold to many countries around the world for sale. We highly value the voice of our customers. We also want to bring our American customers cost-effective products, unparalleled quality, and the most personalized service!
✔ Exquisite Craftsmanship & Sturdy Quality
1. Chibery frameless soft close cabinet hinges provide long-lasting durability, 4D adjustable construction, and soft close dampers that support soft close ＆ small soft close angles.
2. Heavy-duty steel surface treatment, double layers electroplating finish, durable, and strong rust prevention capacity (past 48 hours salt spray test), even the roughest kitchens or bathrooms can be durable.
3. Silent opening and closing ＆ Self-closing.
4. Adjustable closing speed (3-8s), Meeting the needs of most people.
✔ Wide range of applications
It's useful for kitchen cabinet doors, wardrobe, tv cabinets, bookcases, wine, and other luxury door connections.
✔ Easy to install
All mounting hardware needed for installation is included in the package, just install the Hinge Cup and CLIP-ON Mounting Plate through the holes into the cabinet doors and side panel, and fine-tune with 4D adjustment. Very quick and easy installation.
| Customer Reviews | 4.6 out of 5 stars 846 | 4.7 out of 5 stars 615 | 4.6 out of 5 stars 357 | 3.6 out of 5 stars 5 | 4.6 out of 5 stars 846 |
|---|---|---|---|---|---|
| Price | $13.99$13.99 | $8.99$8.99 | $32.55$32.55 | — | $19.99$19.99 |
| Open Angle | 135 ° | 105 ° | 105 ° | 105 ° | 165 ° |
| Material | Nickel, Steel | Nickel, Steel | Nickel, Steel | Nickel, Steel | Nickel, Steel |
| Cabinets Application | Corner Cabinets | Face Frame Cabinets | Face Frame Cabinets | Frameless Cabinets | Face Frame Cabinets |
| Overlay Options | / | 1/2",3/4",1-1/4" Overlay | 1/2",3/4",1-1/4" Overlay | Full Overlay | 3/4" |
| Package Quantity | 2 Pack | 2,10 Pack | 2,10,20 Pack | 2,10 Pack | 2 Pack |
Package Dimensions:
9.33 inches x 15.55 inches x 4.45 inches. Weight: 13.33 lb
Specification:
| Item Package Quantity | 50 |
| Style | Euro |
| Finish | Nickel, Satin Nickel |
| Mounting Type | Door Mount |
| Unit Count | 50.0 Count |
| Color | Full Overlay |
| Size | 50 Pack |
| Brand | Chibery |
| Material | Nickel, Steel |
| Batteries Required? | No |
| Item Weight | 13.33 pounds |
| Manufacturer | Chibery |
| Batteries Included? | No |
| Number Of Pieces | 50 |
| Finish Type | Nickel, Satin Nickel |
| Package Dimensions | 15.55 x 9.33 x 4.45 inches |
| Included Components | Full Overlay Hinges X 50, Easy-on dowels X 100 ＆ Self-tapping wooden screws X 200, Screw cover X 100 (50 X Arm Covers, 50 X Cup Covers) |
