- For Doors with 1/2" (12.7 mm) Top Rail Depth
- Adjustable Side-Load Bottom Pivot Set for Threshold Mounting
- Includes All Necessary Parts
- 5 Year Limited Warranty
- UL Listed

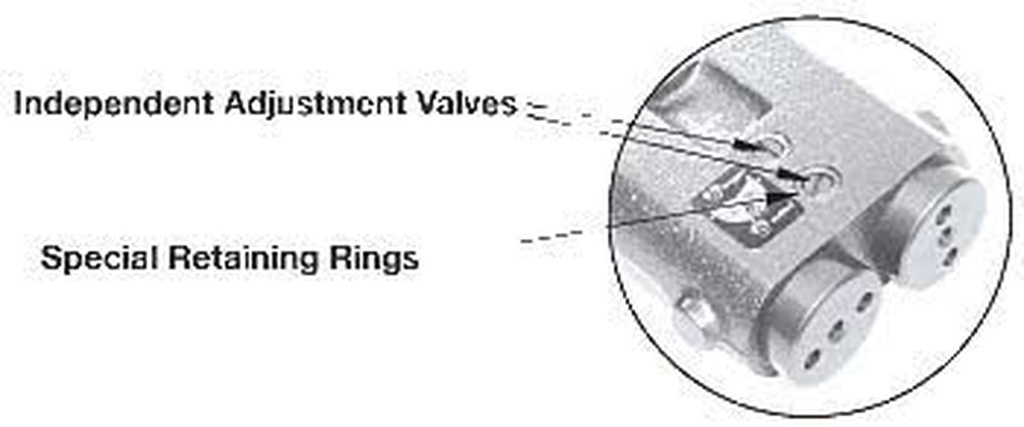

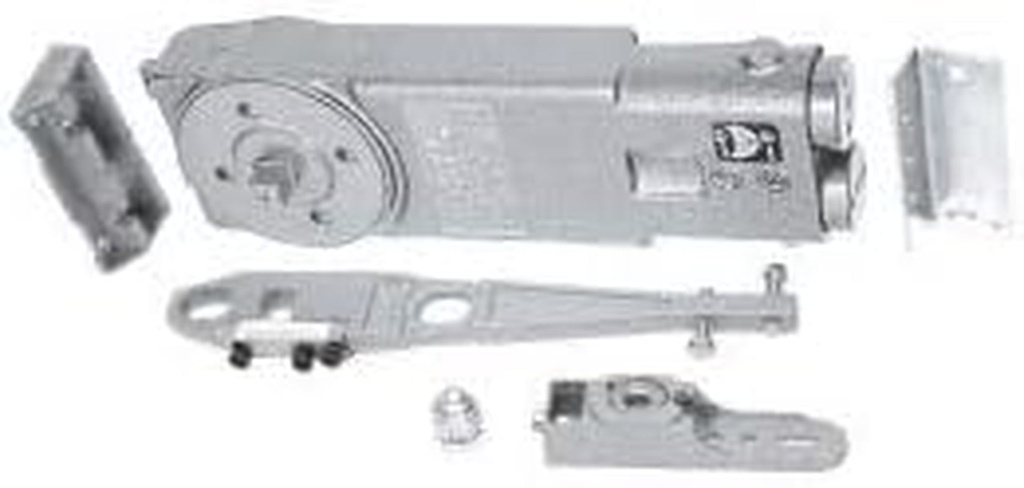

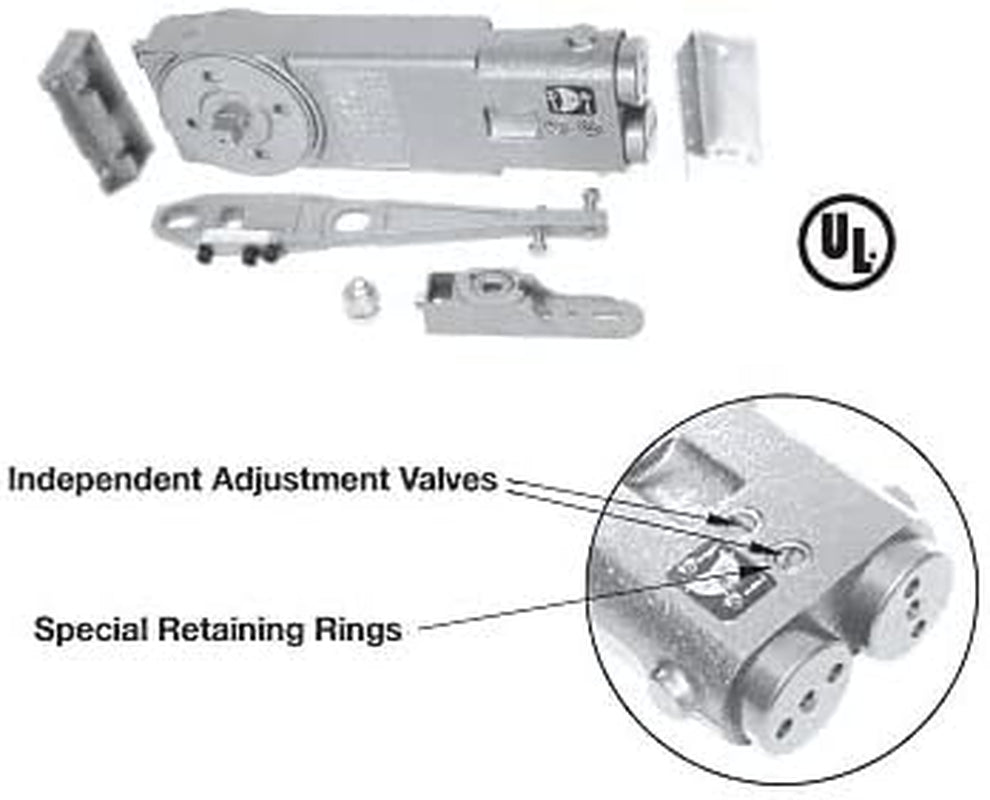

"GE" Center-Hung, Side-Load Hardware Package for Doors with 1/2" Deep Top Rails Suitable for Doors From 30 to 42 Inch (762 to 1,069 mm) Wide U.L. Listed With a Five Year Limited Warranty Door Closers Cross Reference Chart The CRL GE Overhead Closer Package consists of a Medium Duty Door Closer suitable for doors from 30 to 42 inches (762 to 1,069 millimeters) wide. The Closer is packaged complete with CRL8010FS Mounting Clips, CRL8010S "S" Side Load Arm, CRL8010GE "GE" Adjustable Threshold Mount Bottom Pivot Set and complete installation instructions. The Closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90º and 105º Hold Open and No-Hold Open models are available. Closers fit into standard 1-3/4 x 4 inch (44.5 x 101.6 millimeter) (or larger) header extrusions. Closer Body Length: 11-5/8 in (295 mm) Closer Body Width: 3-11/16 in (94 mm) Minimum Order: 1 Each Important Note: This Door Closer is not to be used for doors weighing in excess of 200 Lbs.
Package Dimensions:
6.0 inches x 6.0 inches x 6.0 inches. Weight: 10.0 lb
Specification:
| Item model number | CRL8160GE |
| Part Number | CRL8160GE |
| Style | 90? |
| Item Package Quantity | 1 |
| Specification Met | UL |
| Product Dimensions | 6 x 6 x 6 inches |
| Material | Aluminum |
| Handle/Lever Placement | Double Acting |
| Batteries Required? | No |
| Item Weight | 10 Pounds |
| Installation Type | Screw-In |
| Batteries Included? | No |
| Exterior Finish | Aluminum |
| Brand | CRL |
| Manufacturer | C.R. Laurence |
