Dynasty Hardware Push Bar Panic Exit Device for Emergency Exit Doors Painted Aluminum, with Exterior Lever Handle
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.

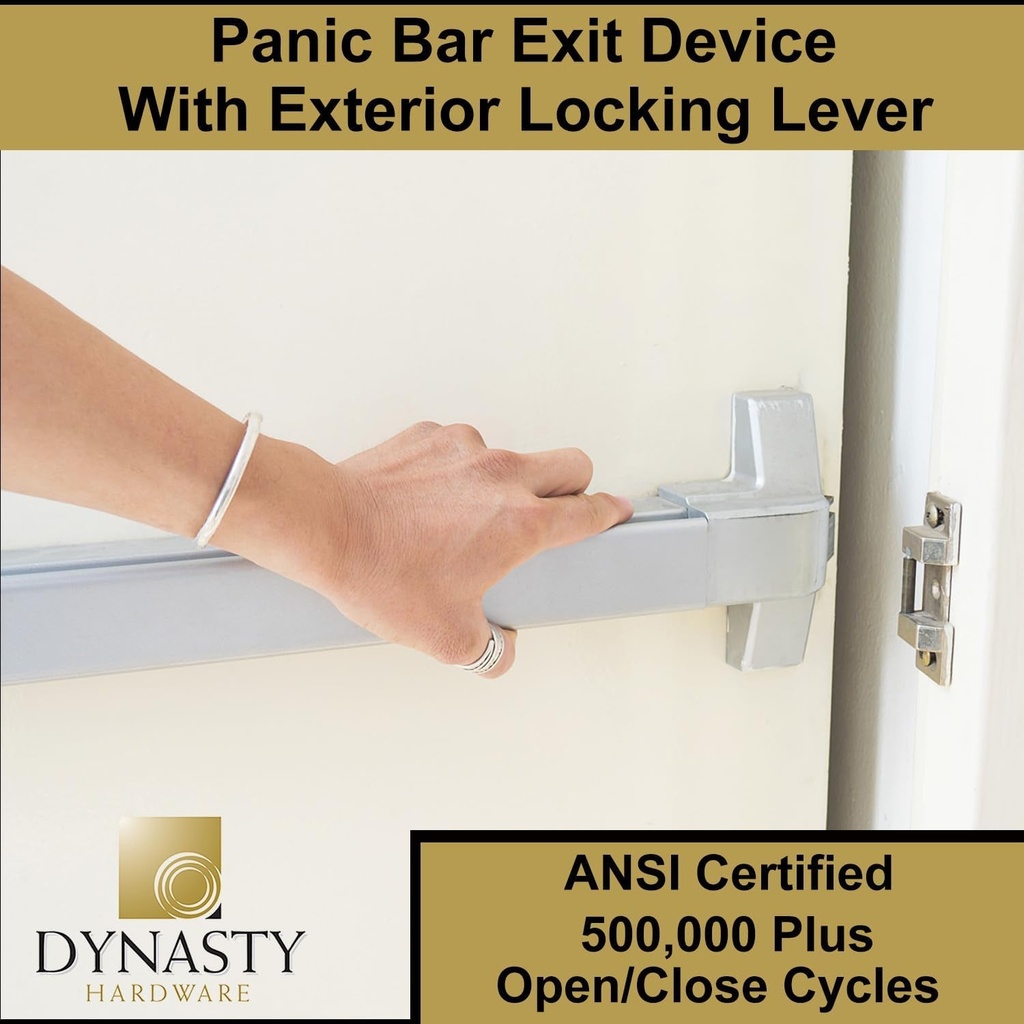

- Excellent quality and a great value. The Dynasty Hardware panic bar exit device has passed testing of over half a million cycles and is grade 1 certified. This panic device with exterior lever is ADA approved for medium to high traffic doors.
- This panic device is reversible so it can be installed on right or left hand doors. This set includes an exterior lever that can be locked or unlocked using the provided keys. This panic device uses a SC1 keyway.
- Each set includes a dogging feature and includes the dogging hex key. . Dogging a device holds the latchbolt retracted removing the need to turn the lever or push the panic bar to retract the latch and open the door. You essentially only have to push or pull the door for it to open when the exit hardware is “dogged” This is perfect for high traffic doors.

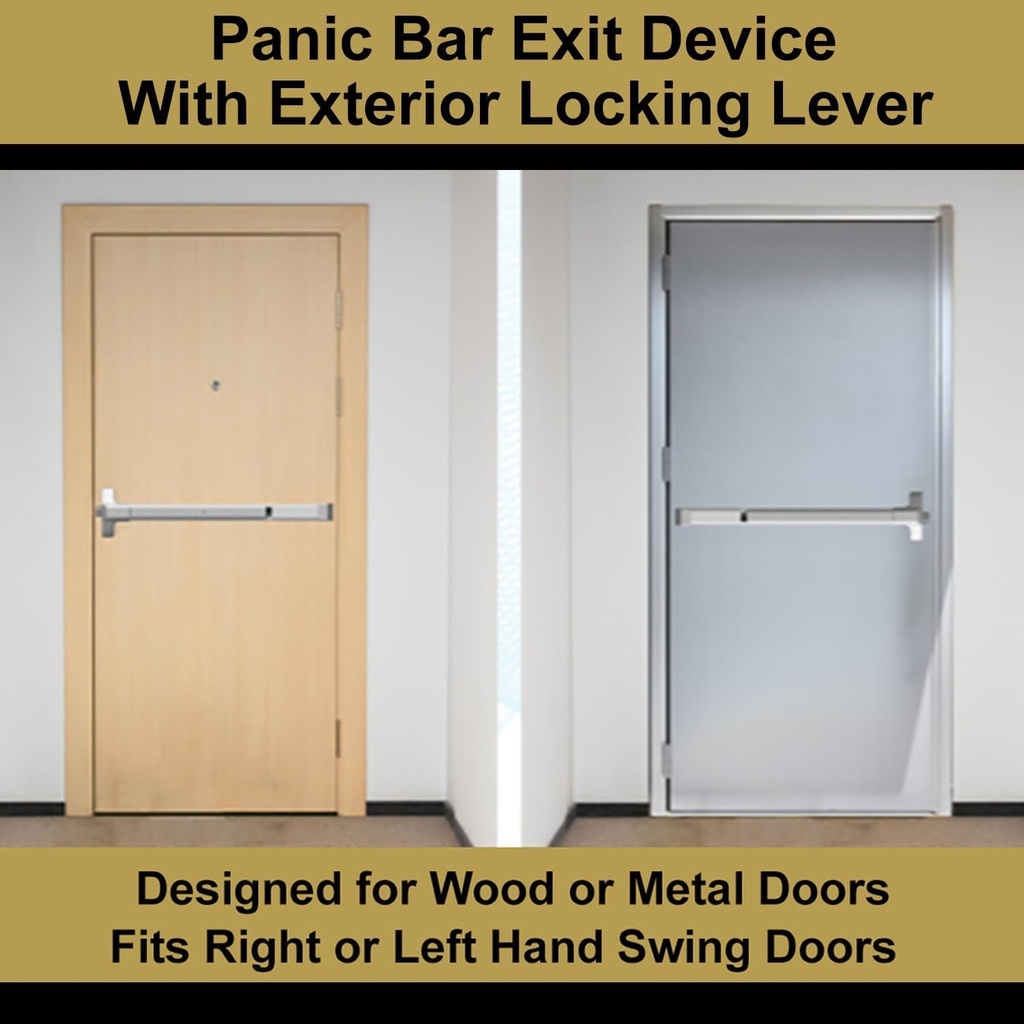

- Product's actual size: 31 inches, Fits Doors 30" through 36" Wide - Can be cut to size. Perfect for either wood or metal doors. Not intended for use on glass storefront doors.
- Limited - Lifetime Factory Warranty
Product Description
Dynasty Hardware Exit Panic Device With Exterior Lever

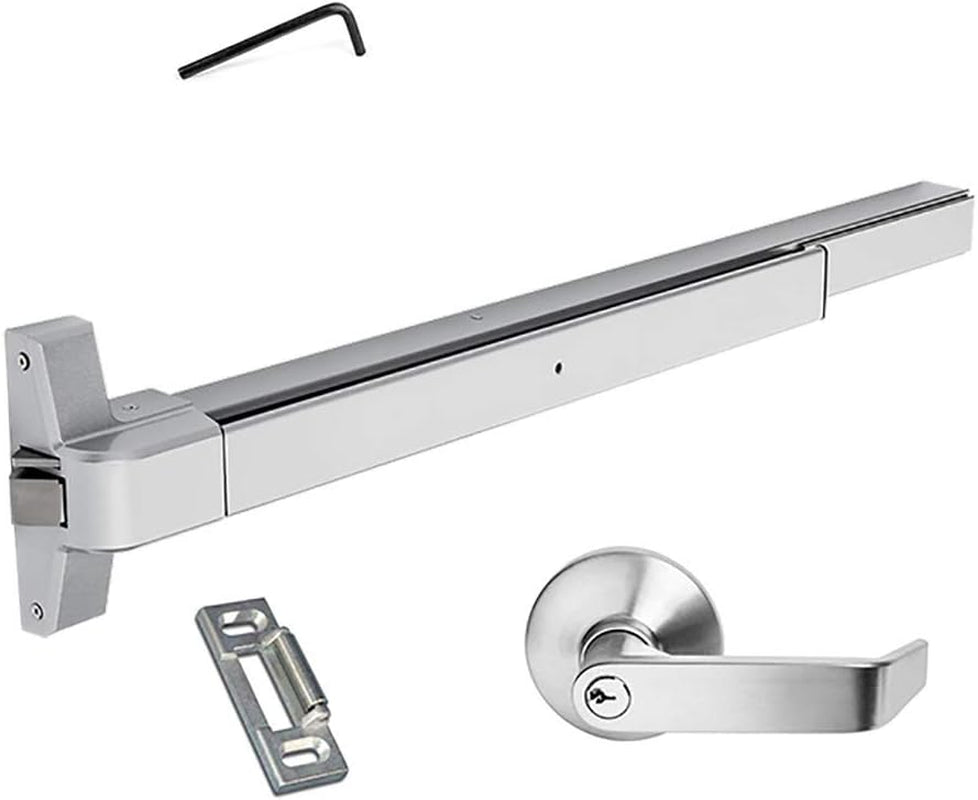

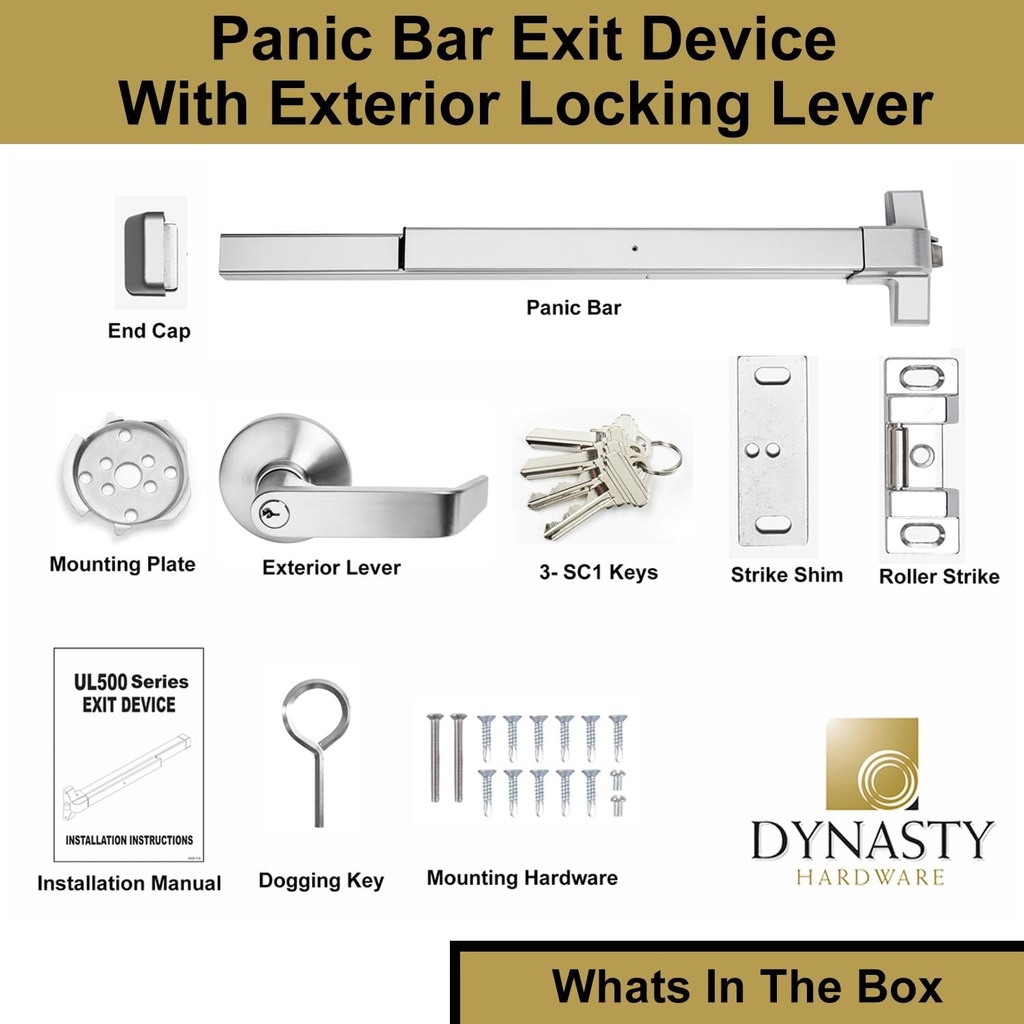

Each set includes the following
- Interior push pad for wood or metal doors. Fits doors between 30 and 36 inches in width. Overall length of device is 31 inches
- Dogging Key - Keeps latch retracted. Converts door to a push pull function
- Exterior Locking Lever Trim. Key retracts latch bolt, unlocks lever. ANSI function 08
- Adjustable roller latch - Mounts on door frame stop.
Certifications
- ANSI Grade 1 approved, exceeds 500,000 cycles
- Complies with ANSI 117.1 for accessible and usable Buildings and Facilities Standards
- ADA Compliant

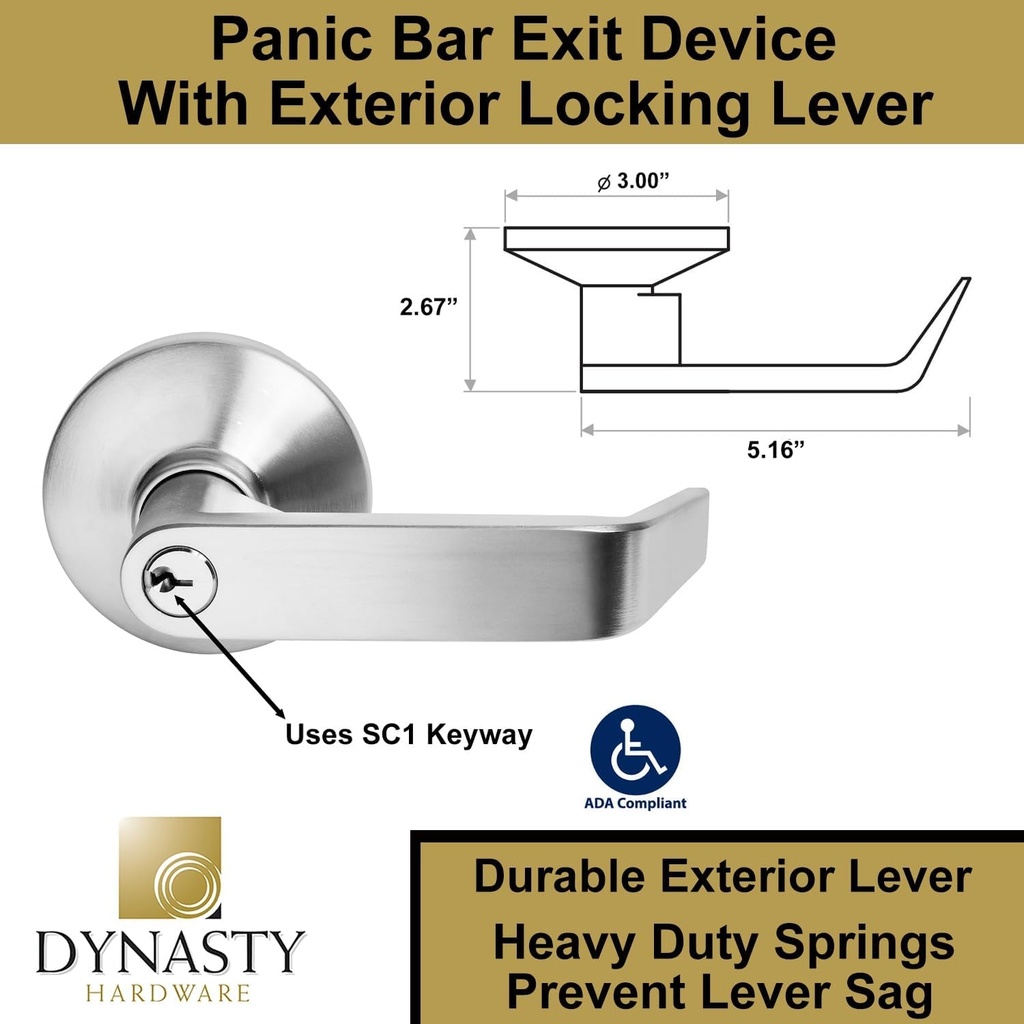

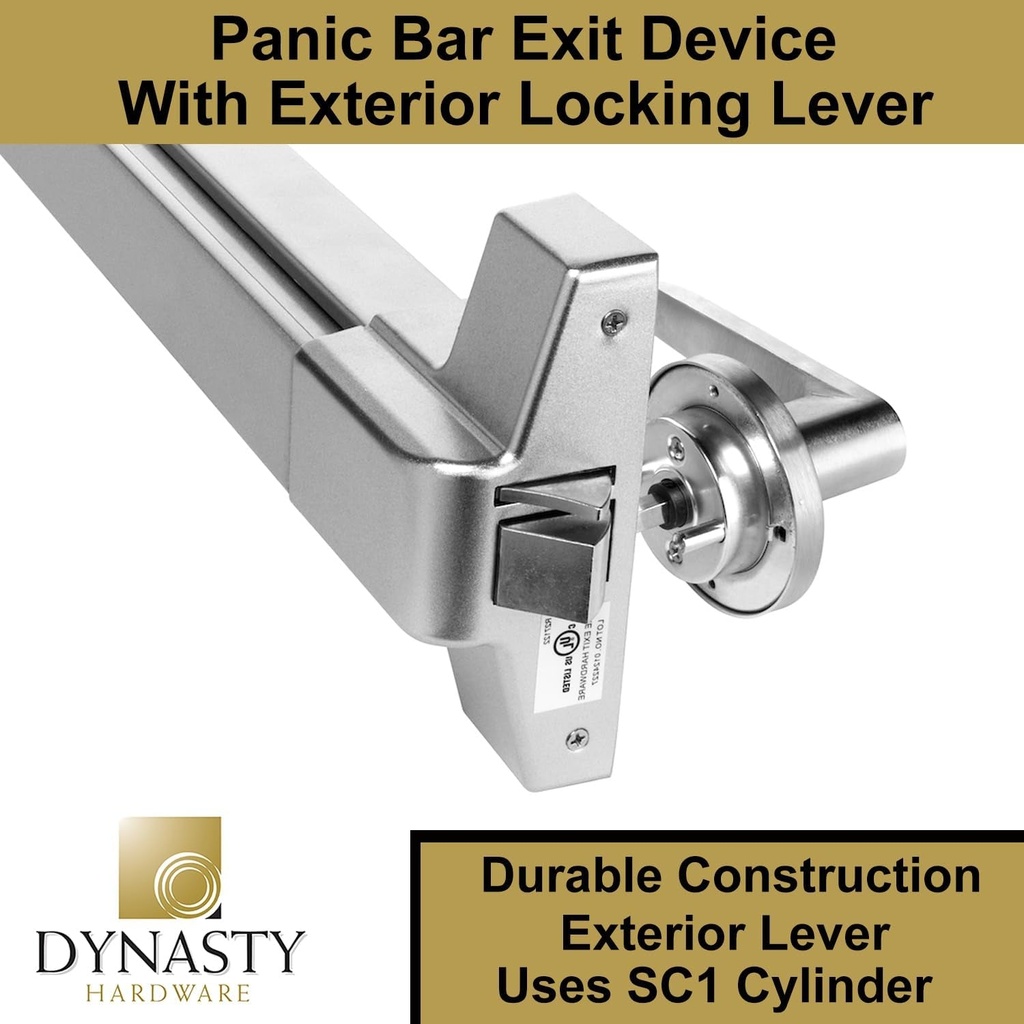

Keyed Exterior Lever
The Dynasty Hardware Exit Panic Device comes with an exterior lever that can be either locked or unlocked using the set of keys which are included
- ANSI Function 08
- Uses "C" Keyway

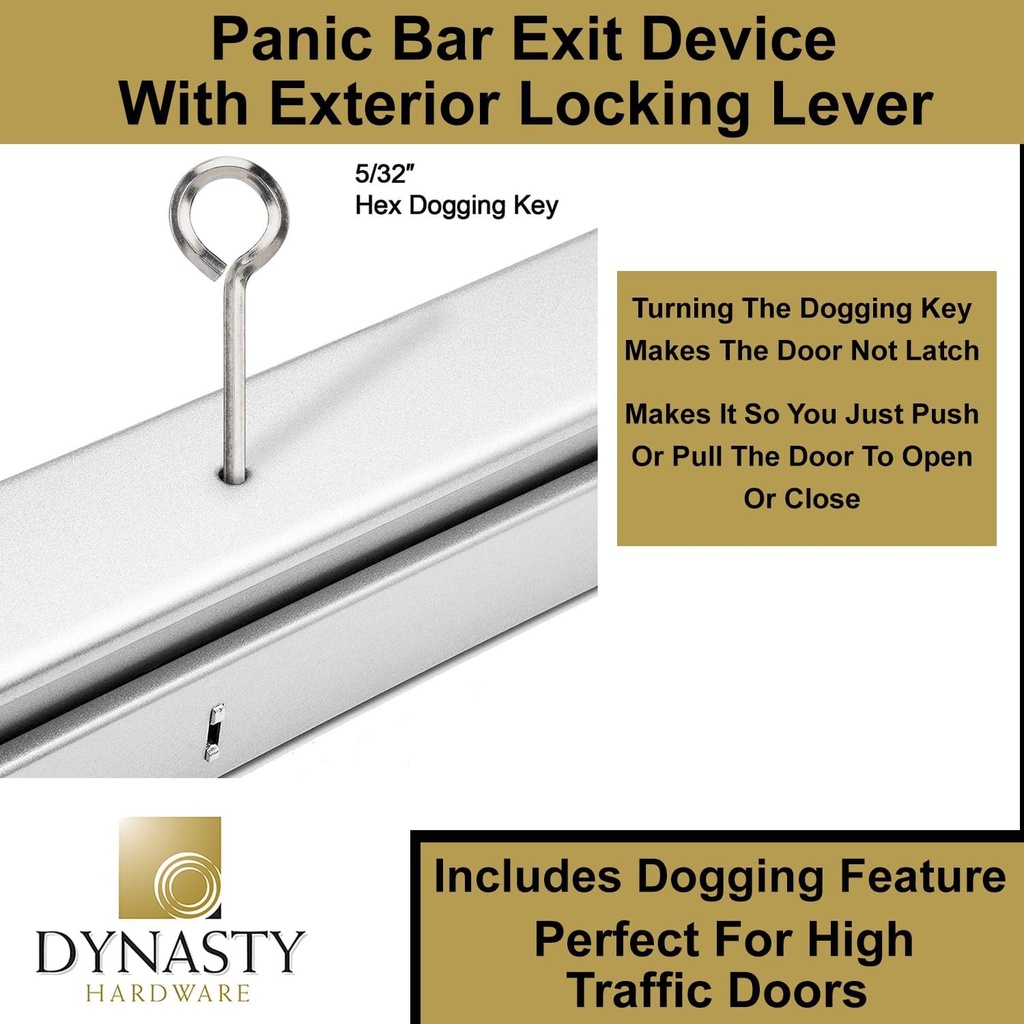

Dogging Key
Each Dynasty Hardware Exit Devices comes with a dogging key.
Dogging is a function of the exit device on the inside of the door. Dogging is when the latch of the device is mechanically held retracted by locking the panic device in the depressed position. When the device is in the dogged position the door can be opened by simply pushing on the inside or pulling on the exterior handle. This is a great feature for doors that receive heavy traffic.
The device can be dogged using the hex key that comes with the device. Simpy insert the key into the hole on the push pad and turn.

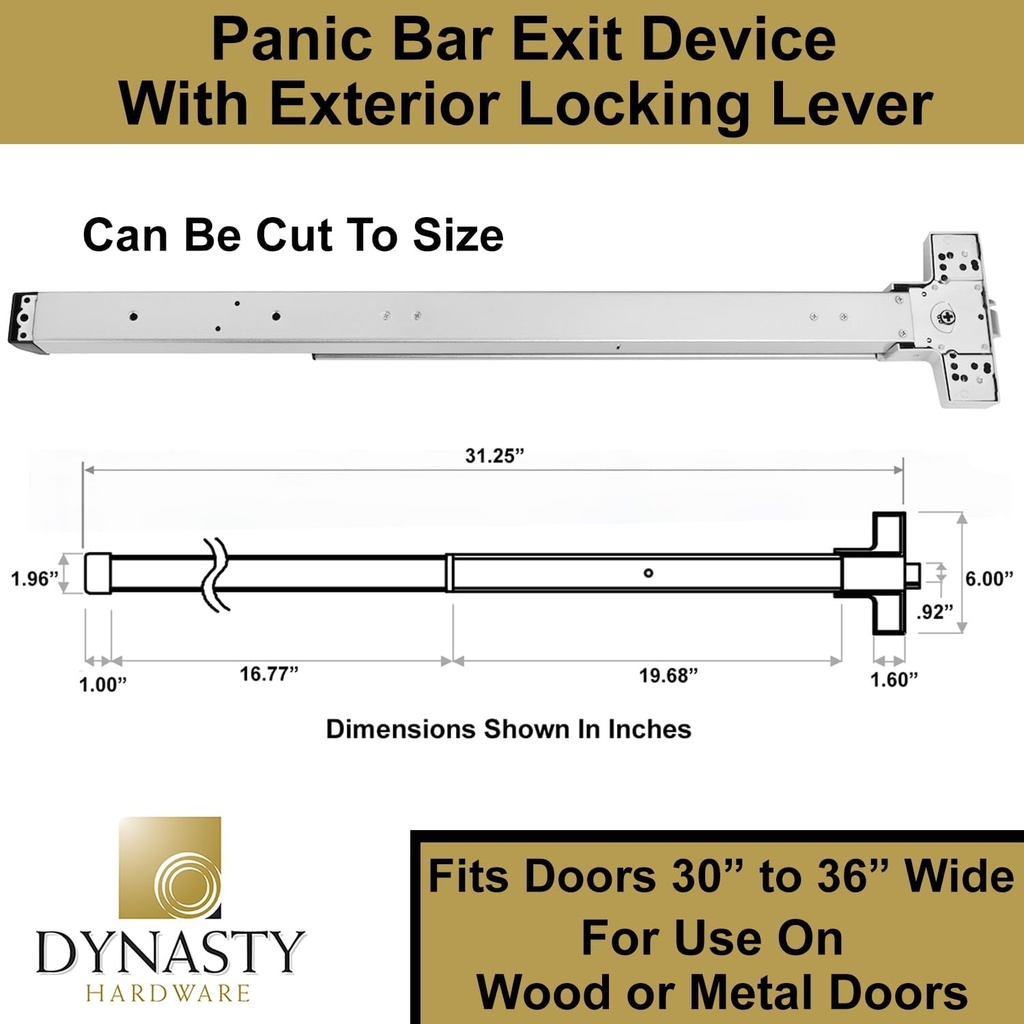

Exit Device Can Be Cut To Fit Your Door
The Dynasty Hardware Exit Device can be cut to fit your door.
- Fits doors that are between 30 and 36 inches in width
- For use on either wood or metal doors
- Overall exit device length is 31 inches
- Includes all mounting hardware
Package Dimensions:
2.64 inches x 13.03 inches x 2.64 inches. Weight: 9.19 lb
Specification:
| Item model number | DYN-500P-06 |
| Style | Heavy Duty |
| Country of Origin | China |
| Batteries Included? | No |
| Number of Pieces | 1 |
| Batteries Required? | No |
| Finish | Sprayed Aluminum |
| Brand | Dynasty Hardware |
| Material | Steel, Zinc |
| Shape | T Shaped |
| Controller Type | Hand Control |
| Finish Type | Sprayed Aluminum |
| Manufacturer | Dynasty Hardware |
| Item Package Quantity | 1 |
| Item dimensions L x W x H | 13.03 x 2.64 x 2.64 inches |
| Control Method | App |
| Item Weight | 9.19 pounds |
| Lock Type | Cylindrical |
| Special Features | Includes Locking Exterior Lever |
| Special Feature | Includes Locking Exterior Lever |
| Part Number | DYN-500P-06 |
| Color | Sprayed Aluminum |
| Is Discontinued By Manufacturer | No |
| Handle Material | Steel |
| Recommended Uses For Product | emergency exits in medium to high traffic areas, suitable for wood or metal doors |
| Included Components | Latch, Lock And Key, Lock |
| Product Dimensions | 13.03 x 2.64 x 2.64 inches |
