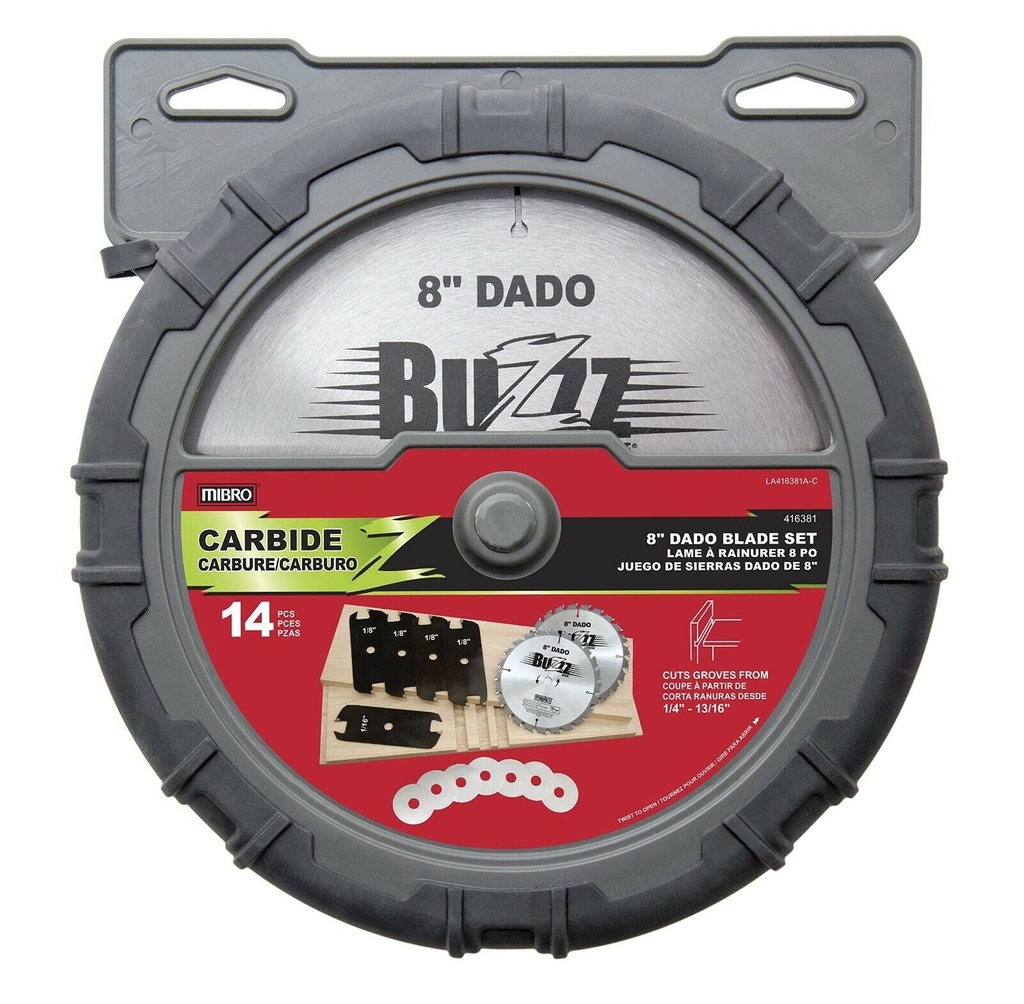

MIBRO 416381 8" Carbide Stacking Dado Blade Set - 14 Pieces *Genuine*
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
- Cuts smooth and precise grooves with clean edges, square shoulders and flat bottoms
- Set includes two 8" outer blades, five two-wing chippers and seven metal shims for fine adjustments
- Slot widths range from 1/4" to 13/16", in 1/16" increments
- Carbide tooth blades and chippers feature negative hook angles to make flat bottom grooves that are smooth and virtually splinter-free
- Durable case has internal dividers to keep all of the components safe and secure
Product description
14-Piece 8-Inch Carbide Stacking Dado Blade Set (416381)
MIBRO's 8" Stacking Dado cuts clean edges, square shoulders and flat bottoms. Use the Dado to cut smooth and precise flat-bottomed grooves, either across or with the grain in all types of wood, plywood and composite wood materials. It's ideal for the DIY, home or woodworking enthusiast, and light professional user. Cut grooves ranging in width from 1/4" to 13/16", increasing in 1/16"" increments. Can make a variety of different cuts, including Dado, Groove, Rabbet, Fillet, and Mortise & Tenon.
Blade Technology
For both the outside blades and the chippers, each tooth is electronically welded onto the blade body by fully-automated equipment from Germany. This ensures exact, centered placement and the correct amount of brazing material. Extra large carbide teeth make for longer lasting blades and overall life. Premium carbide helps to ensure the carbide does not chip or fracture easily.
8" Outside Cutting Blades
The two outside cutting blades have an 8" diameter with 24 carbide teeth. Both blades have a tooth pattern of 5 beveled cutting teeth, followed by 1 straight raker tooth. The anti-kickback tooth profile prevents the blade from being fed material too quickly.
5 Chipper Blades
Set includes one (1) 1/16" Chipper and four (4) 1/8" Chippers. Each Chipper Blade features two extra-large carbide teeth, which are also electronically welded onto the blade body by fully-automated equipment from Germany. The Chipper Blades are ground on the same equipment, at the same time, as the Outside Blades. This ensures that all of the blades together will cut a flat-bottomed groove.
7 Metal Shims
Use the seven included metal shims for fine adjustments to the overall width of the Dado setup. Shim widths range from 0.004" to 0.096". All of the shims have a 3-5/32" diameter and 5/8" arbor hole.
From the manufacturer
8" Stacking Dado Set.
MIBRO
Trusted Quality Since 1946.
For more than 70 years, The MIBRO Group has been a major supplier of quality hardware products for the Do-It-Yourself and Industrial markets across North America.
MIBRO is a recognized leader of branded and private label programs in three specific categories: Power Tool Accessories (MIBRO & MIBRO Industrial), Chain, Rope and Accessories (KingChain & KingCord), and specialty clamping and woodworking products under our wolfcraft brand.
MIBRO 8" Stacking Dado Set (416381)
Clean Edges, Square Shoulders & Flat Bottoms
MIBRO's 8" Stacking Dado cuts a smooth and precise flat-bottomed groove, either across or with the grain in all types of wood, plywood and composite wood materials.
This set can cut grooves ranging in width from 1/4" to 13/16", increasing in 1/16" increments.
Use the Dado to make a variety of different cuts, including Dado, Groove, Rabbet, Fillet, and Mortise & Tenon.
- Dado Set Contents - 14 Pieces Total
- (2) 8" x 24" Carbide Saw Blades
- (1) 1/16" Chipper Blade
- (4) 1/8" Chipper Blades
- (7) Metal Shims
- Instruction guide included
- Durable and compact case included
Features at a Glance
|
|
|
|
|---|---|---|---|
8" Outside Cutting BladesTwo blades: 8" diameter. 24 Carbide Teeth. 5/8" Arbor Hole. 5,000 Max RPM. Both blades have a tooth pattern of 5 beveled cutting teeth, followed by 1 straight raker tooth. Anti-kickback tooth profile prevents the blade from being fed material too quickly. |
Blade TechnologyEach tooth is electronically welded onto the blade body by fully-automated equipment from Germany. This ensures exact, centered placement and the correct amount of brazing material. Extra large carbide teeth make for longer lasting blades and overall life. Premium carbide helps to ensure the carbide does not chip or fracture easily. |
5 Chipper Blades(1) 1/16" Chipper. (4) 1/8" Chipper. Each Chipper Blade features two extra-large carbide teeth, which are also electronically welded onto the blade body by fully-automated equipment from Germany. The Chipper Blades are ground on the same equipment, at the same time, as the Outside Blades. This ensures that all of the blades together will cut a flat-bottomed groove. |
7 Metal ShimsWidth ranges from 0.004" to 0.096". 3-5/32" Diameter. 5/8" Arbor Hole. Shims allow for very fine adjustments to the overall width of the Dado setup. |
Dado Configuration Table
Use this table to identify which configuration of chippers you'll need to cut the correct width for your project.
|
|
|
|---|---|---|
Clean Edges, Square Shoulders & Flat Bottoms. |
The Dado in Action. |
Outside Cutting Blade Tooth Configuration8" x 24 Teeth. 5 Beveled Teeth, followed by 1 Flat-Top Raker Tooth. |
