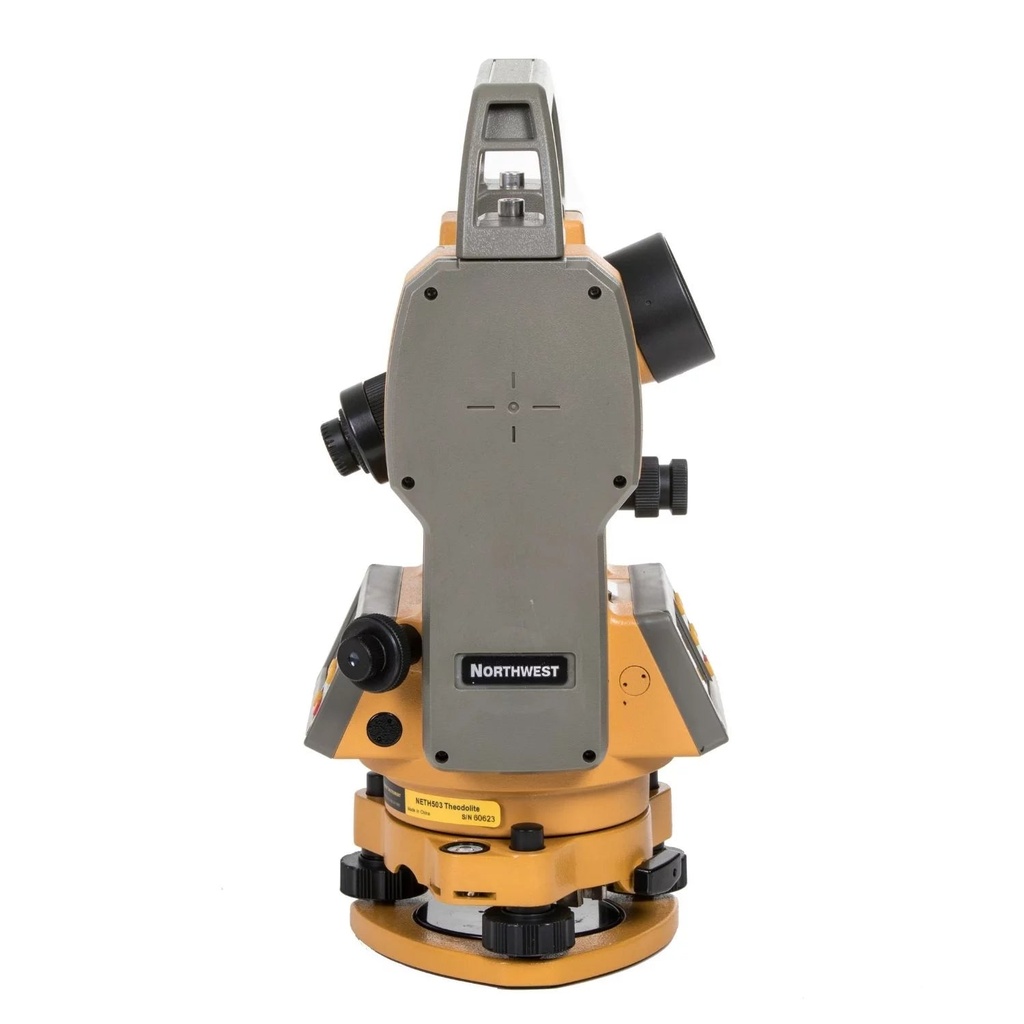

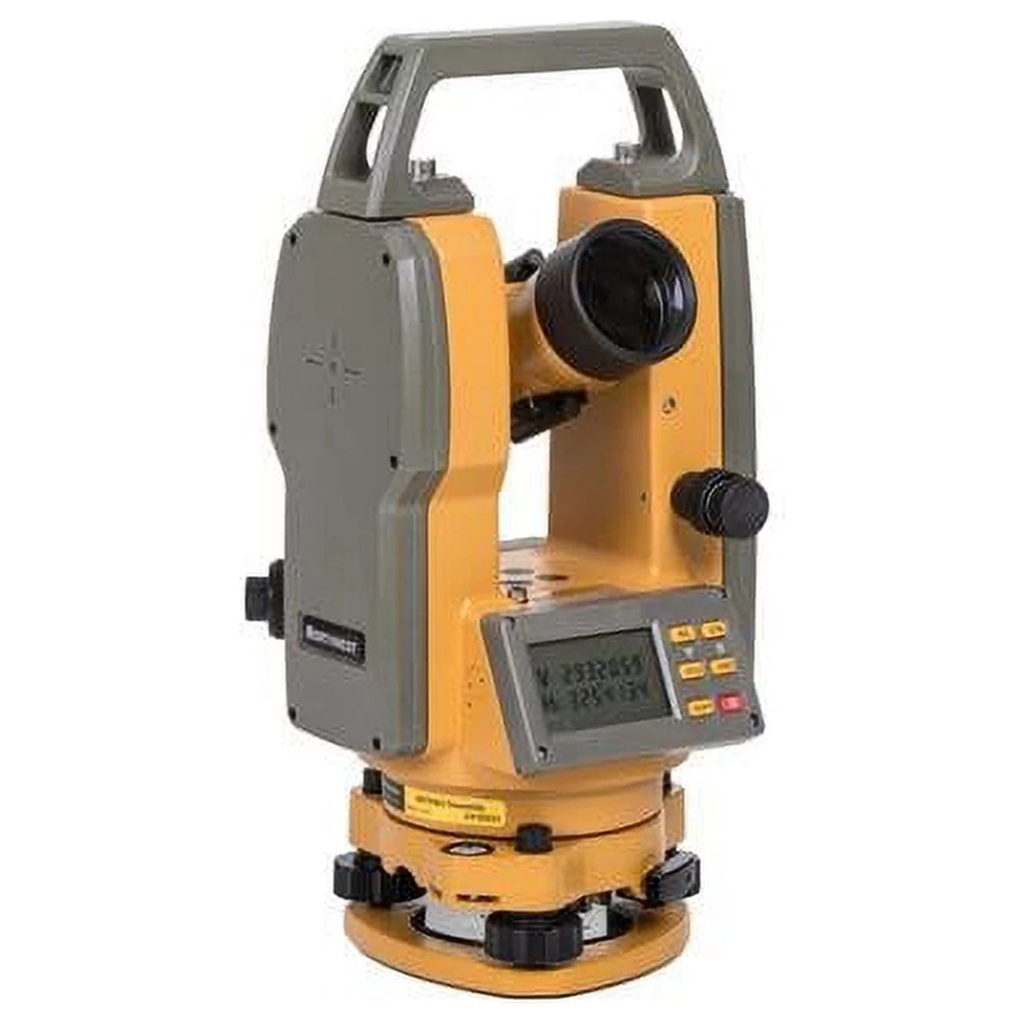

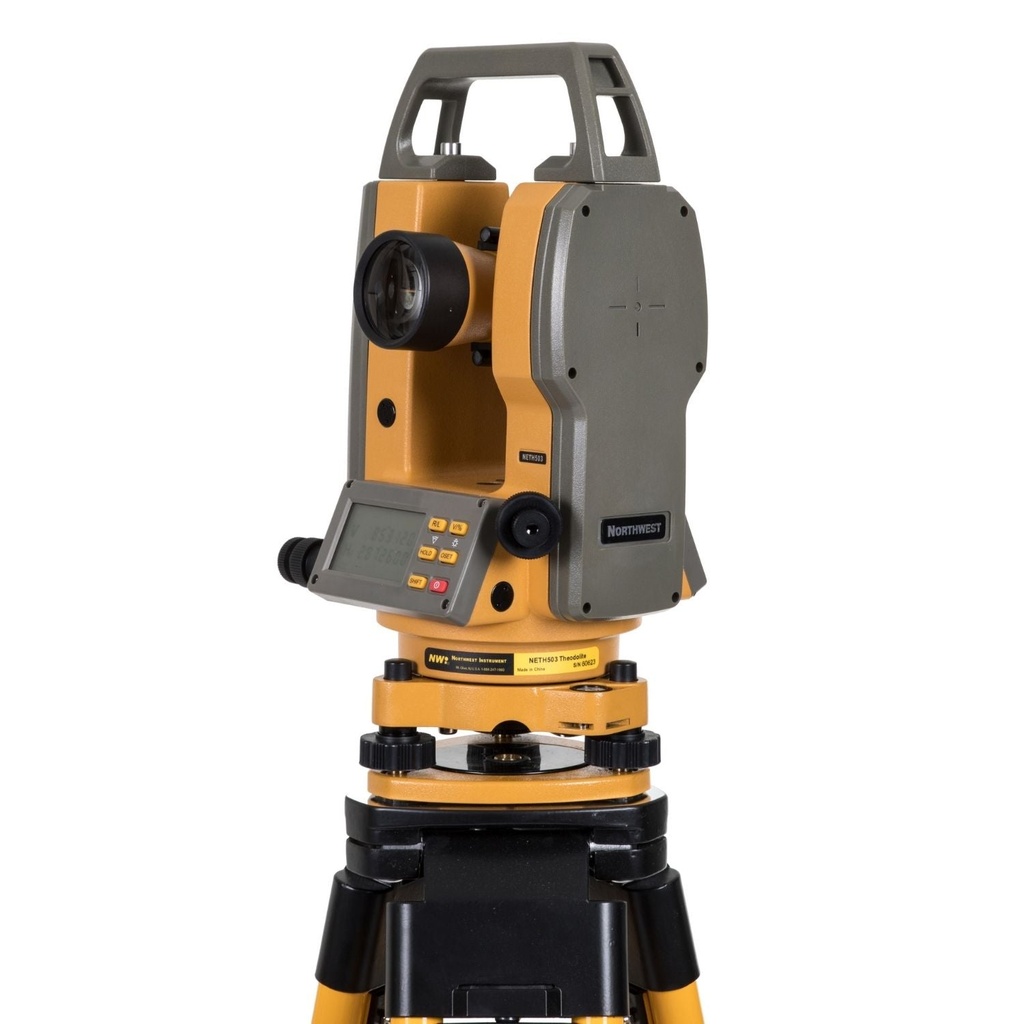

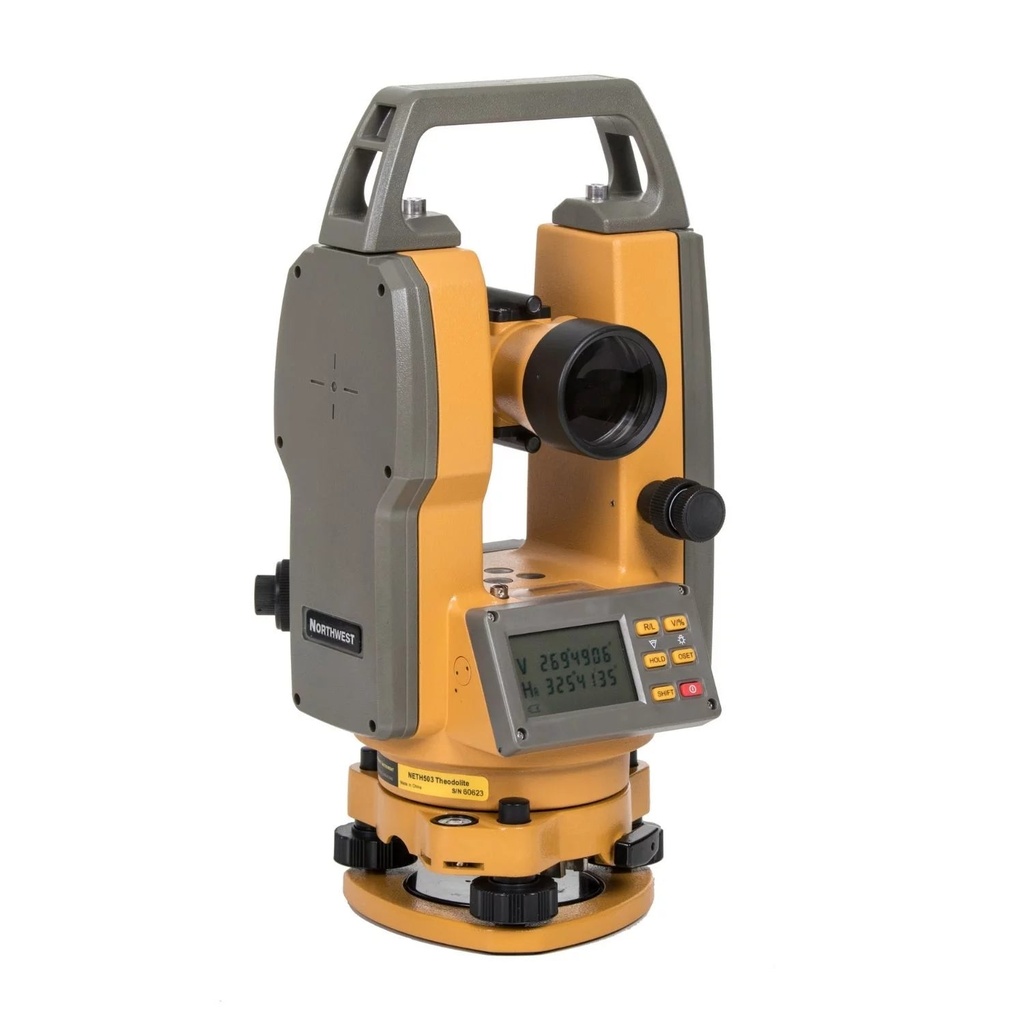

Northwest Instrument NETH503 5-Second Digital Theodolite

Northwest Instrument 5-Second Digital Theodolite

Model Number: NETH503

With a five-second angular accuracy, the Northwest Instrument 5" Digital Transit-Theodolite (5 Second Accuracy) is capable of precisely measuring angles in horizontal and vertical planes. For a more accurate measuring experience, it features a four-second resolving power and an advanced glass encoder. Plus, this survey tool's telescope gives a 30x magnification.

This Northwest survey tool uses an optical plummet and has an aperture of 1.8 inches that ensures the most precise and reliable measurements. It has an integrated tilt sensor that monitors shifting and errors in vertical angles. Also, the reticle illumination allows working under low light conditions. In addition, data transfer is easier with the RS232C serial port.

Using four rechargeable alkaline batteries, this instrument operates up to 40 hours with continuous use. It also has a Dual LCD display for quick and easy digital readout of both horizontal and vertical angles. In addition, it backed-up with one-year manufacturer's warranty.

Features

• Features photoelectric incremental encoding to insure the most precise measurements.
• Both horizontal and vertical angles can be measured and digitally displayed on the dual-sided LCD displays.
• The telescope features erect imaging
• Aperture of 45mm
• 30X magnification
• 4-second resolving power
• Stadia ratio of 1:100.
• Angle measurement has a minimum reading of 5" and 360 degree measurement unit.
• Angle measurement accuracy is 5".
• 30x telescope with illumination, glass encoder, digital readout, dual-side LCD display, optical plummet.
• 3 Year Warranty on Manufacturer Defects

What's Included

• Alkaline batteries
• Carrying case
• Tool kit
• Plumb bob
• User manual

• 5-Second Digital Theodolite
• NETH503 is a digital Theodolite capable of precisely measuring angles in horizontal and vertical planes
• It integrates the same advanced glass encoder from our total stations
• It Provide 5 angular accuracy, dual back-lit LCD screens for easy readouts, and a full array of parameter settings for versatile usage

• Image: Erect
• Weight: 9 lbs
