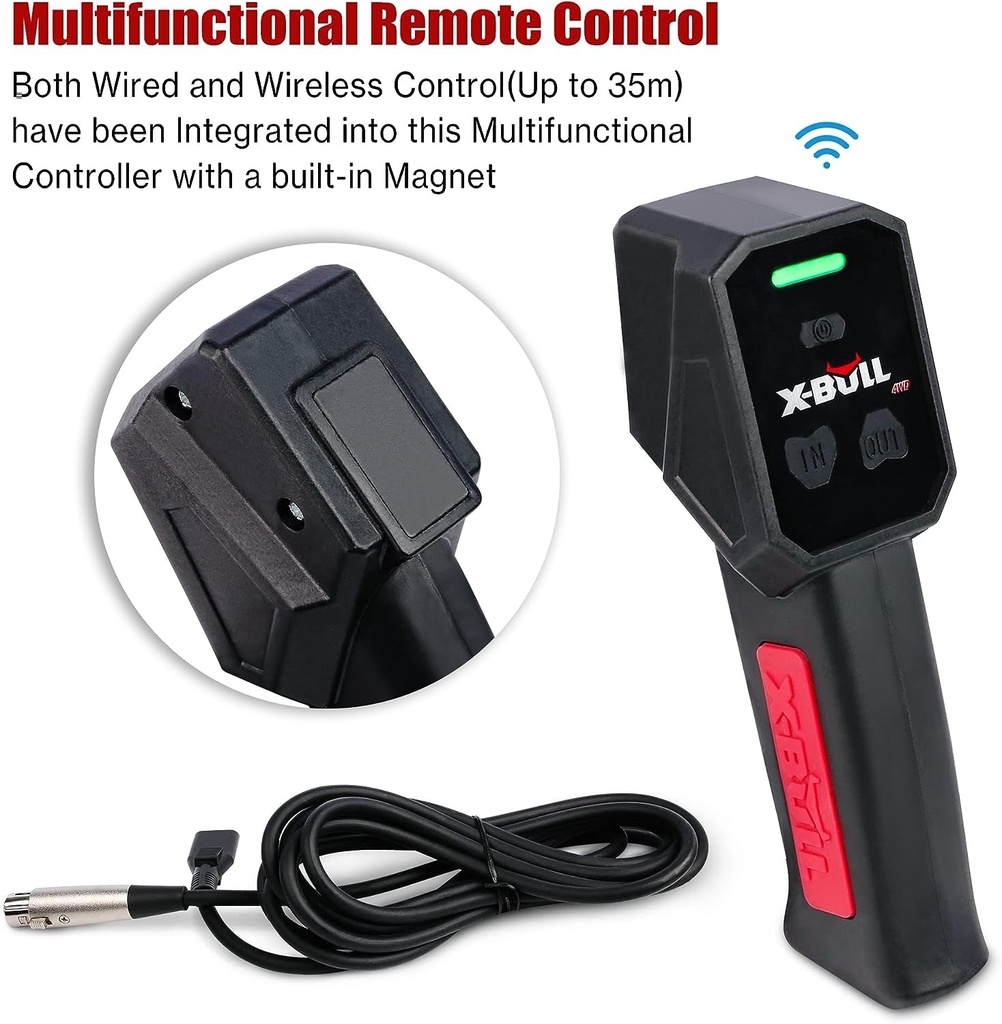

- [Features] Our winch has a new generation of wireless remote control, with an IP67 waterproof grade, that can operate accurately from a distance regardless of terrain or weather. This versatile controller incorporates wired and wireless control (up to 35m)
- [Electric Winch] The 13500 lb. winch powered by a 4.5kw/6.0hp output permanent magnet DC 12V motor. The new solenoid successfully implements the principles of heat insulation, toughness, high stability, avoid the problem of capstan damage or motor burning caused by insufficient solenoid power. The connection between the clutch and the gear is strengthened by the new clutch system, making it more difficult to damage the clutch.
- [Safety] For positive load control, there is a Power in & Power out motor. The powerful current can not only support the motor's operation smoothly and work within its rated current without any current impact, but also ensure the electric winch safety and your safety at all times. A 3 stage, 6.0 HP series wound motor comes with a 265:1 planetary gear ratio.
- [Gear System] With its modern and effective 3 planetary gear system, free spooling clutch and ability to deliver strong traction under load and higher linear speed, this electric winch will prove to be an invaluable travel companion.
- [Installation Dimensions] (length X width X height) 20.8"X 6.5" X 10.2", mounting bolt type: 10.00 ± 0.015" × 4.50 ± 0.010". Synthetic rope: 3/8"x 82feet.
Product Description

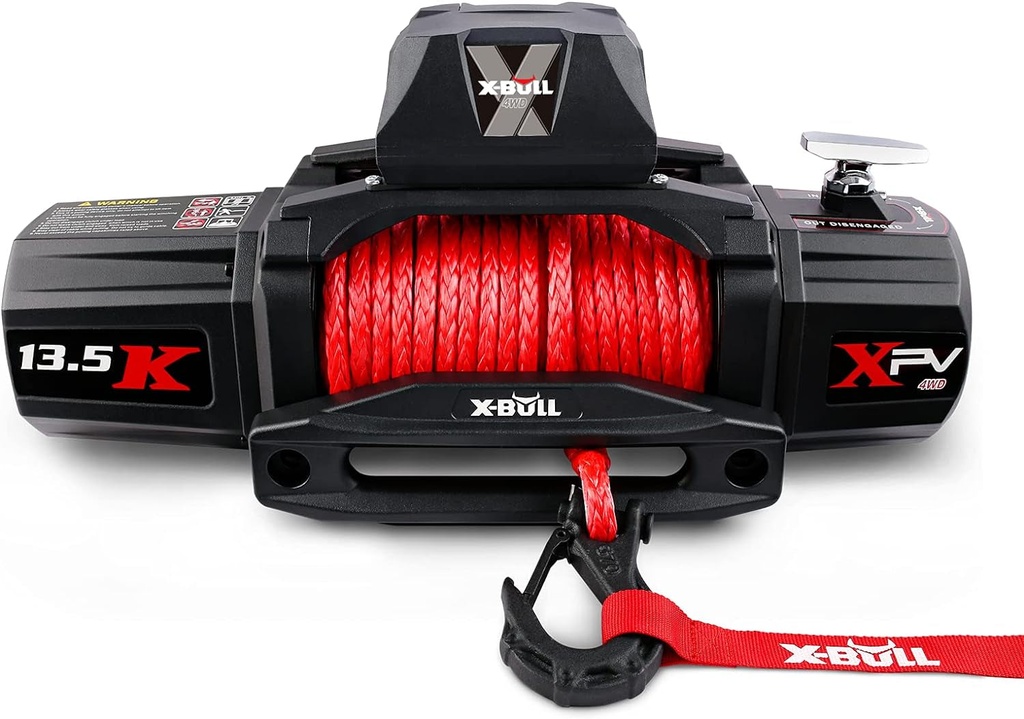

X-BULL 12V Synthetic Rope Electric Winch
Three-stage Planetary Gear System/Super Big Power,High Tensile Synthetic Cable/Power In & Power Out Motor for Positive Load Control/Braker for Maximum Safely
Free Spooling Clutch for Fast Wire Rope Payout/Heavy Duty Sealed Contactor/Wire/Wireless Remote Control Model for Easy Operation

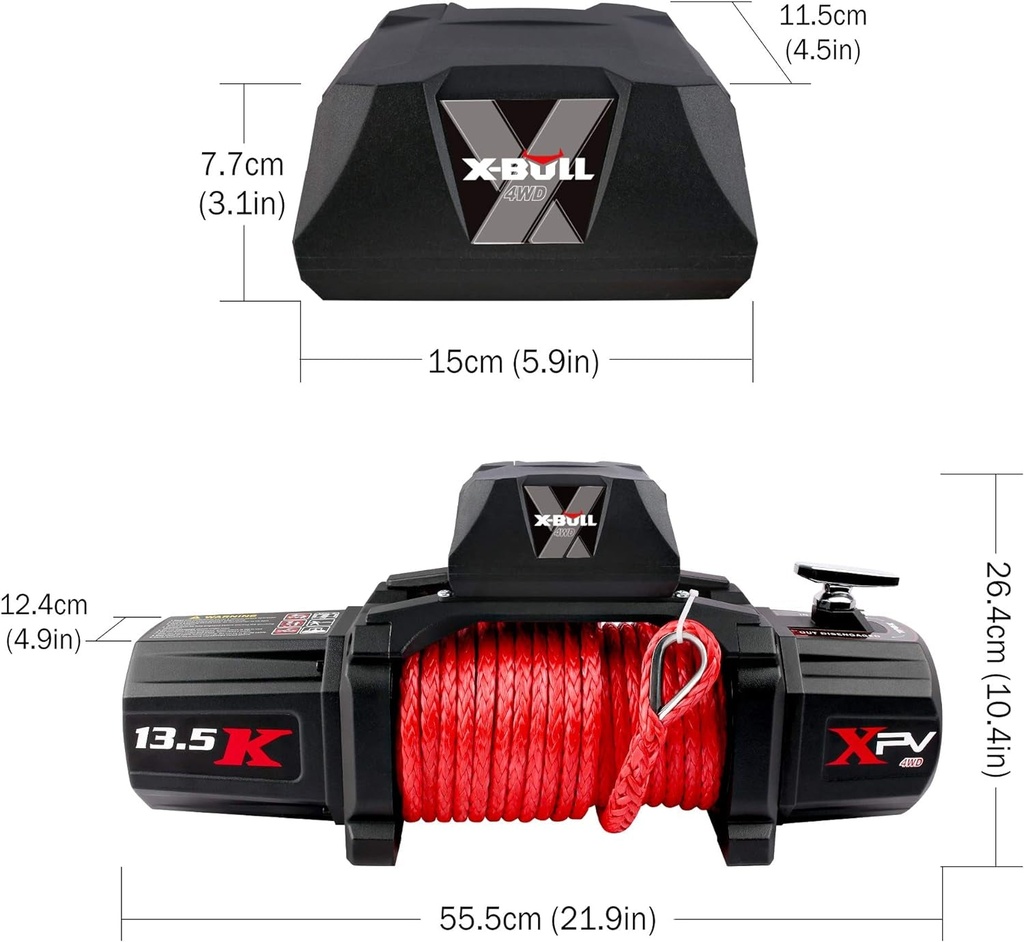

- Overall Dimensions(L X D X H):21.25″ X 6.3125″ X 10.125″ (540x160x257mm).
- Mounting Pattern:10″ x 4.5″ (254mm)
- Drum (Dia. X L):2.5″ X 9.6″ (64mm x 244mm)
-
HOW TO ACTIVE REMOTE CONTROL
When the green light is on, it is the wireless state
When the red light is on, it is the wired state
-
Match colors and secure
-
Open Protective Boot on Solenoid
Open Boot ,connect Wired Remote. Close Protective Boot when Wired Remote is not connected
-
Pure copper motors
Motor is powered by a 12v battery.High magnetic inductive melting poi-nt, powerful and safe
If Motor stalls, stop winching immediately. Electric winches Pull only on parts of vehicle as specified by vehicle manufacturer applications. Keep duration of winching pulls as short as possible: Do not use for more than 1 minute when at or near rated load. If Motor becomes hot to touch, stop winching immediately. Allow Motor to cool before resuming.
- Check tightness of all mounting hardware and electrical connections periodically.
- Keep Winch clean. Remove all dirt and corrosion as required.
- Do not disassemble Mechanical Gear System. High temperature lithium grease has been applied at the factory. No user maintenance is required.
Motor is powered by a 12 volt battery. When the winch is connected to the control box, make sure that the protective sleeves on the wires are in place. The wire must not touch any conductors to avoid short circuit
To pull out the rope, move the clutch handle to the released position, slide the loop of the hook strap over the hook,then pull on the hook to pull out the rope. Attention!：Leave at least five full turns of wire rope on the drum.
I only received the wired remote, the wired remote is missing.
Wired and wireless remote control is integrated.
Motor runs but Winch Drum does not turn
Free Spooling Clutch not engaged.
Motor does not turn on
Rocker Switch not connected properly/Loose battery cable connections./Defective Rocker Switch./Defective Motor./Solenoid sticking.
Motor overheating.
Winch run time too long.
X-BULL series winches
13,500 lbs | Rated Line Pull: | 10,000 lbs |
2 in 1 remote | Controls: | Remote switch |
0.375″ X 85′ | Rope: | 0.375″ X 78′ |
12V DC, series wound | Motor: | 12V DC, series wound |
Automatic mechanical | Brake: | Automatic mechanical |
218：1 | Gear ratio: | 265:1 |
13,500 lbs | Rated Line Pull: | 10,000 lbs |
2 in 1 remote | Controls: | 2 in 1 remote |
0.375″ X 85′ | Rope: | 0.375″ X 85′ |
12V DC, series wound | Motor: | 12V DC, series wound |
Automatic mechanical | Brake: | Automatic mechanical |
218：1 | Gear ratio: | 218：1 |
13,500 lbs | Rated Line Pull: | 10,000 lbs |
2 in 1 remote | Controls: | 2 in 1 remote |
0.375″ X 85′ | Rope: | 0.375″ X 85′ |
12V DC, series wound | Motor: | 12V DC, series wound |
Automatic mechanical | Brake: | Automatic mechanical |
218：1 | Gear ratio: | 218：1 |
13,500 lbs | Rated Line Pull: | 13,500 lbs |
2 in 1 remote | Controls: | 2 in 1 remote |
0.375″ X 85′ | Rope: | 0.375″ X 92′ |
12V DC, series wound | Motor: | 12V DC, series wound |
Automatic mechanical | Brake: | Automatic mechanical |
218：1 | Gear ratio: | 216：1 |
