Wire Crimpers Engineering Ratcheting Terminal Crimping Pliers Wire Strippers Bootlace Ferrule Crimper Tool Cord End Terminal Kit

With 5 interchangeable terminals with different crimping ranges.

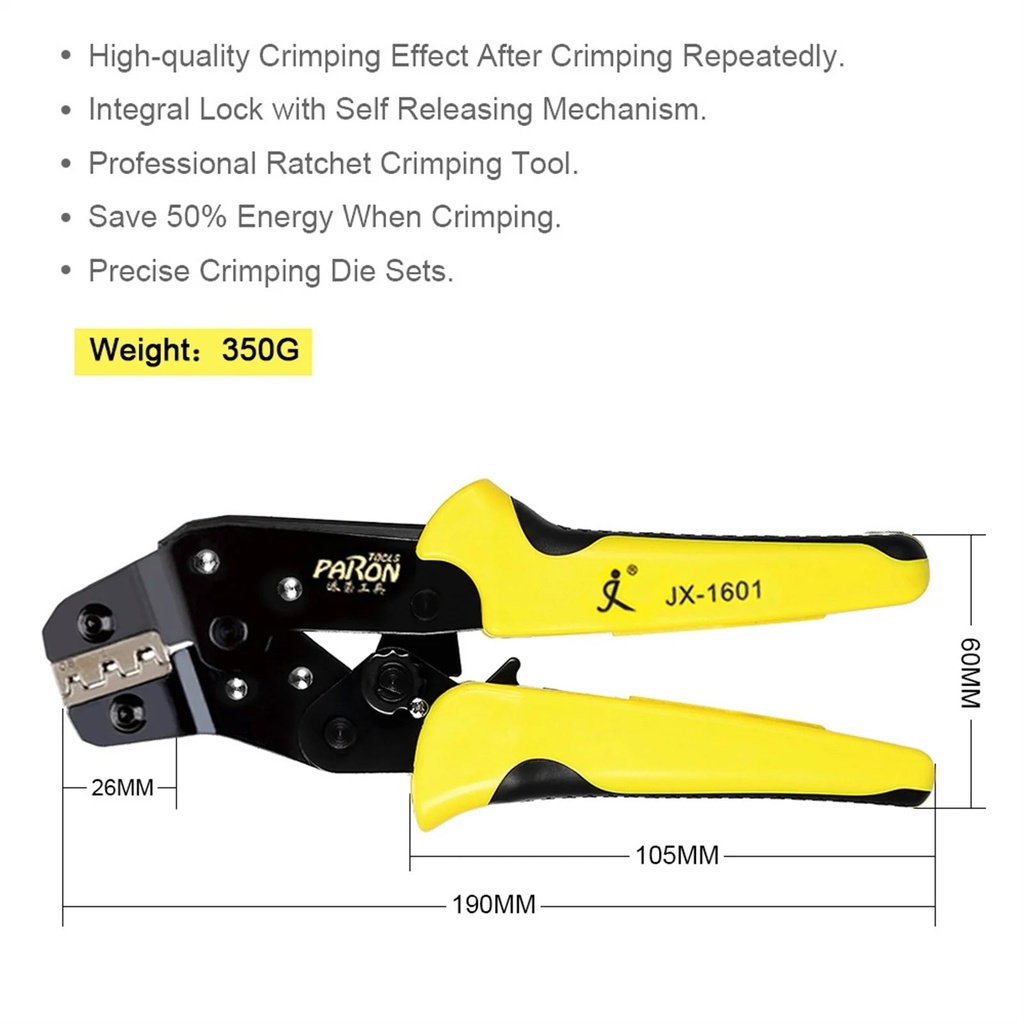

Professional wire crimper tool with self adjustable ratchet mechanism for easy operation.

Applicable to most of non-insulated crimp terminals and connectors.

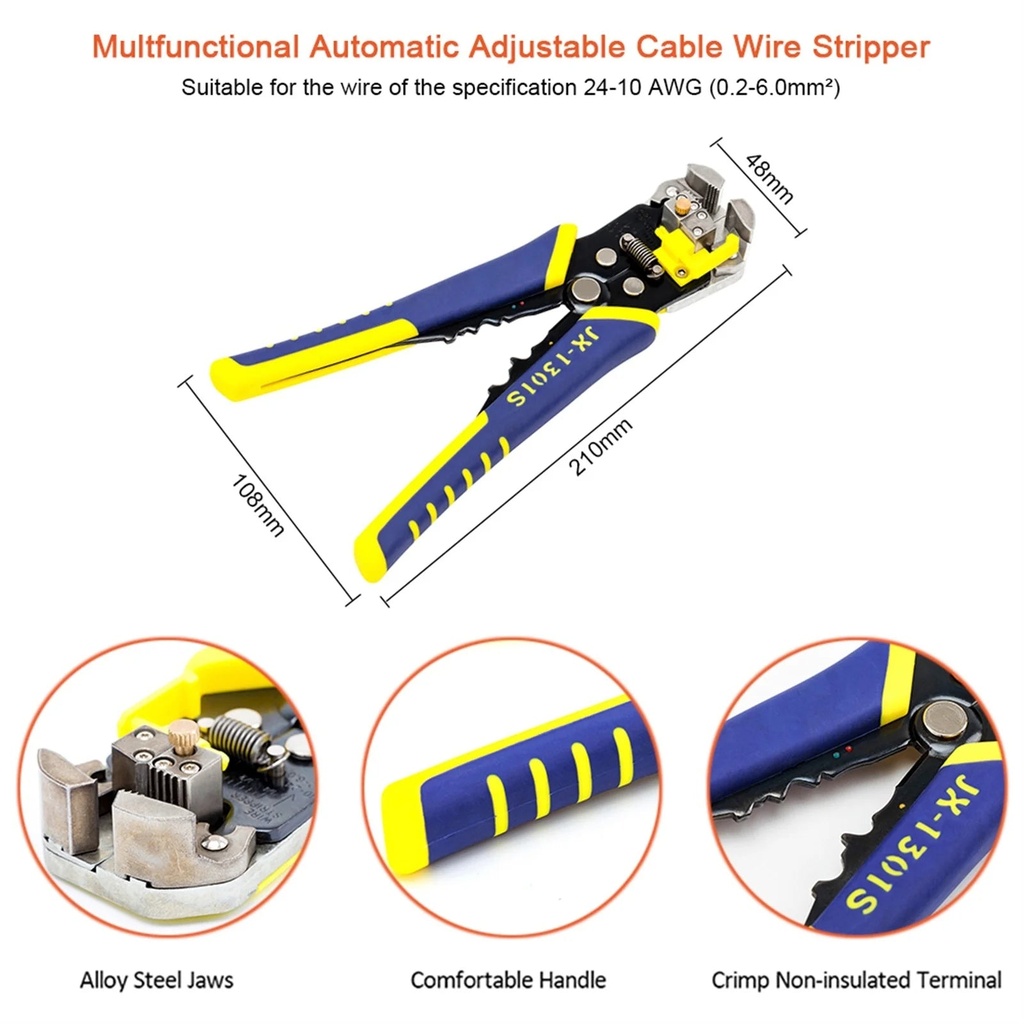

Multi-functional wire stripper with upgraded design and more comfortable handle for wires from 24 to 10AWG (0.2-6.0mm²).

Due to great handle grasping position, light and compact structure and handle design ensure perfect crimping effect.

Designed according to human factors engineering, it can save 50% energy when crimping.

Plastic tool box has surface waterproofing and is more suitable for carrying and long time storage.

• Specifications:
• Material: High-carbon Steel + Alloy
• Color: Yellow + Black

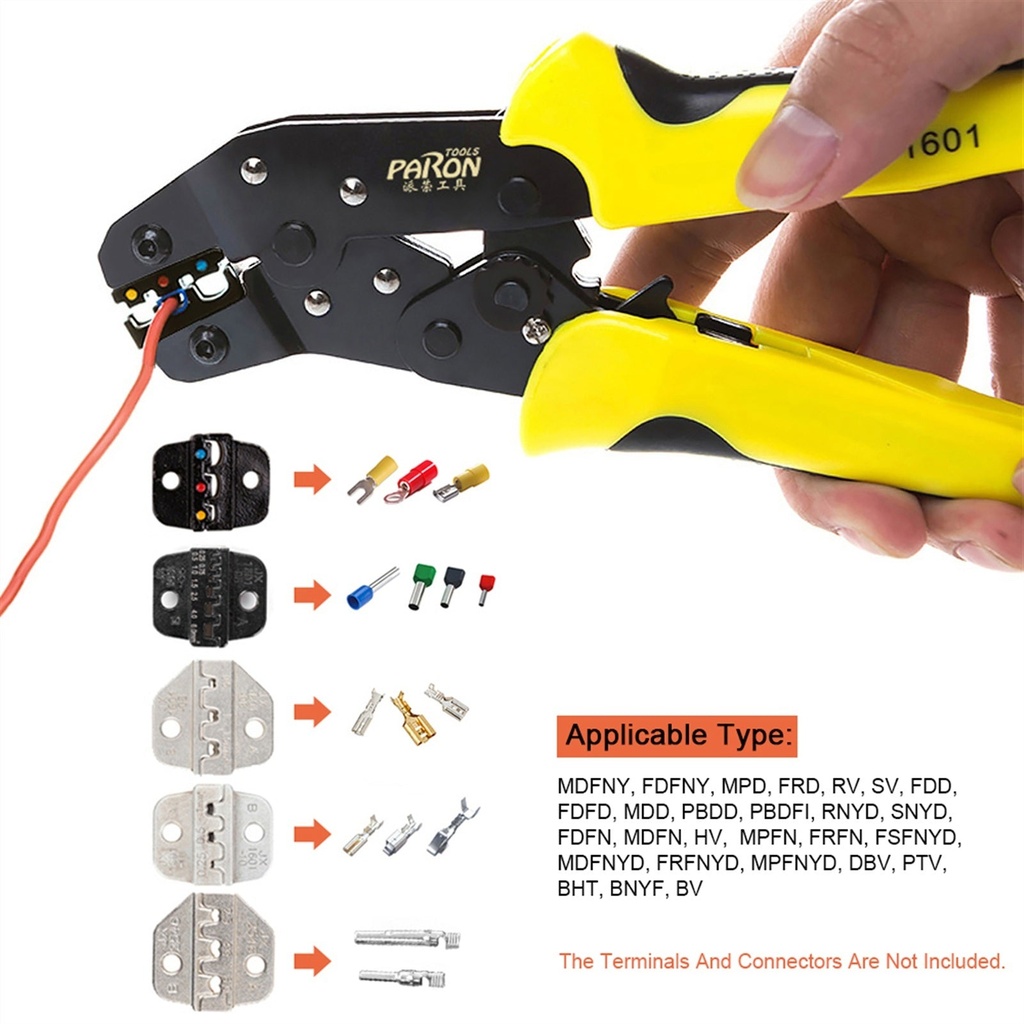

• Suitable Terminals &CrimpingRange of Wire Crimper:
• JX 1601-01: Color Code Nests + Insulated Terminals 24-14 AWG (0.25-2.5mm²)
• JX 1601-06: Cord End Terminals 24-10 AWG (0.25-6.0mm²)
• JX 1601-08: Non-insulated Open Barrel Connector 26-16 AWG (0.14-1.5mm²)
• JX 1601-10: Non-insulated Open Barrel Connector 28-18 AWG (0.1-1.0mm²)
• JX 1601-2546: M-C-4 Solar Connector Terminals 14-10 AWG (2.5-6.0mm²)
• Stripping Range of Auto Wire Stripper: 24-10 AWG (0.2-6.0mm²)
• Wire Crimper Size: Approx. 190 * 80 * 20mm / 7.48 * 3.15 * 0.79in
• Wire Crimper Weight: Approx. 348.5g / 12.29oz
• Auto Wire Stripper Size: Approx. 210 * 108 * 28mm / 8.27 * 4.25 * 1.10in
• Auto Wire Stripper Weight: Approx. 316g / 11.15oz
• Package Size: Approx. 23.5 * 18.5 * 4.5cm / 9.25 * 7.28 * 1.77in
• Package Weight: Approx. 1010g / 35.63oz
• Note: Please notice the anastomosis direction of dies and terminal when operation, otherwise the die will be burst open.

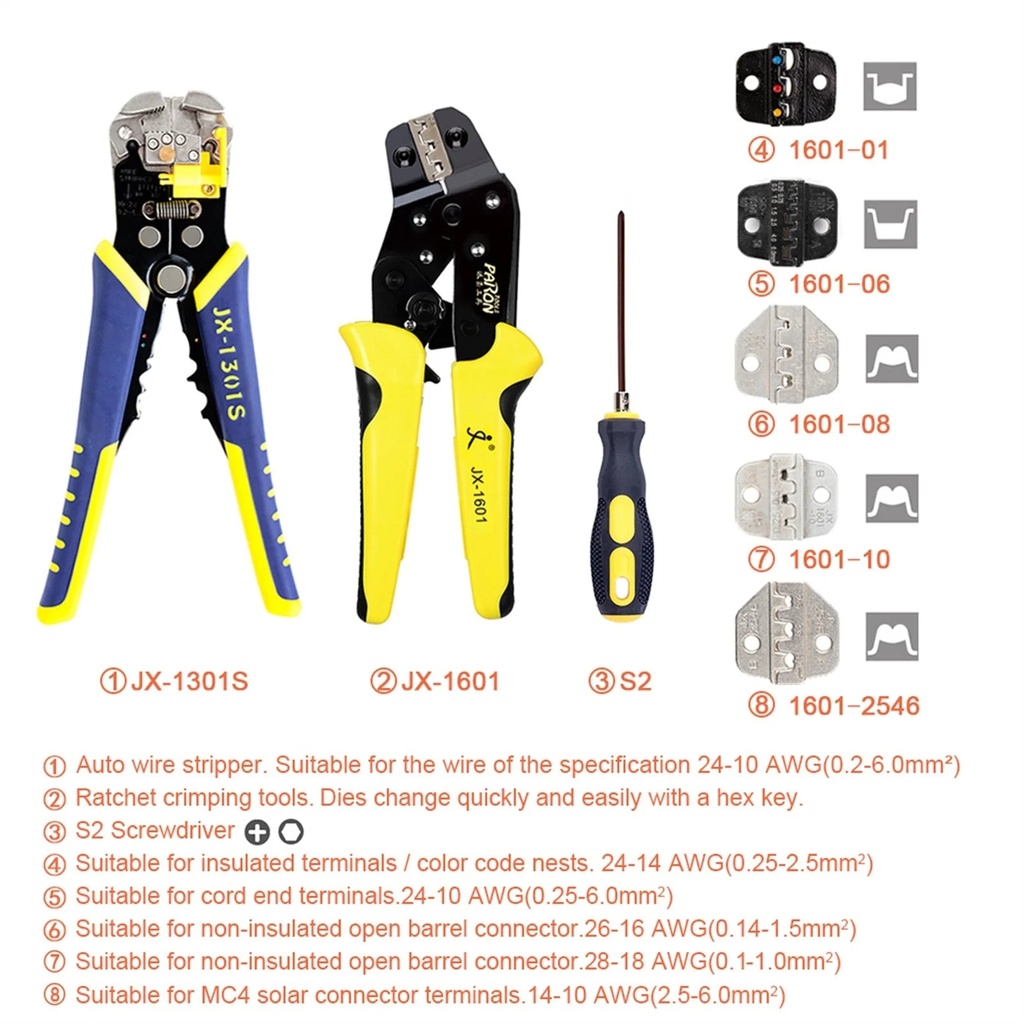

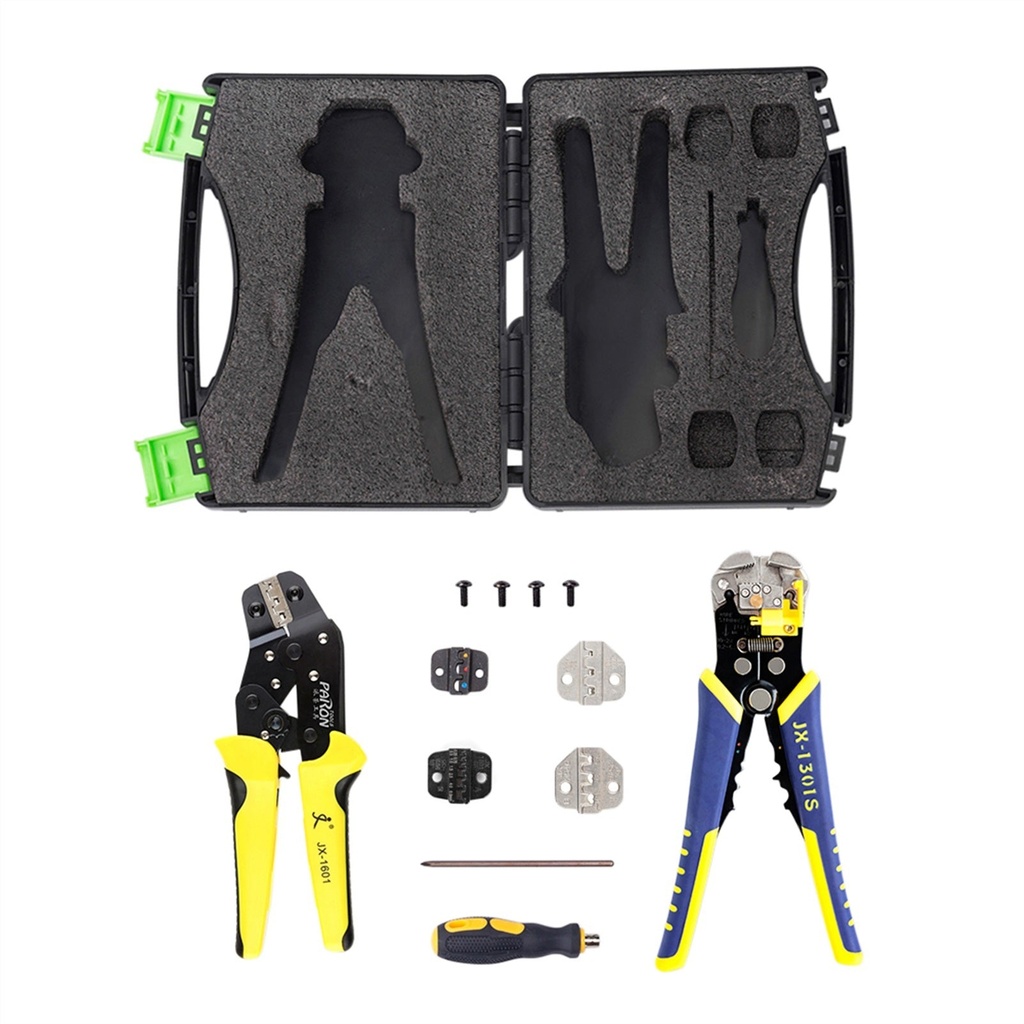

• Package List:
• 1 * JX-1601 Wire Crimper
• 1 * JX-1301S Auto Wire Stripper
• 1 * S2 Screwdiver
• 4 * Spare Dies
• 4 * Screws
• 1 * Tool Box
