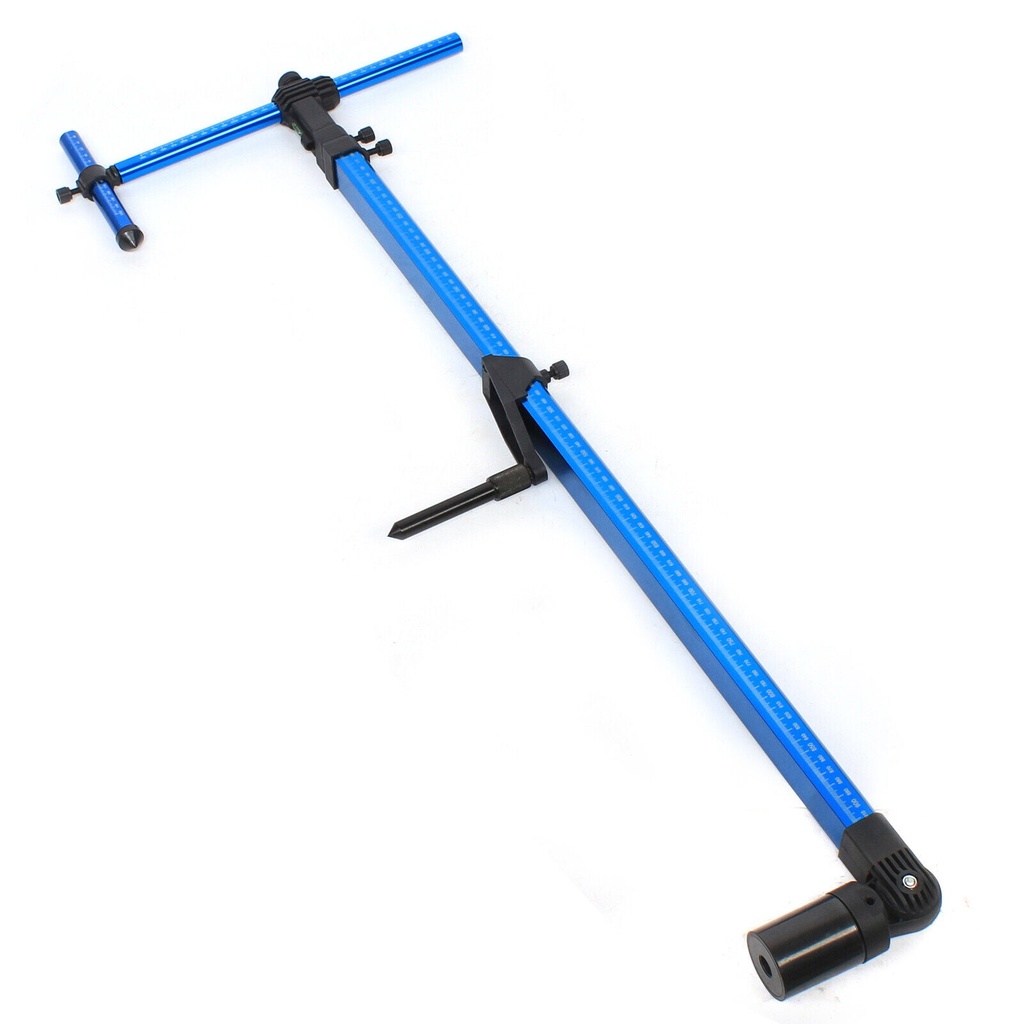

Universal High Precision Auto Body Frame Machine 2D Measuring System Tram Gauge Perfect Solution for Auto Body Frame Repair Tool

Superiority

The high-precision measuring ruler is designed and manufactured for the purpose of improving the accuracy and convenience of testing and measurement in the repair of accident vehicles.

Usage

1. When measuring small size within 900mm, no drawing measuring rule is required. Use slide rule according to the position of the ranging point.

2. The level (in the level of the level display) shows the measurement. The measurement reading is read on the slider.

3. When measuring a size of about 1800 mm, the inner rod that is stretched out and stretched is used, and measured according to the level displayed by the level. The measurement reading is read on the slider holder. Smoothly pull the ruler during the measurement (in the level of the level display).

4. The vertical ruler is directly at the measuring point, adjustable up and down, and is screwed to the vertical position to maintain the level (in the level of the level display).


Features:

1. High precision, measurement error is less than 1mm

2. Aluminum alloy material, high strength, small size, light weight, one person can complete measurement independently

3. It can also be 3D measuring with the adapter connectors

Specification:

Product size (with aluminum box): 102×20×10cm/ 40.15×7.87×3.9"

Material: Aluminum alloy

Color: Blue-black

Measuring range:

X axis: 200mm~2250mm/ 7.87-88.6"

Y axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4"

Z axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4"

Package size: 104×20×10cm/ 41×7.87×3.9"

Gross weight: 3.8kg

Note:

1.☆ Please read the instructions before use to ensure that the measuring rule can be used correctly.

2.☆This product is made of aluminum alloy. Please handle with care when using. It is strictly forbidden for heavy objects to touch.

3.☆ Do not touch fire, rubber water, asphalt waiting for corrosive substances. If you accidentally touch a liquid such as paint, immediately rinse it off with a small amount of water and wipe the measuring ruler clean.

4.☆ The magnetic probe of this product is inclined after use. Do not pull it out vertically to avoid injury.

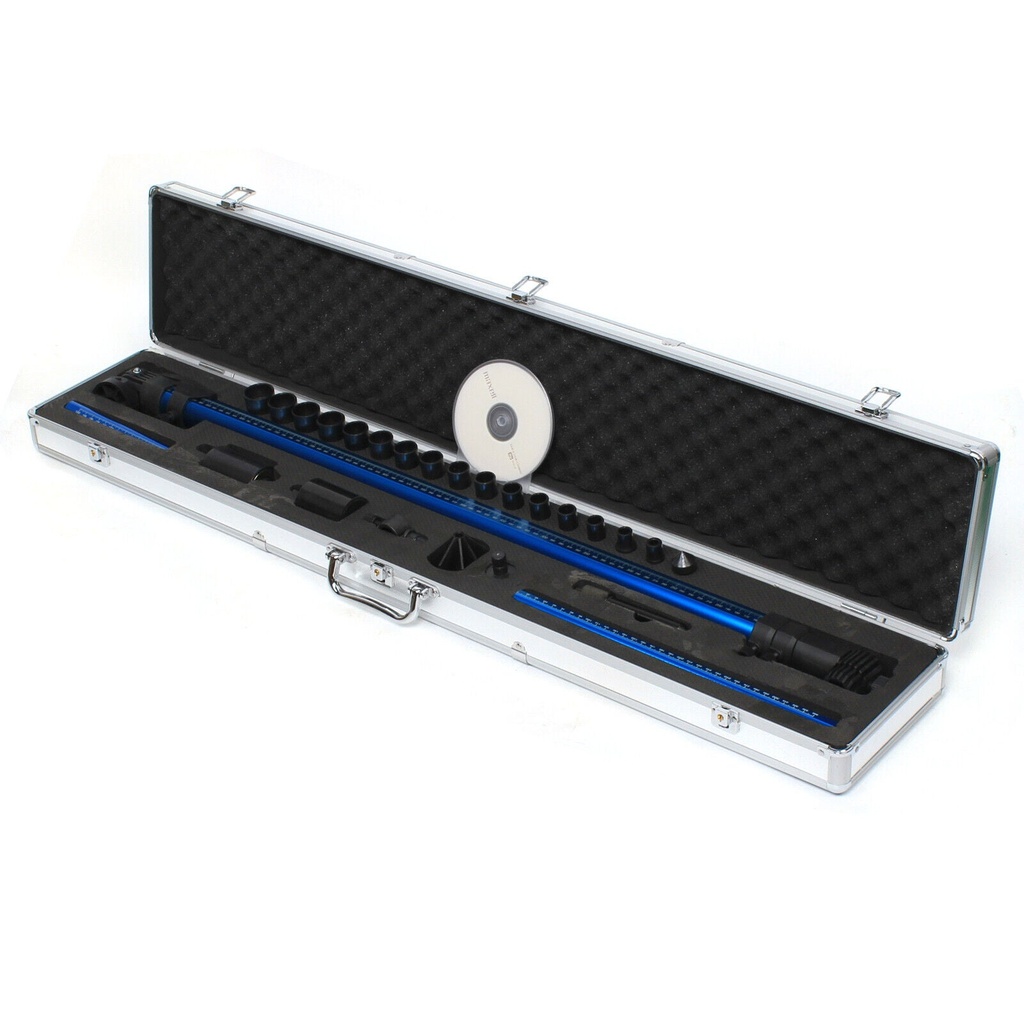

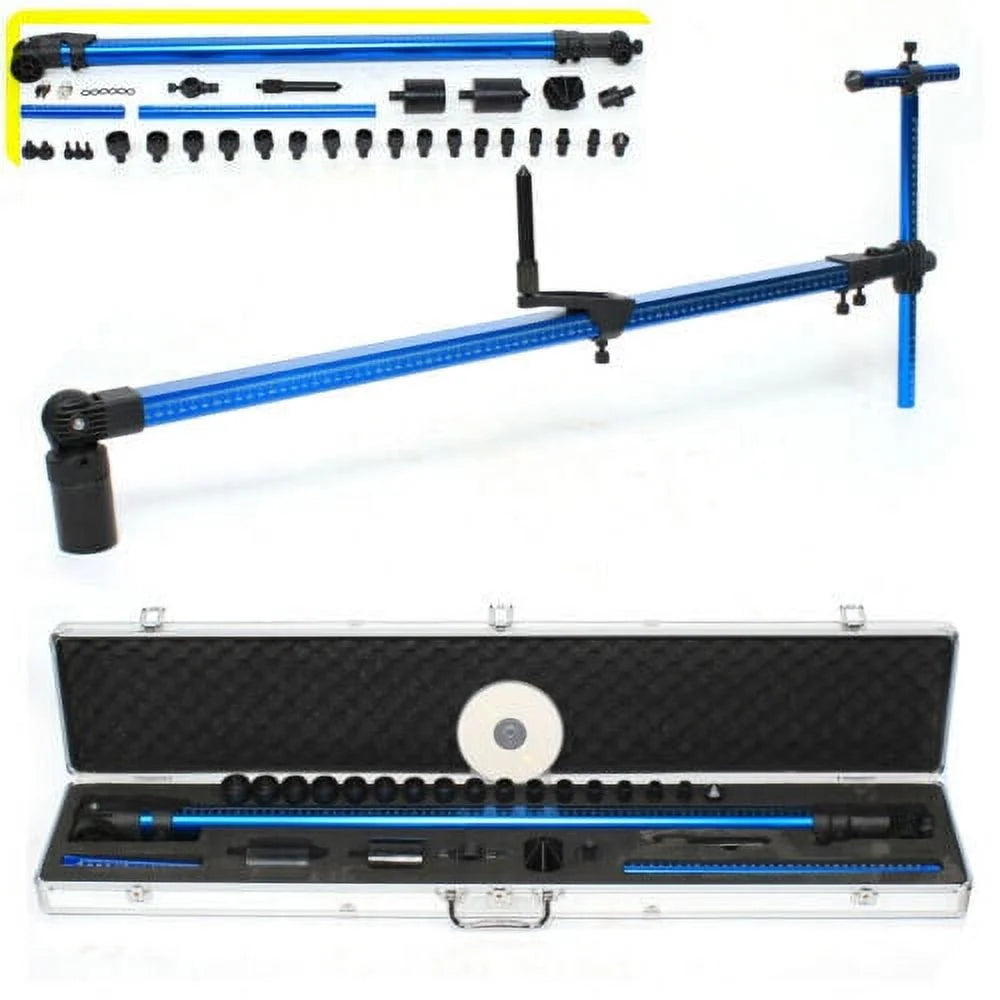

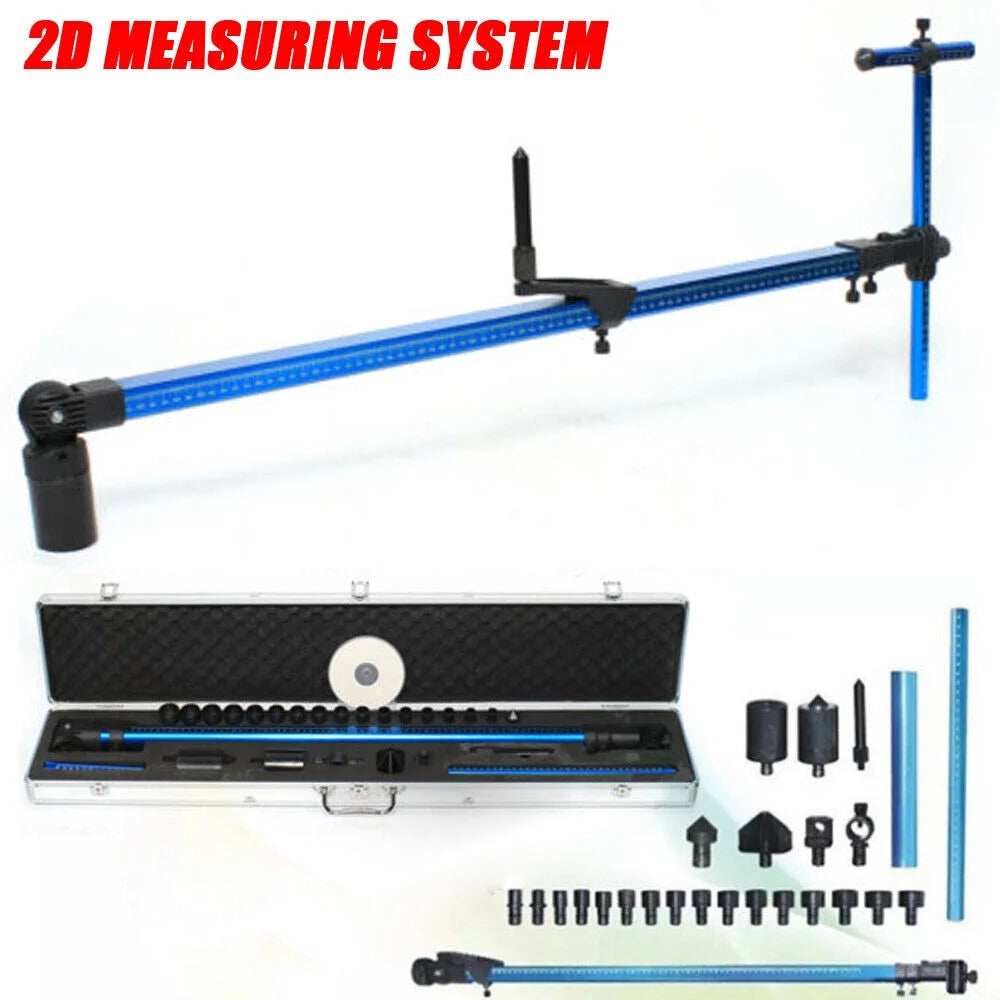

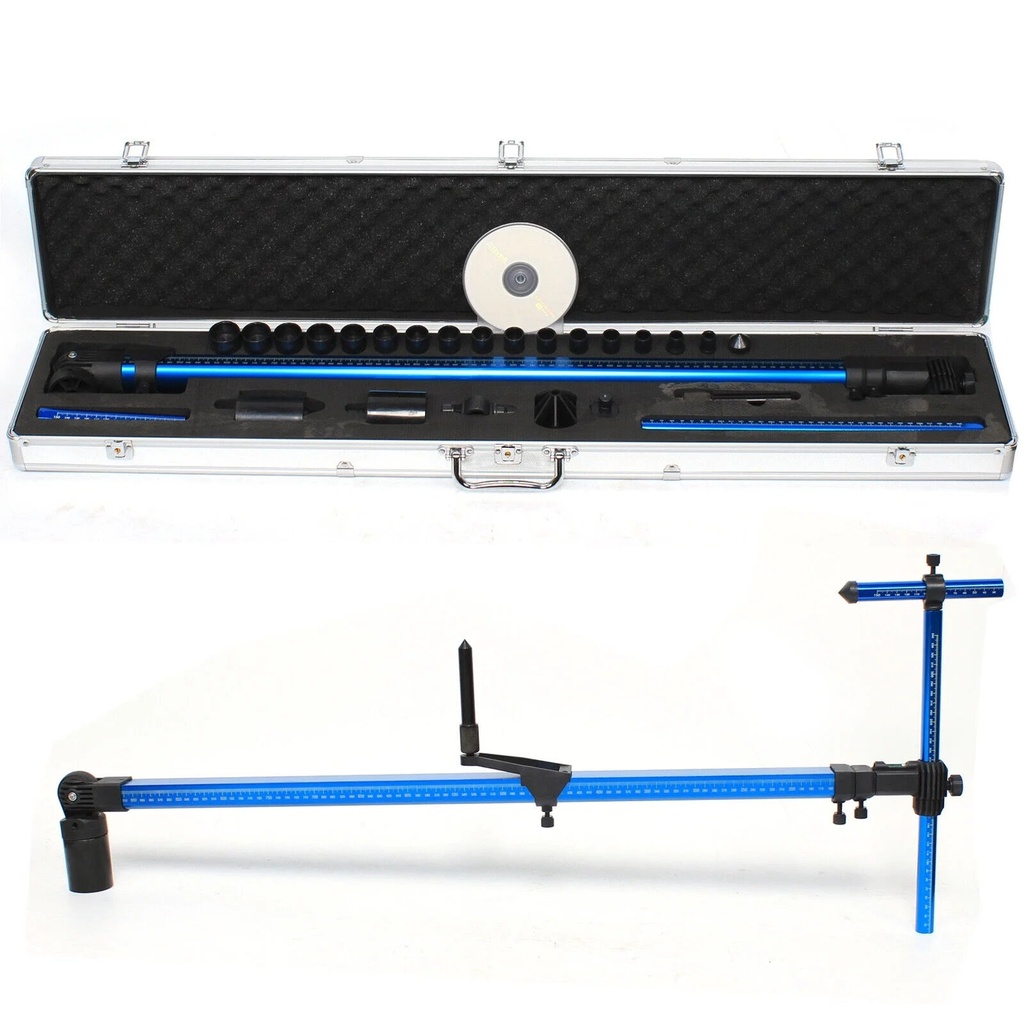

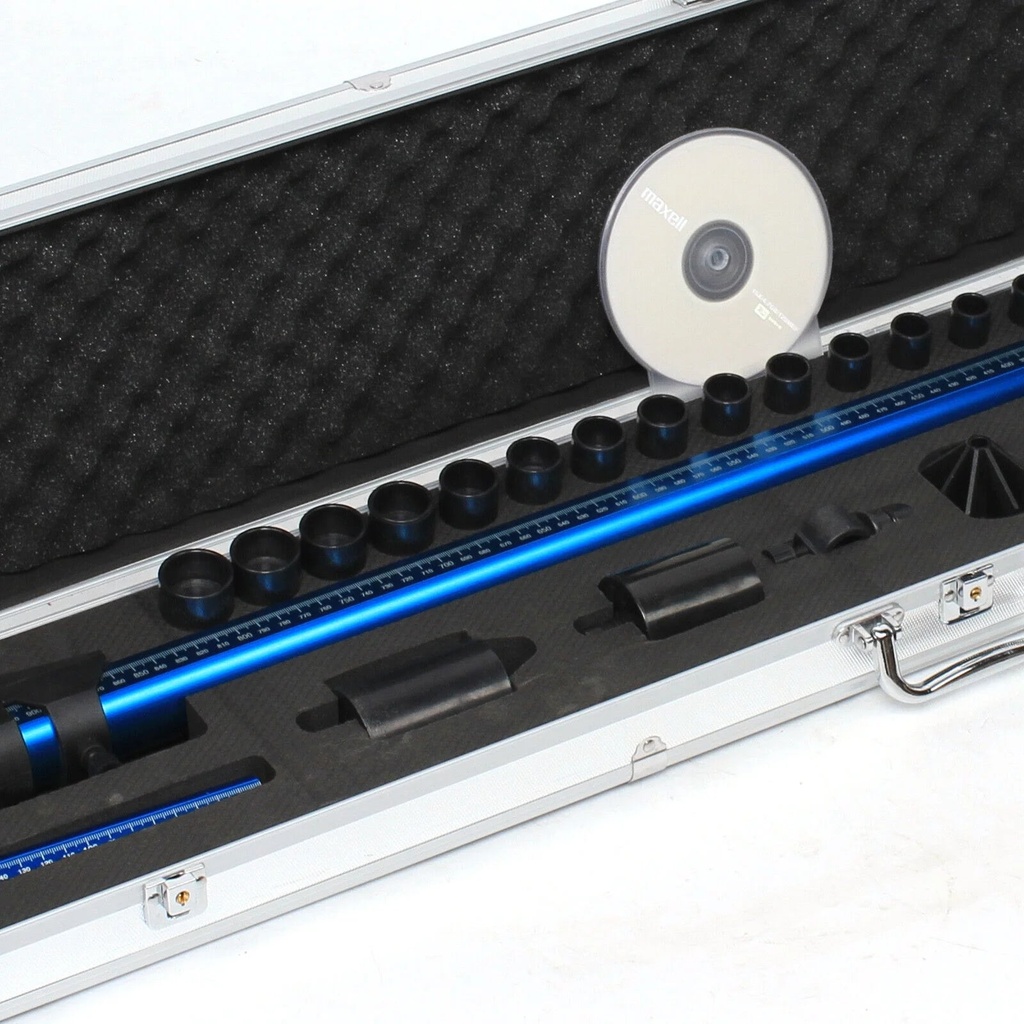

Packing List:

1. Main scale

2. 20-150mm scale

3. 20-340mm scale

4. Screw thread probe

5. Magnetic probe

6. Magnetic probe and lengthen base

7. 3D adapter

8. Large positioning probe

9. Longitudinal positioning probe

10. Small positioning probe

11. Size nut probe

12. English manual
