TOPENS ERM12 Universal External Receiver with 2 Remote Control Transmitters for Automatic Swing Sliding Gate Opener Garage Door Opener, Remote Operator Accessory for Outdoor Use
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
- Safe Connectivity - TOPENS ERM12 External Receiver effectively receives signals from TOPENS wireless access devices, such as remote control and keypad. It transmits signals to the gate opener, triggering the gate to open or close. With advanced TOPENS code technology, ERM12 establishes a reliable and secure link between the gate opener and remote control devices. In addition, the external receiver can be used to extend the operating range of TOPENS wireless control accessories.
- Pair up to 250 Remotes - Simple wire connection makes installation labor-saving. Just connect the ERM12 to the gate opener system. Program the M12 Remote Control (incl.) with ERM12 universal receiver, and then the M12 remote will make the gate operate between open-stop-close-stop-open. All TOPENS swing and sliding gate openers can be operated by the M12 remote. ERM12 rolling code external receiver can be programmed with up to 250 pcs TOPENS M12 remote control transmitters.
- Wide Compability - Works with all TOPENS gate openers, and is compatible with most third party gate opener or garage door opener whose control board accepts the "Normal Open Dry Contact" signal for the push button. It can be powered by the control board of the gate opener or by the external 9-24VDC power source. Kindly note that ERM12 receiver ONLY works with TOPENS wireless remote control accessories.
- Clever Design - The external receiver is suitable for household, courtyard, farm, ranch, warehouse and other commercial / industrial sites. Weather resistant for all seasons of the year. Made of high-quality UV-resistant, flame-retardant and durable materials, the waterproof receiver works in bad weather conditions. Please note that the ERM12 external receiver works with the gate / garage door openers only, and does not support other door access control systems.
- Customer Service and Technical Support - All the TOPENS products come with a 12-month war-ranty against defects, a 30-day exchange & return and excellent tech support. Visit TOPENS website for the user manual, installation video, and personalized service. TOPENS is ready to offer professional solutions for any questions or assistance. Enjoy an easier and smarter life by ordering TOPENS products.
Product Description

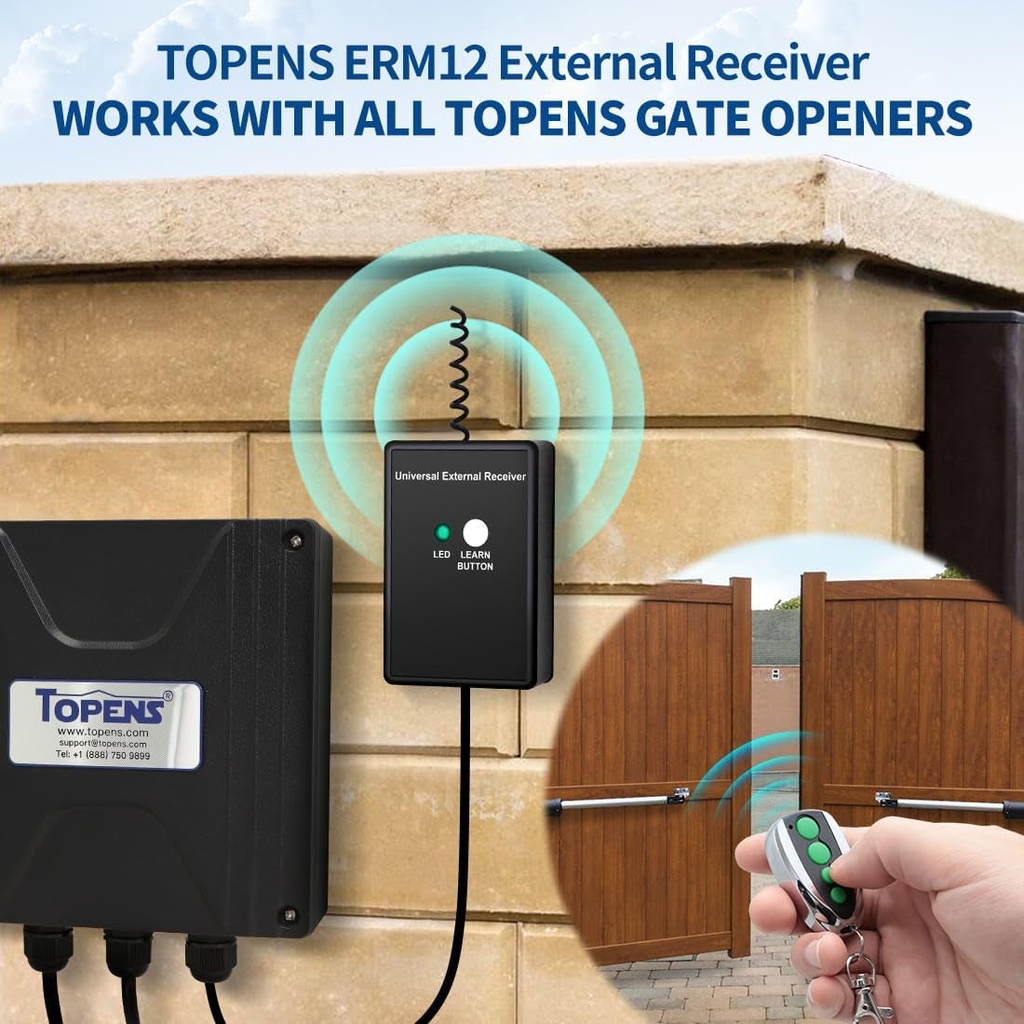

ERM12 External Receiver Works with All TOPENS Gate Openers
The ERM12 External Receiver effectively receives signals from TOPENS wireless access devices, such as remote control and keypad. It is suitable for household, courtyard, farm, ranch, warehouse and other commercial / industrial sites.
Why Choose TOPENS?
Founded in 1998, TOPENS is one of the America's well-known and trusted consumer brands in gate automation industry.
TOPENS is always committed to providing the high-quality products as well as helpful service. When you have our products, you also get the favorable 12-month war-ranty, life-time tech guidance, and outstanding system consultant service.
We have a knowledgeable, talented team of technicians to assist you with all of your questions and troubleshooting.
TOPENS Wireless Devices
With advanced TOPENS code technology, ERM12 establishes a reliable and secure link between the gate opener and TOPENS remote control devices.

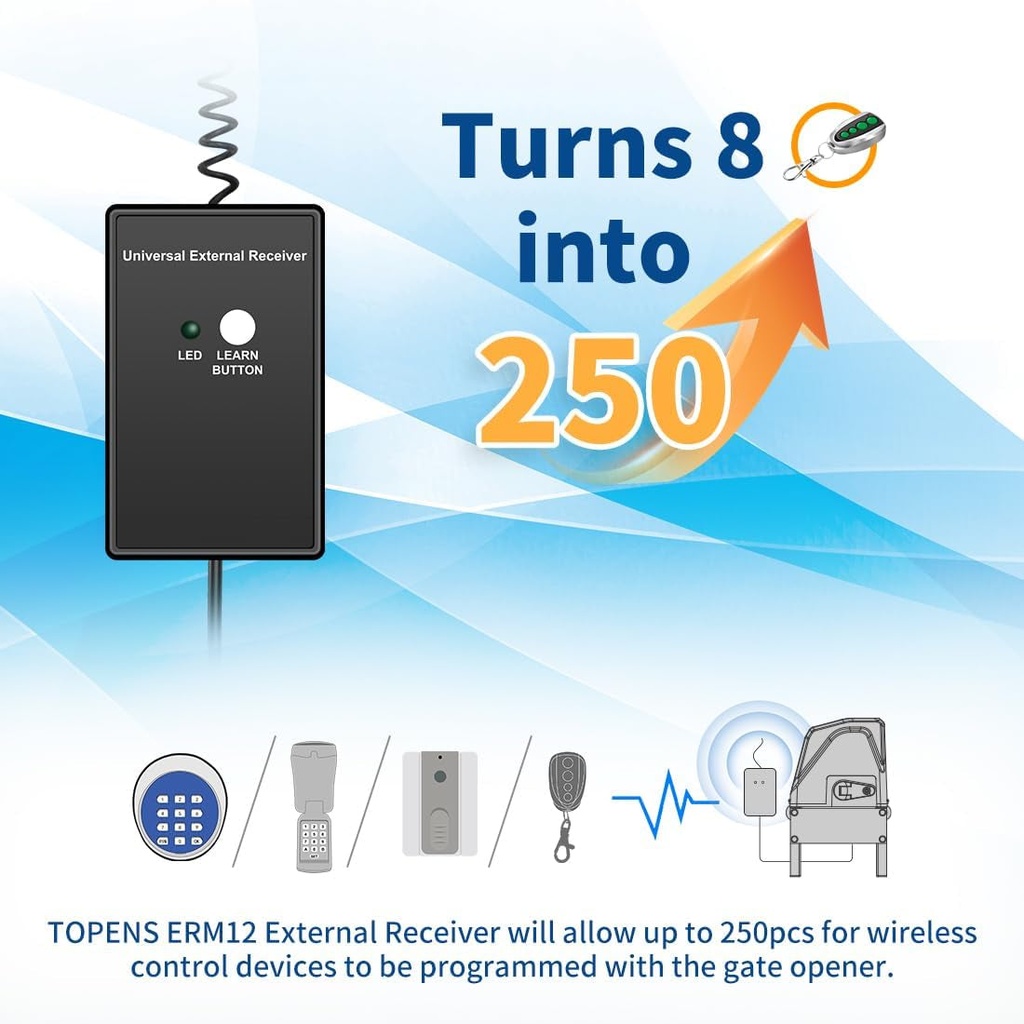

ERM12 rolling code external receiver can be programmed with up to 250 pcs TOPENS wireless devices.

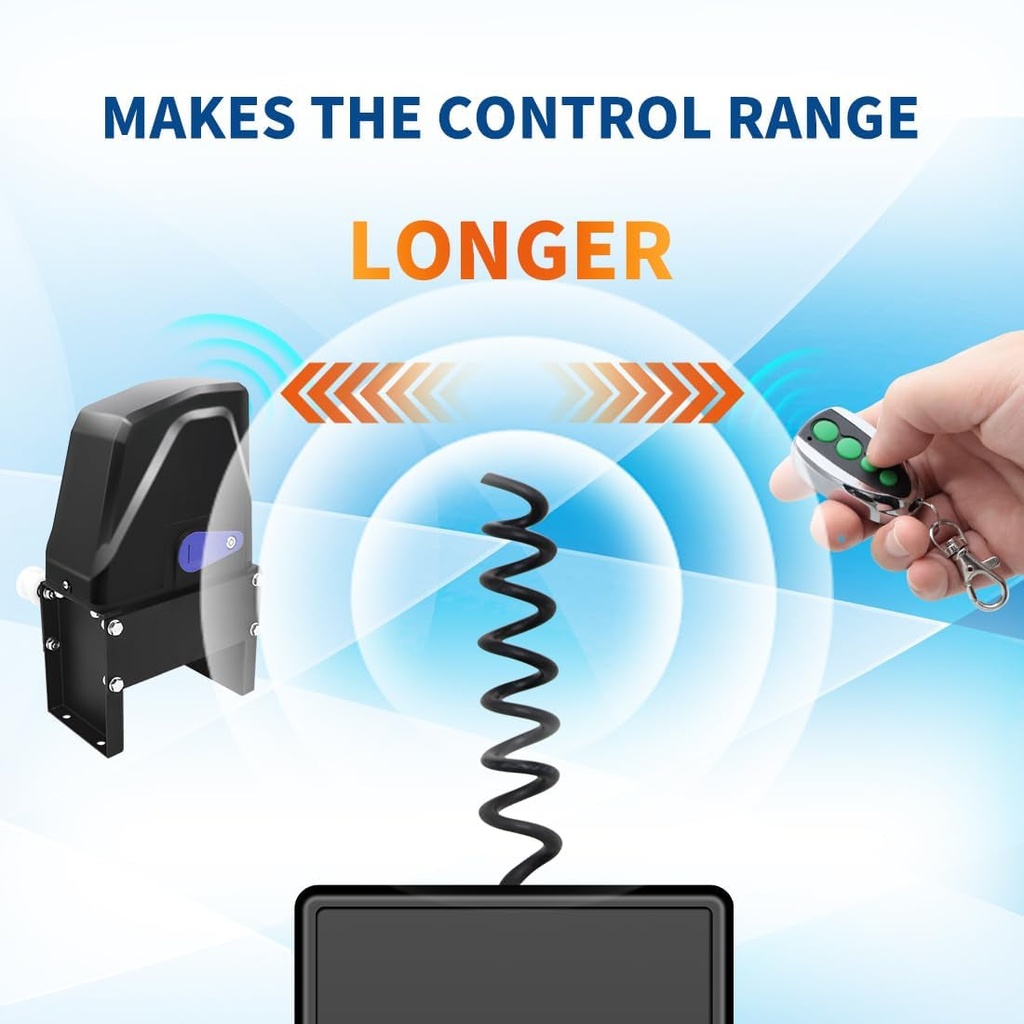

Control Range
ERM12 external receiver can be used to extend the operating range of TOPENS wireless control accessories.
Control Range: Maximum 98ft. (30m)

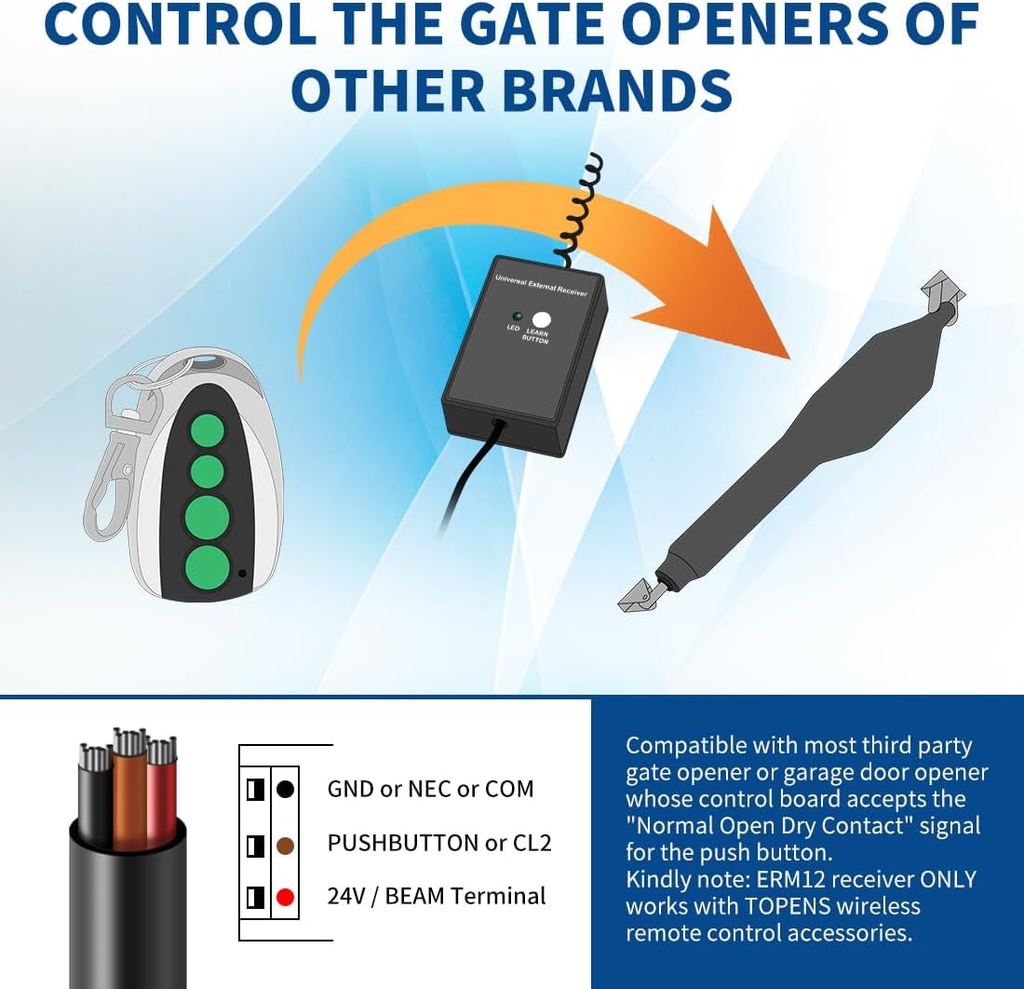

Control Other Brand’s Gate Opener
ERM12 is compatible with most third party gate opener or garage door opener whose control board accepts the "Normal Open Dry Contact" signal for the push button.
Kindly note that ERM12 receiver ONLY works with TOPENS wireless remote control accessories.

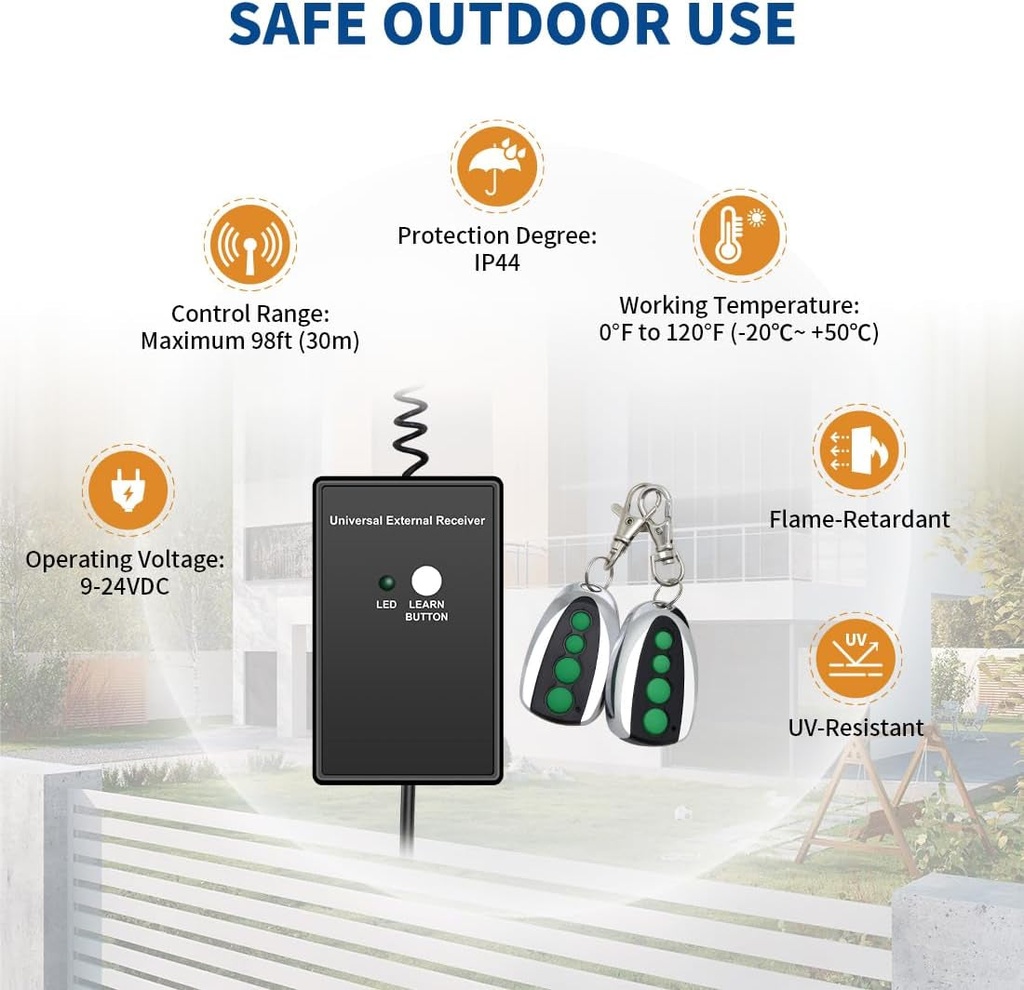

Outdoor Use
Protection Degree: IP44
Working Temperature: 0°F to 120°F (-20℃~ +50℃)
UV-Resistant
Flame-Retardant
Simple Wire Connection
Operating Voltage: 9-24VDC
RED: Positive of the power input.
BLACK: Negative of the power input.
BROWN: Signal output.

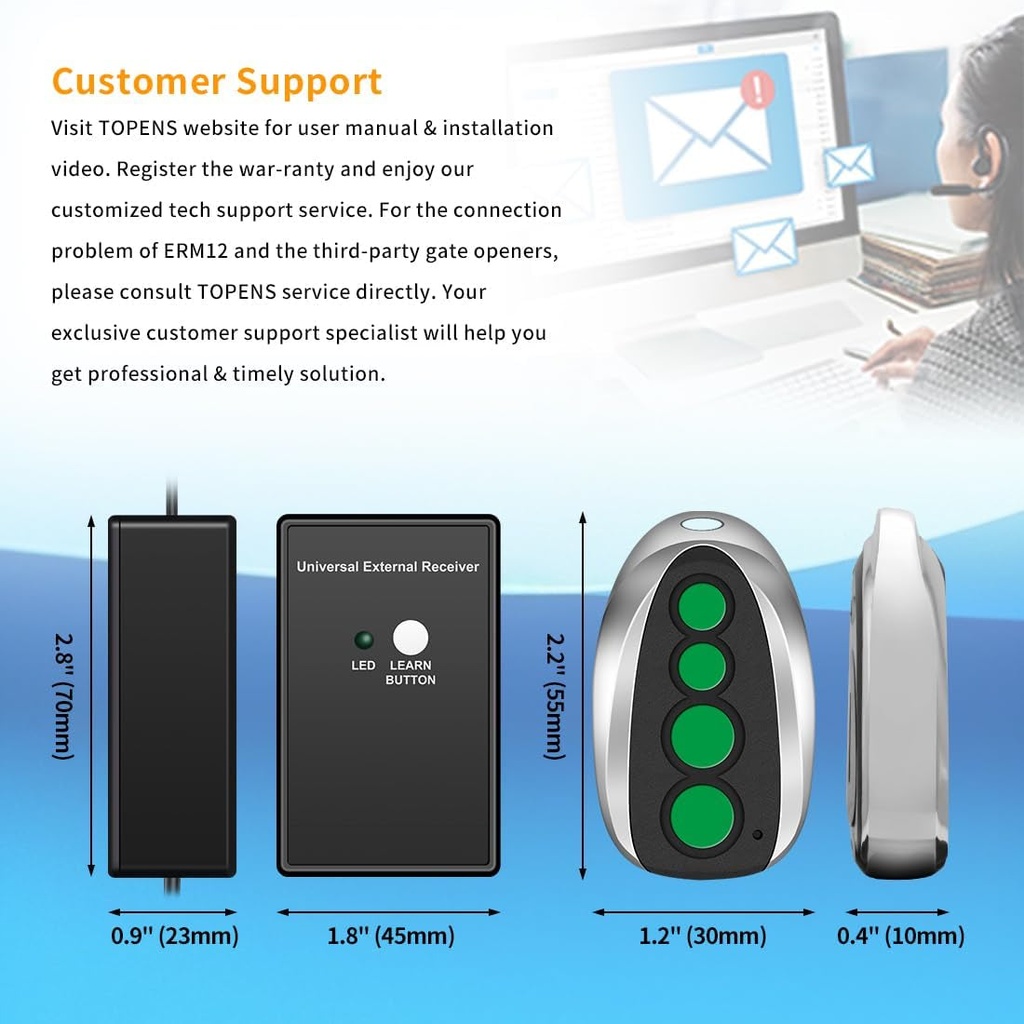

ERM12 External Receiver
1.8 x 0.9 x 2.8 " (45 x 23 x 70 mm)
One ERM12 can only work for one gate operator, while one gate operator can connect two ERM12 receivers at most.
M12 Remote Control
1.2 x 0.4 x 2.2 " (30 x 10 x 55 mm)
All TOPENS swing and sliding gate openers can be operated by the M12 remote.
Help
Choose TOPENS accessory, visit our website to download the user manual, watch the installation video and enjoy consultant service directly.
What Is the Specification of the ERM12?
Operating Current: 50mA, Operating Voltage: 9-24VDC
Output: Relay SPST, Modulation Mode: ASK (AM)
Frequency: 433.92MHz, TOPENS Rolling Code
Battery of the Remote Control: 2 x 3V Lithium Cell CR2025 Battery (Incl.)
How to Ensure Clear Signal Transmission?
For clear signal transmission, please do not put the ERM12 in a metal box.
It is NOT suggested to use the external receiver at signal towers, electrical substations and confined spaces.
Some buildings or obstructions may affect the control range.
What Is the Maximum Length for Extending the Cable?
3C x 22AWG when the distance between the receiver and the gate opener control box is within 16 feet.
3C x 18AWG cable for 16 feet to 98 feet extension distance.
What's in the Box?
1 x External Receiver
2 x Remote Control Transmitter with Batteries
1 x TOPENS User Manual
-

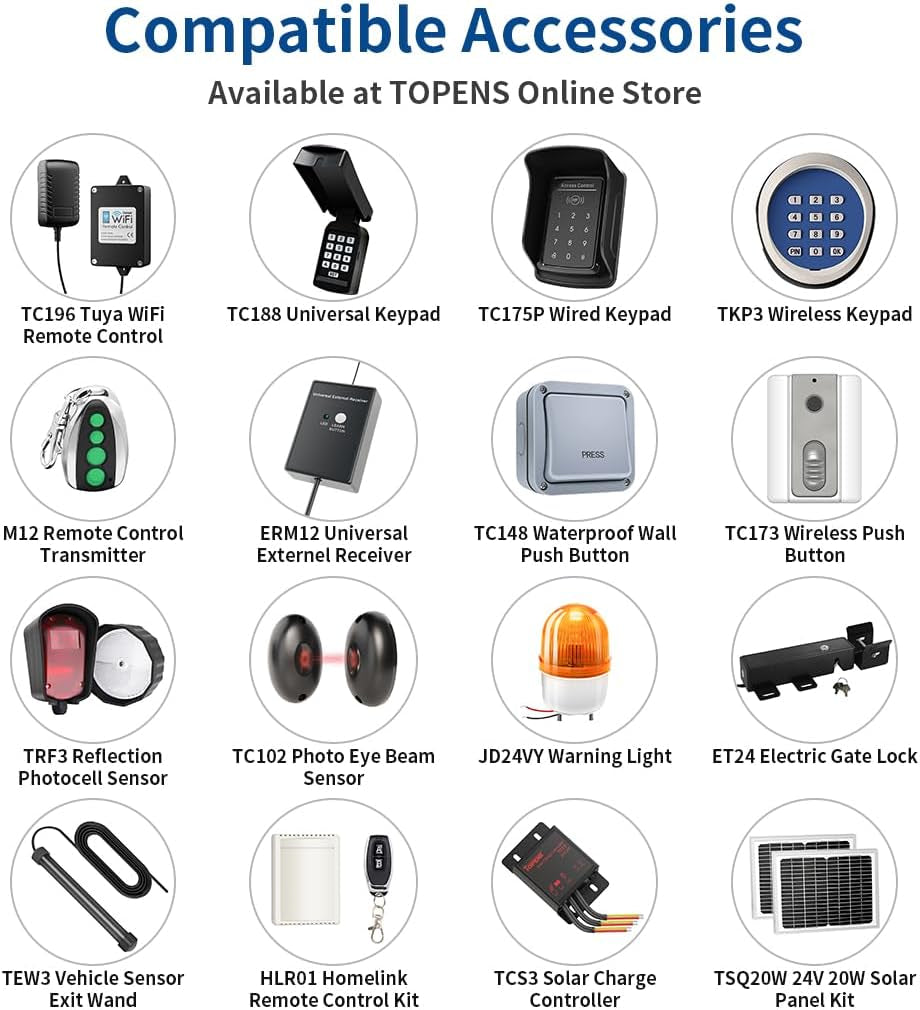

CONTROL & ACCESS
- TC196 Tuya WiFi Remote Control (Asin: B0CGR6XX62)
- M12 Remote Control (Asin: B075L4BN21), ERM12 External Receiver (Asin: B075KHPLHD)
- TC188 Universal Keypad (Asin: B09VGTCCJQ), TC175P Wired Keypad (Asin: B07ZTB33JK), TKP3 Wireless Keypad (Asin: B075K783DS)
- HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8), TEW3 Vehicle Sensor Exit Wand (Asin: B07DF8ZQNB)
-
Push Buttons & Power Supply
- TC148 Waterproof Wall Push Button (Asin:B09VGKDNQL), TC147 Wired Push Button (Asin: B07ZTB2TQH), TC173 Wireless Push Button (Asin: B07ZTC75CX)
- TSP30W 30W Solar Panel Charging Kit (Asin: B07ZTBRVXL), TSQ20W 24V 20W Solar Panel Kit (Asin: B09PH859S5), TCS3 Solar Charge Controller (Asin: B07ZTC6317)
- UPS01 Uninterrupted Power Supply (Asin: B093GF6DM7), DPS180-U AC-DC Power Supply (Asin: B07DF8HQV3), TS24-U Adapter (Asin: B07CWNP9R6)
-
Safe & Security
- ET24 Electric Gate Lock (Asin: B07NKQH8H3)
- TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT), TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)
- JD24VY DC 24V Warning Light (Asin: B07ZTB326B), JD110VY AC 110V Warning Light (Asin: B07ZTB175Z)
-
Cable, Chain, Limit Switch Magnet & Gear Racks
- 25FT Extension 5-Conductor Cable (Asin: B07WCW6W8T)
- LT08B 20 Feet Roller Chain (Asin: B07ZTBD6JZ)
- PYCGZT Limit Switch Magnet (Asin: B0BXNCG9S2)
- SR02 Heavy Duty Steel Gear Rack (Asin: B08HRXRVKW), RNH2 Heavy Duty Nylon Gear Rack (Asin: B093FCGDM7), RNH4 Heavy Duty Nylon Gear Rack (Asin: B078TCZ7TT)
Package Dimensions:
0.98 inches x 1.97 inches x 2.76 inches. Weight: 150.0 grams
Specification:
| Item model number | ERM12 |
| Brand Name | TOPENS |
| Color | Black |
| Product Dimensions | 1.97 x 0.98 x 2.76 inches |
| Compatible Devices | function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-4:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-4'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) }); })); All TOPENS gate openers, most third party gate openers and garage door openers with 'Normal Open Dry Contact' signal for the push button See more |
| Item Weight | 150 Grams |
| Connectivity Technology | Radio Frequency |
| Color Name | Black |
| Batteries | 2 CR2 batteries required. |
| Is Discontinued By Manufacturer | No |
| Brand | TOPENS |
