USB Power Meter Testers, Multi Functional 2 in 1 Type C USB Tester, LCD Digital Multimeter, Voltage,Current, Power Capacity, Temperature, Working Time Detector (Pack with OTG Adapter)

Product Basic Information:

Voltage measuring range: 3.60V ~ 32.5 V Resolution precision: 0.01 V
Current measuring range: 0.00 ~ 5.00 A Resolution precision: 0.01 A
Power cumulative range: 0 ~ 999999 MWH Resolution precision: 0.001 Wh
Power metering range: 0 ~ 299.999 W Resolution precision: 0.001 W
Timing maximum time: 999 H 59 M 59 S Resolution precision: 1 S
Time to refresh: > 500 ms/time > 500 ms/times
Measurement rate: 0.5 times/s
Product size: 65 x 24 x 14 mm
Since the power flow: <0.015 A
Working temperature: - 10 ~ + 60 ℃
Working humidity: 10 ~ 80 (no doubt)
The pressure of work: 80 ~ 106 kpa
Package dimensions：10.5*8.8*2.8cm
Package weight：55g

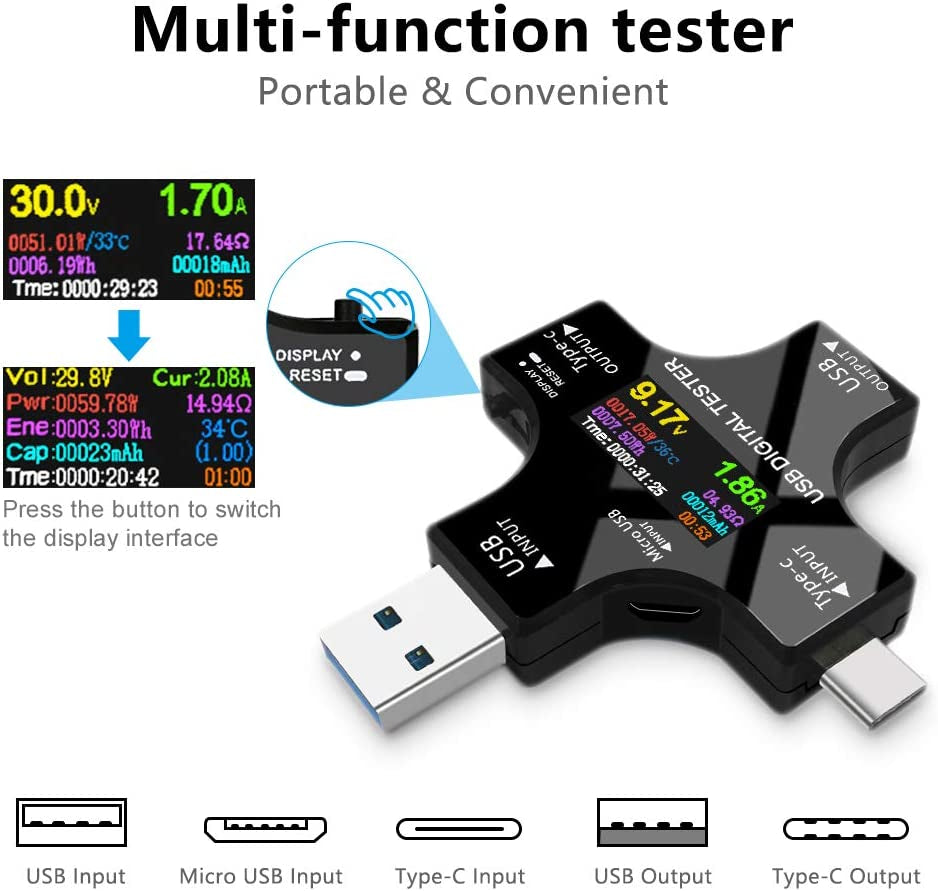

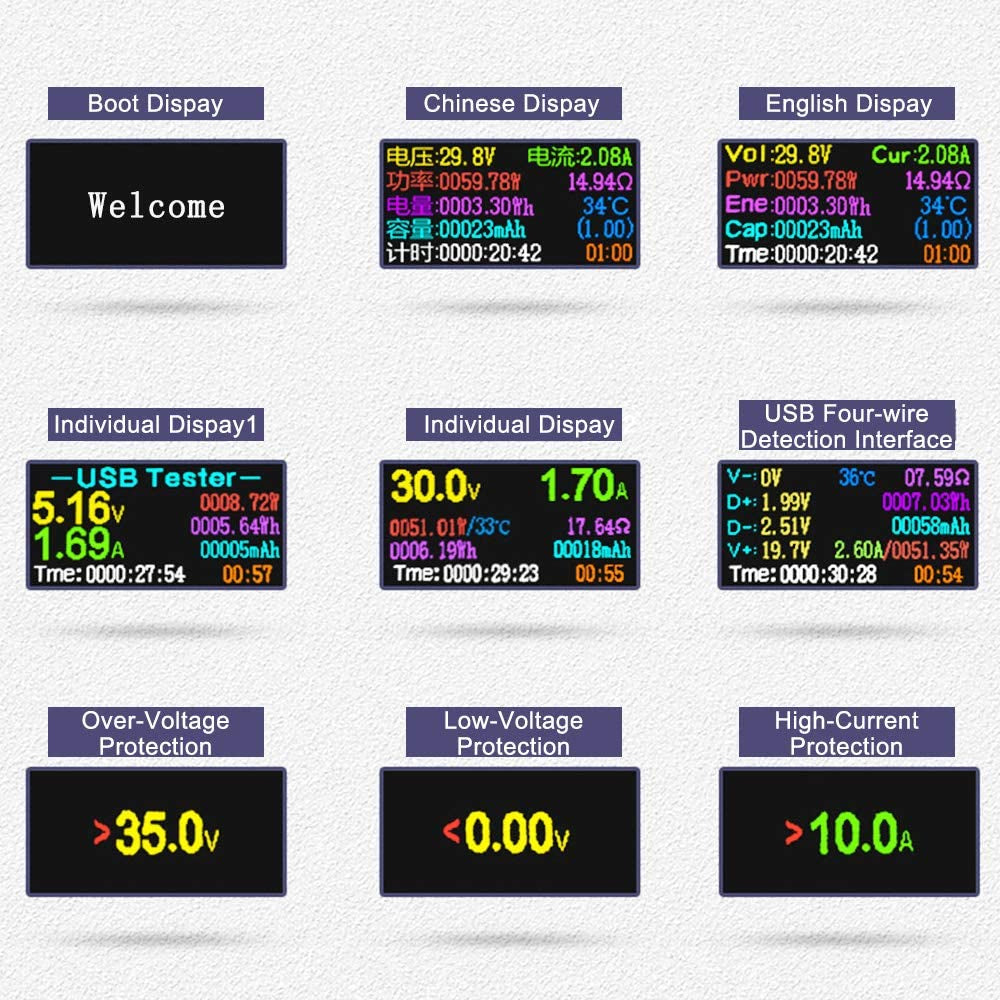

Display Screen Operation Manual: :

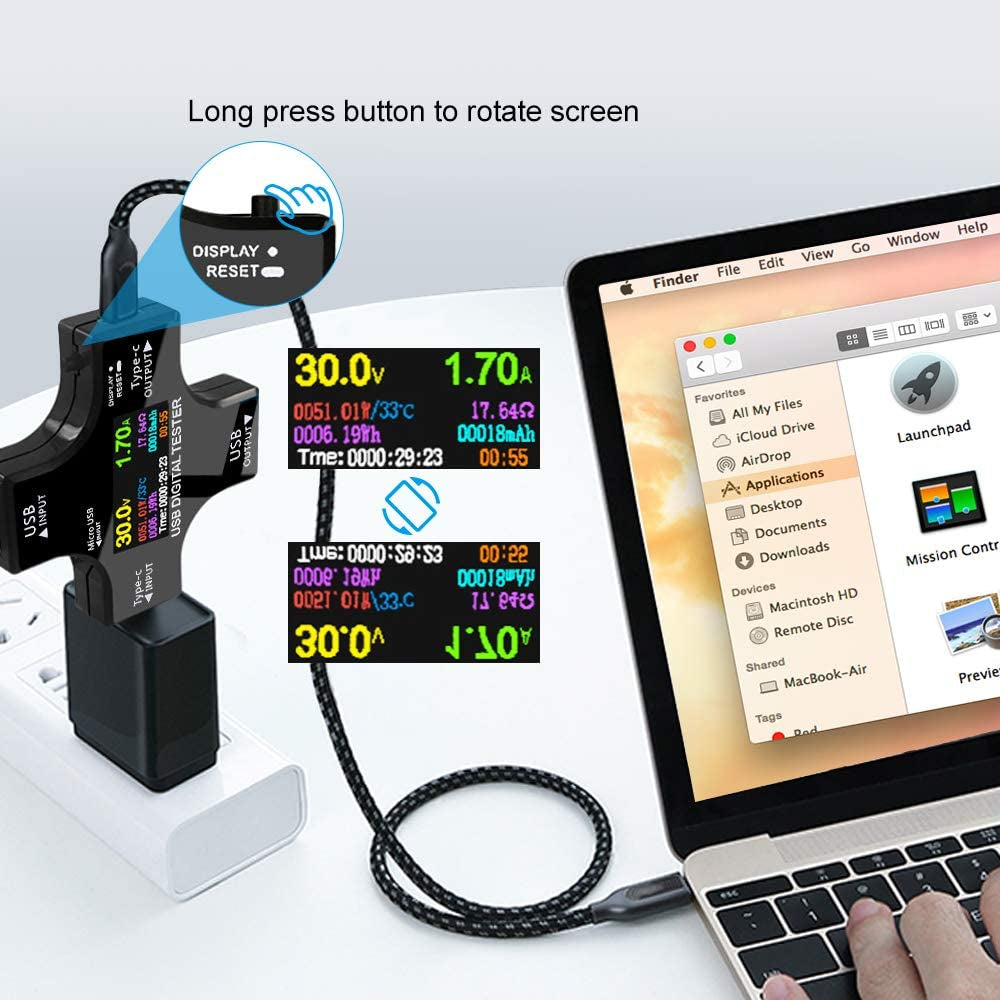

(1)Long press in the main interface means that electricity, time all are reset and cleared to zero (Wh 00:00:00).
(2)Double click means that power is reset and cleared to zero (Wh).
(3)Triple click means that time is reset and cleared to zero (00:00:00).
(4) Without holding down the key not to put into electricity, electricity is the current temperature environment current zero calibration(at the ambient temperature changes or external thermal
conductivity to U table lead to current is not zero, zero calibration by this method,Zero calibration, the output shall not have any load current consumption, so as to avoid mistakes zero).
(5) if the enter background mode, short press the switch calibration interface, double-click the calibration starts.
