Mageway 24VDC Heavy Duty Automatic Electric Gate Lock for Swing Gate Opener Gate Operator Automatic Gate Openers, Fail Secure Waterproof Solenoid Lock, Pre-Wired 16 Ft UL Cable
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
- STURDY AND STRONG - Provides additional protection from wind or other damaging forces.The steel case of the lock makes that it can provides secure protection to withstand up to 2200 lbs. of force, providing stability.
- HIGH SECURITY - The automatic electric lock can provides peace of mind and added security for your gate opener system!

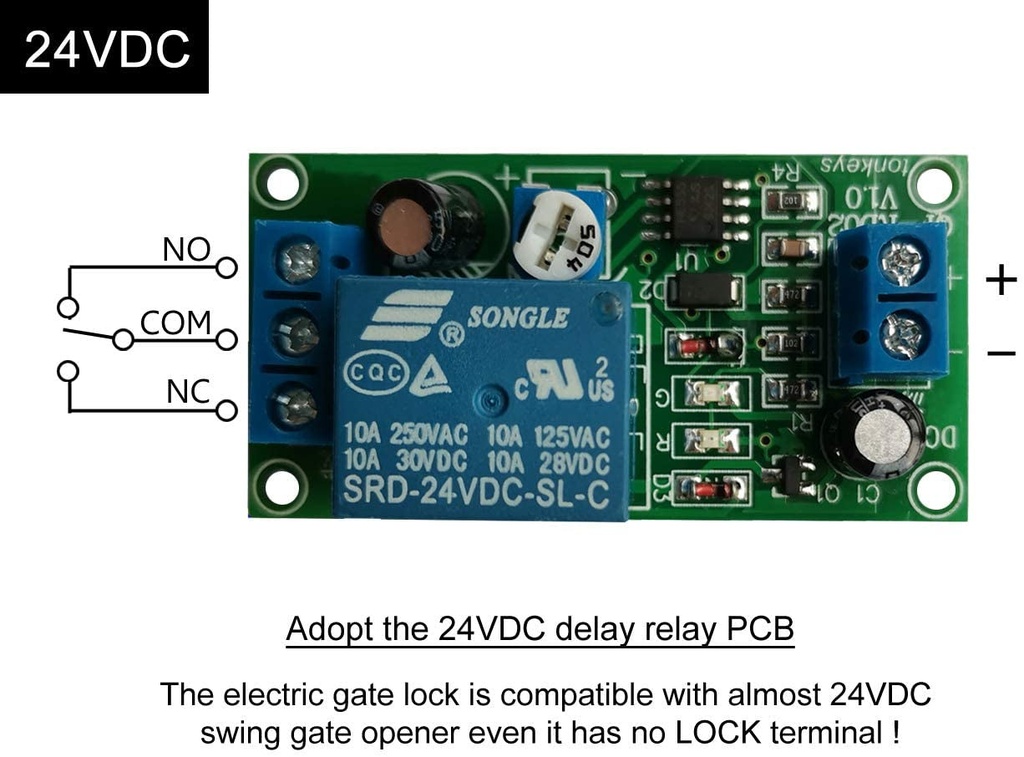

- UNIVERSAL - Adopt a 24VDC delay relay PCB, the electric gate lock is compatible with almost all 24VDC swing gate opener even it has no LOCK terminal!
- EASY TO INSTALL - DIY (Do It Yourself) installation design! Self-installation without the help of electricians and mechanics!
- EXCELLENT SERVICE - Backed by a 12 month Warranty and 7*24 hours Technical Support!
1.Product Description:

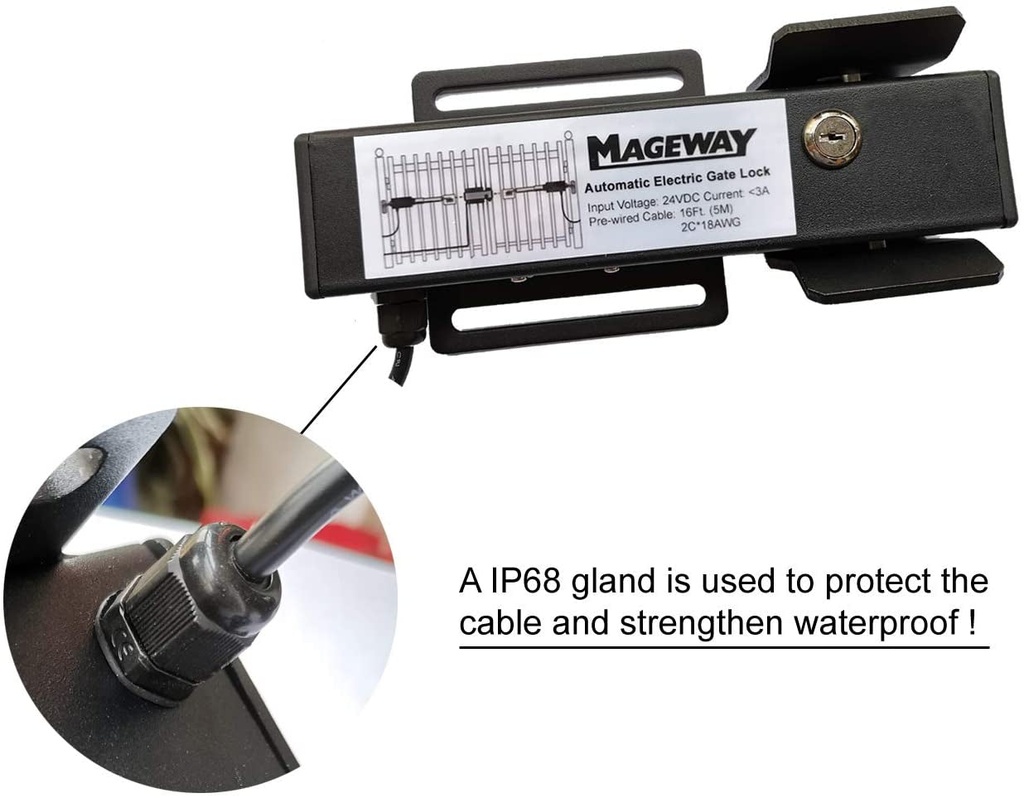

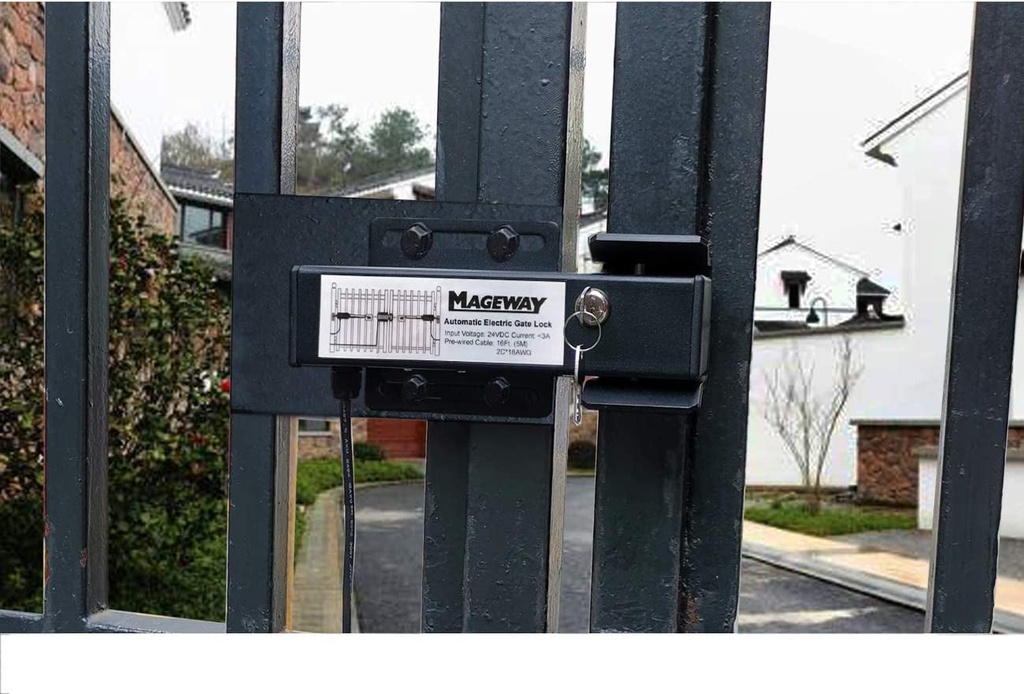

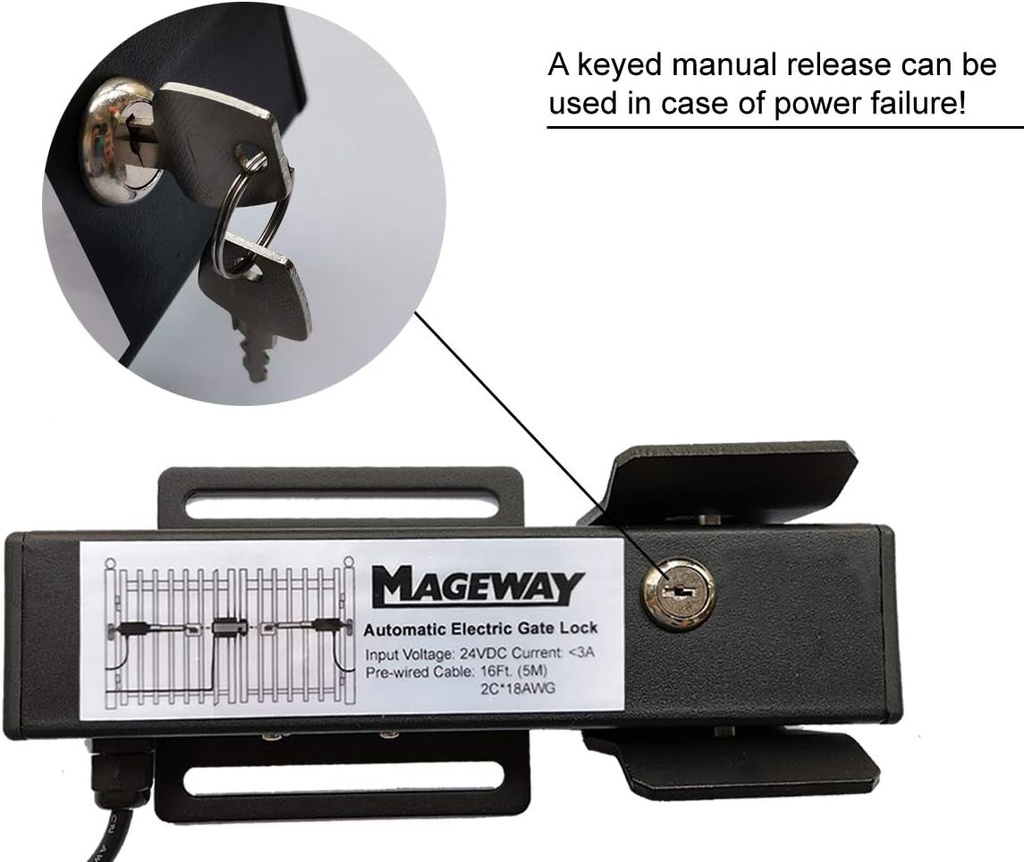

The Automatic gate lock can locks and unlocks the gate when the Automatic Gate Opener is activated. It is the perfect solution for your gate security upgrade needs. It's also an ideal accessory for your gate opener in a windy area to seure your gate in closed position. It can be compatible with almost all 24VDC automatic gate openers. It can be installed to the gate opener system quickly and easily. It eliminates "wiggle room" between your gate/fence or gate/gate (in dual gate applications). It comes with a keyed manual release in case of power failure! The pre-wired 5m (16 ft.) UL listed 2-core cable provides easy wire connection and more safety when using! Please do not hesitate to email us for a wiring diagram when you can not figure it out how to connect the lock to you opener!
2.Specifications:
Holding force: 2200lbs(1000kgs)
Input Voltage: 24VDC
Current: <2.5A

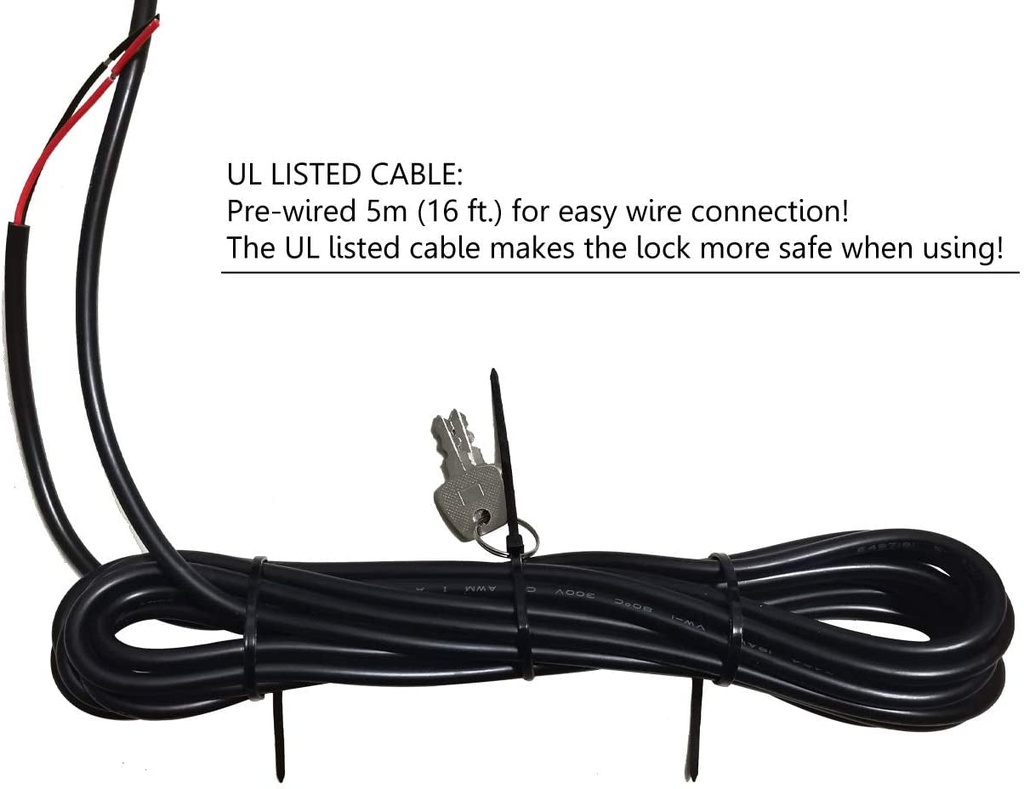

Pre-wired 2-core cable: 5m (16 ft.), 2*18AWG Working temperature: -20 to 55 Celsius degree(-4 to 122 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: fail-secure; power-on to unlock, power-off to lock

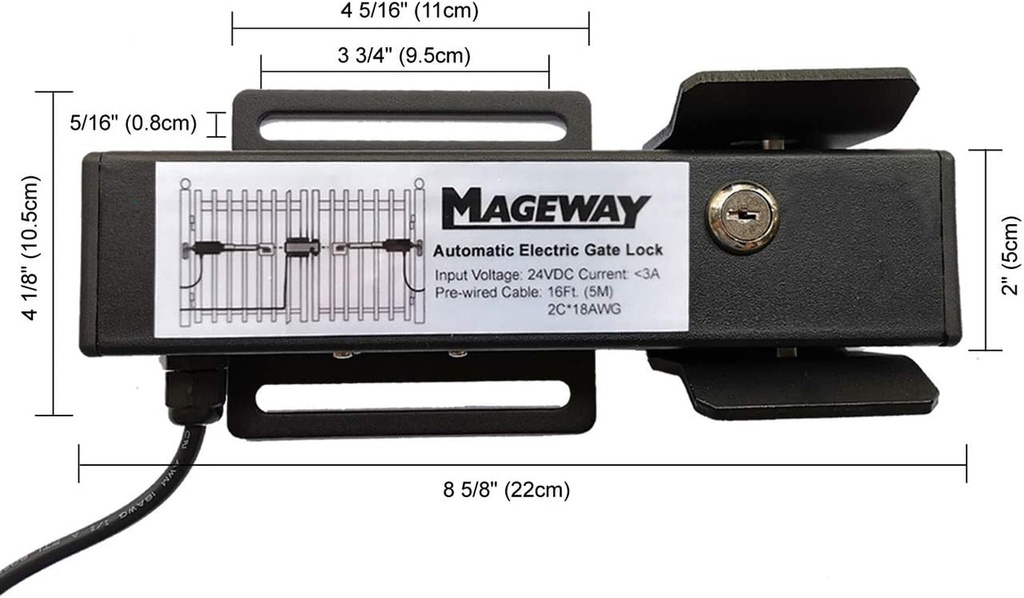

Package Dimensions:
1.89 inches x 9.84 inches x 1.06 inches. Weight: 4.41 lb
Specification:
| Item model number | EL105 |
| Warranty Description | 1 year warranty |
| Power Source | DC |
| Country of Origin | China |
| Batteries Included? | No |
| Usage | Outside |
| Specification Met | UL |
| Batteries Required? | No |
| Finish | Coated |
| Product Dimensions | 9.84 x 1.89 x 1.06 inches |
| Material | Alloy Steel |
| Installation Type | Surface-Mounted |
| Amperage Capacity | 2.5 Amps |
| Is Discontinued By Manufacturer | No |
| Included Components | Electric Lock, 24VDC delay timer relay |
| Item Package Quantity | 1 |
| Item Weight | 4.41 pounds |
| Special Features | Waterproof |
| Exterior Finish | Powder Coated |
| Part Number | EL105 |
| Color | Black |
| Wattage | 60 watts |
| Shape | Rctangular |
| Voltage | 24 Volts |
| Recommended Uses For Product | Securing and reinforcing swing gates in various settings, such as residential, commercial, or industrial properties |
| Manufacturer | Mageway |
| Brand | 不适用 |
| Size | Medium |
