2-⅜” (1,000Pc) FM Approved Barbed Seam Plates- Roof Insulation Plates - EPDM - TPO - Fasteners - Commercial - Rubber Roofing - Goes with Ace Screws Fasteners to Meet All Roofing Tasks
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.

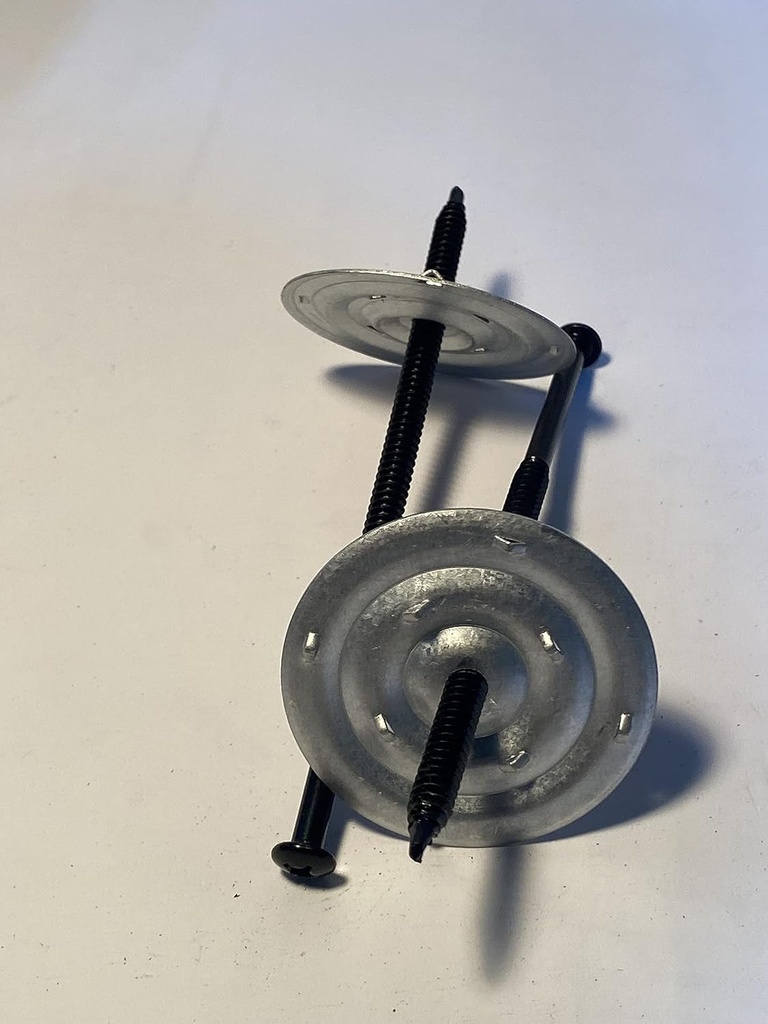

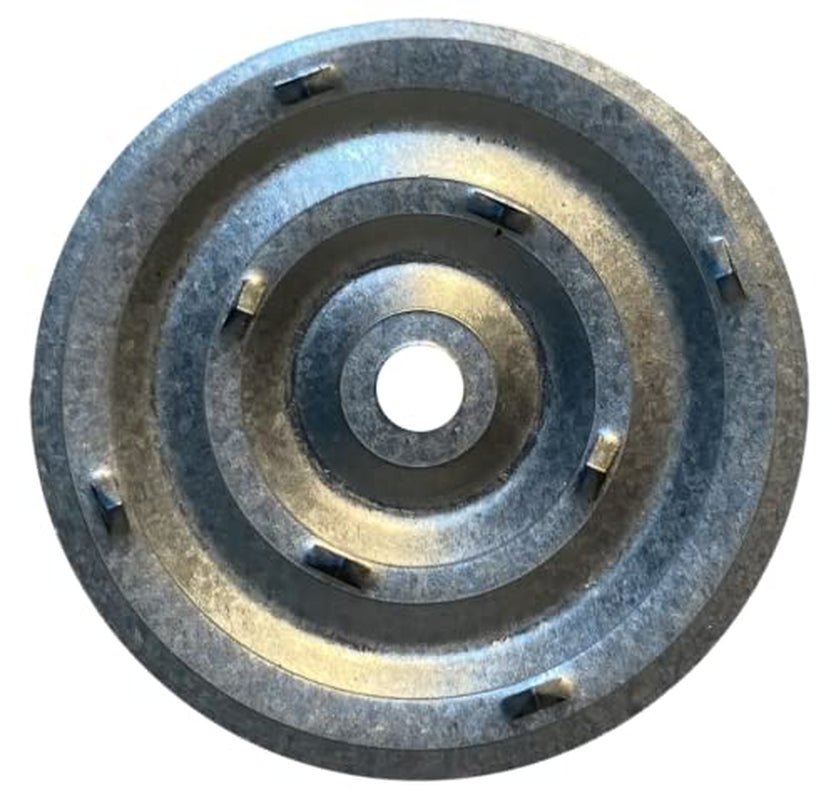

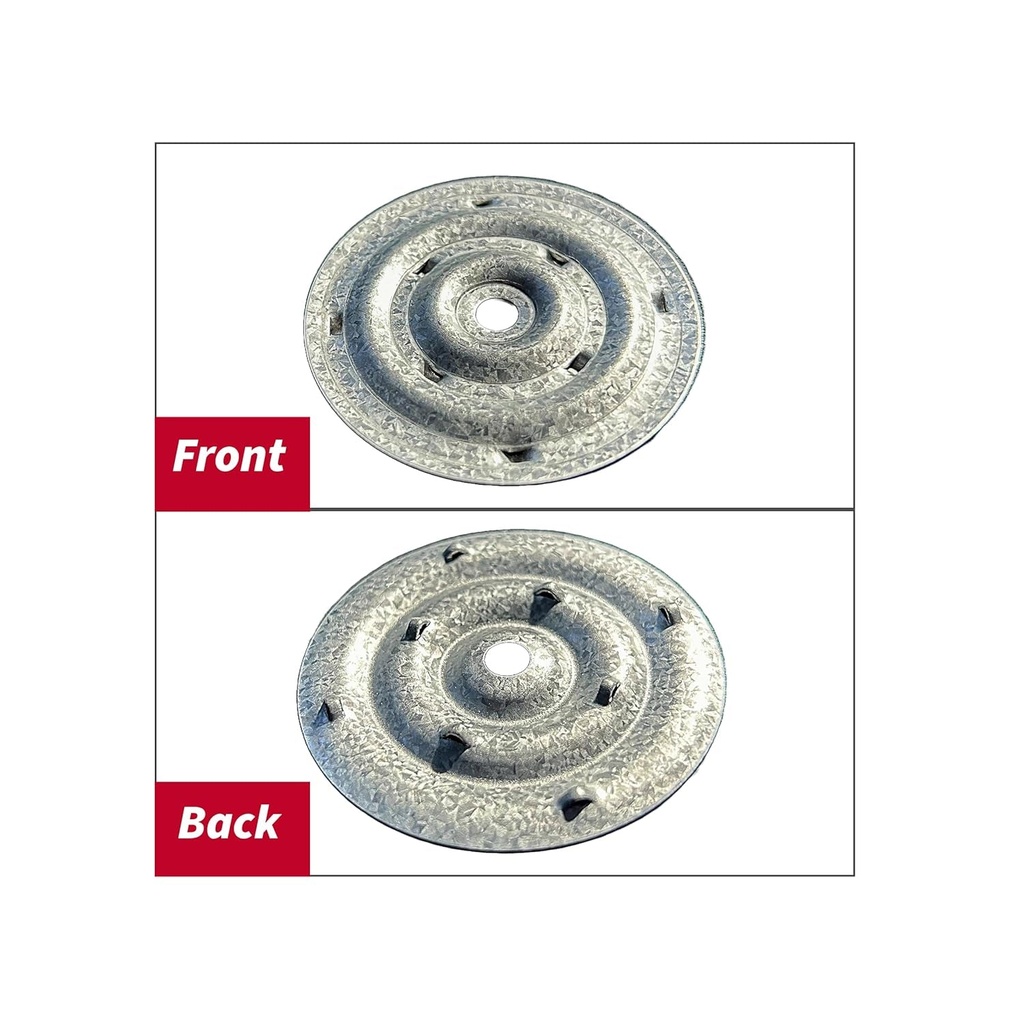

- ABOUT: Ace Screws 2-⅜” Barbed Seam Plates are designed to be used with Ace Screws #12 & #15 Fasteners or other fasteners to secure rigid insulation, base sheet, EPDM, TPO, and PVC to steel and wood structural decks. Plate sizes include 3” Bullseye Insulation, 3” Wagon Wheel Insulation, 2-⅜” Barbed Seam, and 2” Seam Plates to meet a variety of commercial roofing applications.
- TESTING: Ace Screws Fasteners and Plates are being continually tested with 3rd party independent testing facilities to ensure quality. Our 2-3/8" Barbed Seam Plate has a pull test of 1,142 Ibf and after 120 hours, the average red rust is less than 0.25%.

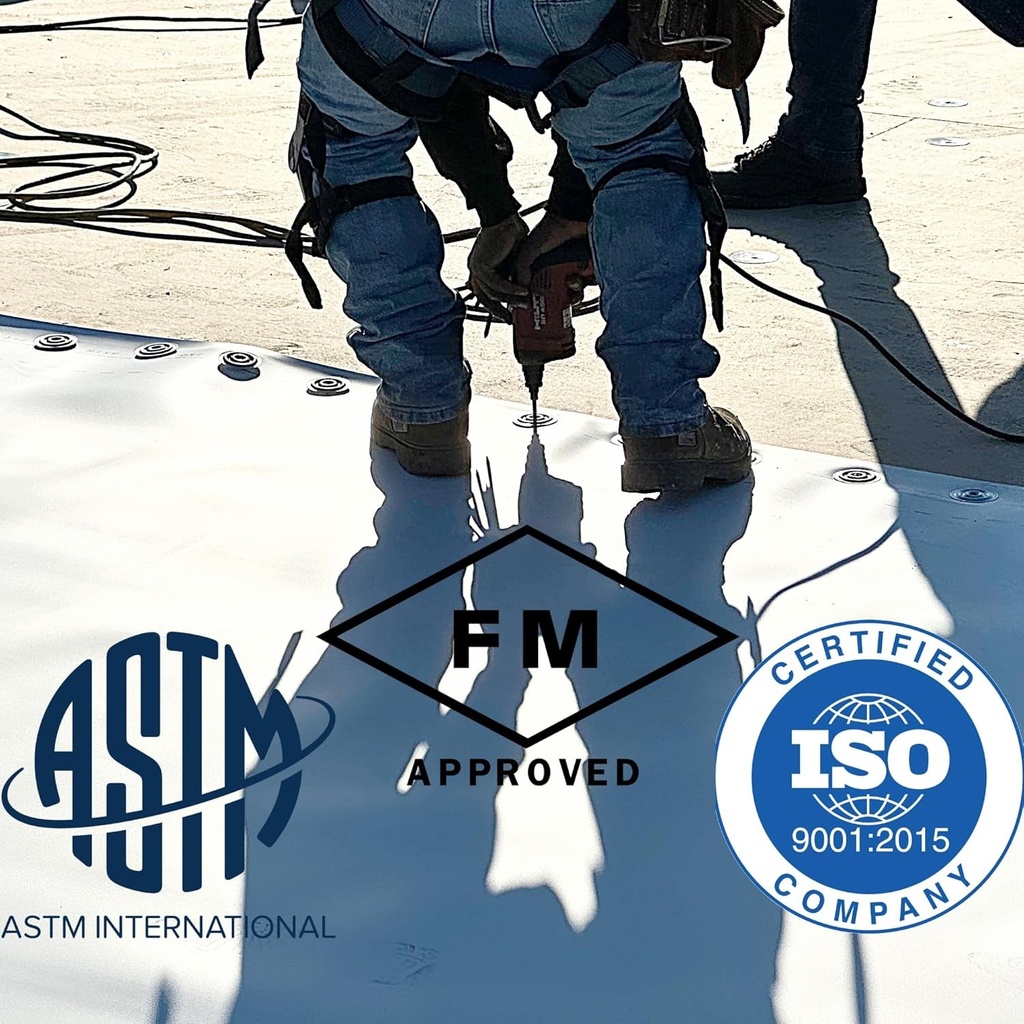

- APPROVALS: Ace Screws 2-3/8" Barbed Seam Plates are approved by many of the major material manufacturers to be utilized in full system warranties. Check with your material manufacturers before use.
- PREPARATION: Place the insulation plate over your approved insulation/cover boards. Attach the plates to the roof deck using the appropriate Ace Screw Fastener.
- THICKNESS: 0.0315 in (0.8mm)
Ace Screws plates are designed to be used with Ace Screws #12, #15 Fasteners, or other fasteners to secure rigid insulation, base sheet, EPDM, TPO, and PVC to steel or wood structural decks. Plate sizes include 3" Bullseye Insulation, 3" Wagon Wheel Insulation, 2-3/8" Barbed Seam, and 2" Seam Plates to meet a variety of commercial roofing applications. Ace Screws roofing plates are continually being tested with 3rd party independent testing facilities to ensure quality. Storage: Store in original, unopened packaging protected from the weather. Precautions: Eye protection must be worn during the installation of the fasteners.
Package Dimensions:
8.0 inches x 12.0 inches x 14.0 inches. Weight: 42.0 lb
Specification:
| Item model number | ACE-PLT-238INS |
| Item dimensions L x W x H | 12 x 8 x 14 inches |
| Product Dimensions | 12 x 8 x 14 inches; 42 Pounds |
| Material | Rubber |
| Country of Origin | USA |
| Head Style | Hex |
| Metal Type | Aluminum |
| Exterior Finish | Alloy Steel |
| Manufacturer | Ace Screws/ LLC |
