ANSI Standard Heavy Duty Electric Door Strike Lock for Door Access Control System Fail-Secure Fail-Safe Adjustable Access Control Cylindrical Locksets (Input Voltage 12Vdc),Black
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
- 【Update Quality】 New upgraded ANSI standard heavy duty electric door locks made of high quality alloy metal material, the maximum impact resistance is 1000kg / 2200lbs after electrification, corrosion resistance, longer service time and higher efficiency.(Voltage : DC12V)
- 【Two Models】：You can set the operation mode of Fail Safe or Fail Secure. Just loose the screw and tighten it in the other hole.Fail Safe(NC):When power off,the door is in the open status.Fail Secure(NO):When power off,the door is in the closed status.
- 【Application】 ANSI standard heavy duty electric door locks can be used in access control systems, cylinder locks, mechanical locks. This electric door lock can be used to convert a cylinder lock into an electronic access lock system, it meets every need.
- 【Accessories】 Package include mounting tabs*2, screws*4, diode*1, instruction*1.Warm tips: before ordering, please confirm the door frame size to avoid errors in the purchase, please refer to the instructions when installing
- 【Service】 Before ordering, please check the size of door's frame to avoid wrong purchase! If you have any problem, we will be happy to help you within 24 hours.
Product Description

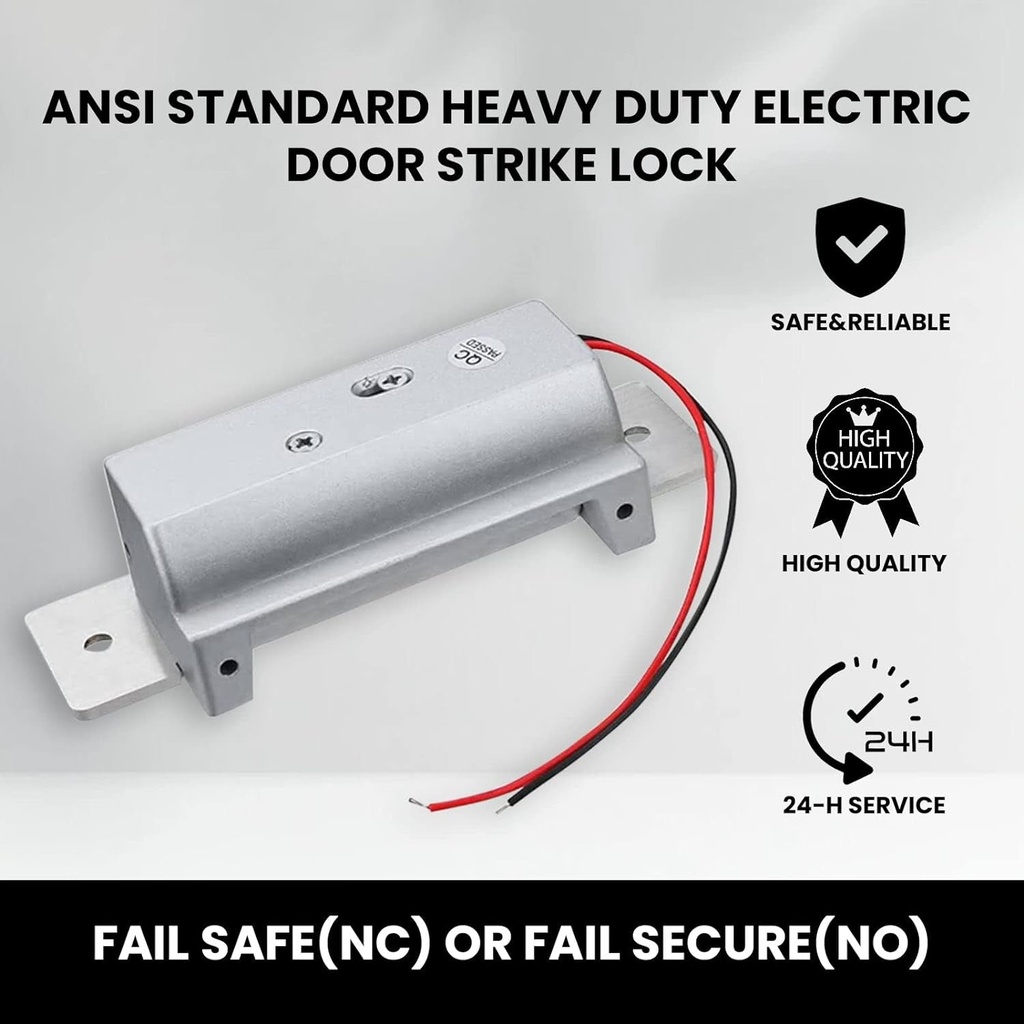

ANSI Standard Heavy Duty Electric Door Strike Lock
Features
Fail Safe (NC): When power off, the door is in the open status. Fail Secure (NO): When power off, the door is in the closed status.
You can set the operation mode of Fail Safe or Fail Secure. Choose from two modes, allowing you to have more choices and suitable for more places
Please confirm that door strike is the size you need before ordering!

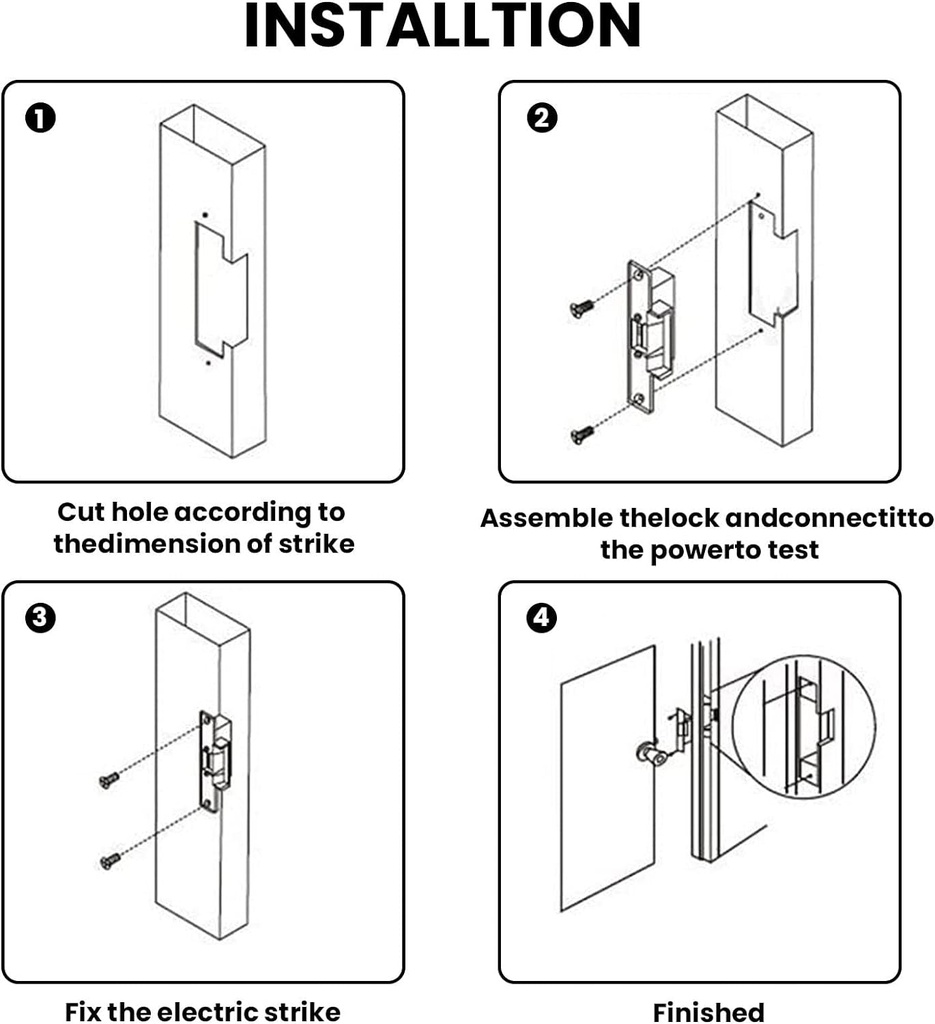

Easy installation
1. Cutting according to thesize of the electric lock.
4 After installed, power on
2. Insert the extension plate.
5. Fix strike lock.
3. Fix the extension plat.
6. Finish.

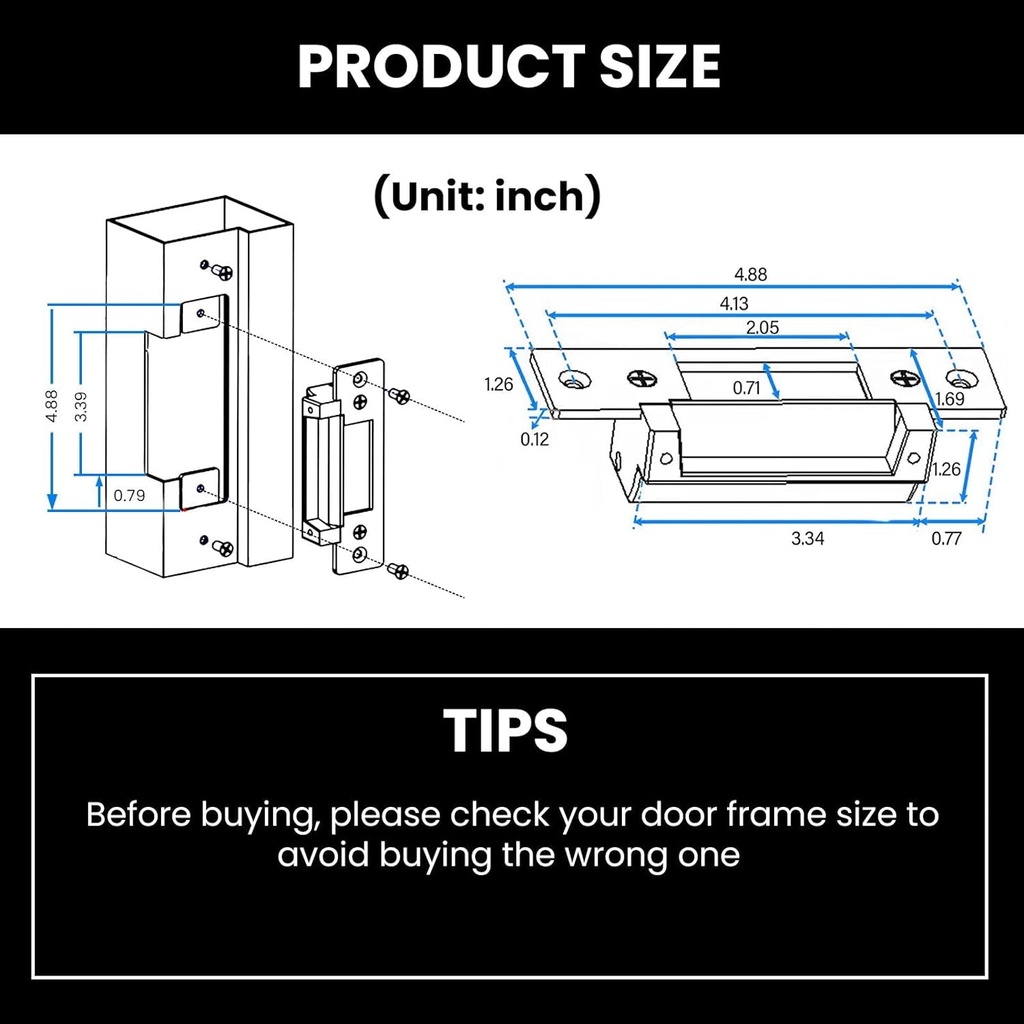

Specifications
Product Dimensions LxWxH: 4.88 x 1.26 x 1.3 inches
Item Weight: 0.84 lbs
Voltage: 12VDC (optional 24V); Current: 220mA(NO), 170mA(NC)
Retention force: 2200 lbs
Function: Built-in MOV
Applicable door frame size:
Shell size: 1.26*3.31*1.69(in)
Panel size (length x width): 4.84*1.65 (in)
Suitable for deadbolt size:
Lock tongue size: 0.39*2.13*0.75 (in)
Product material: stainless steel, alloy steel, metal
Product color: silver
Tip: Please check the size before placing an order to avoid mistaken purchase!

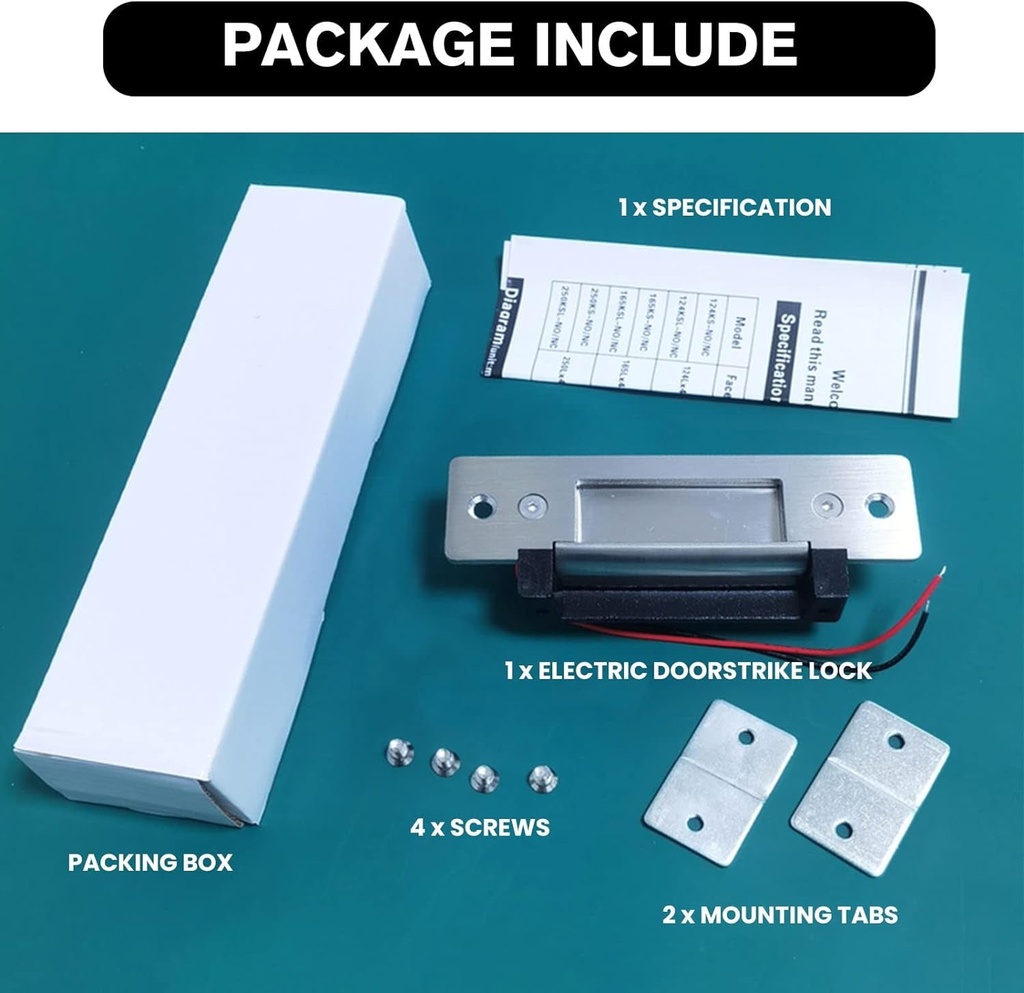

Package List
1 x Electric Strike Lock
2 x Mounting Tabs
1 x User Manual
4 x Screws
Application Scenarios
ANSI standard heavy duty electric door locks available for access control systems, cylinder locks, mechanical locks. This electric door lock can be used to convert cylinder locks into electronic access lock control systems，It can meet a wide variety of needs.

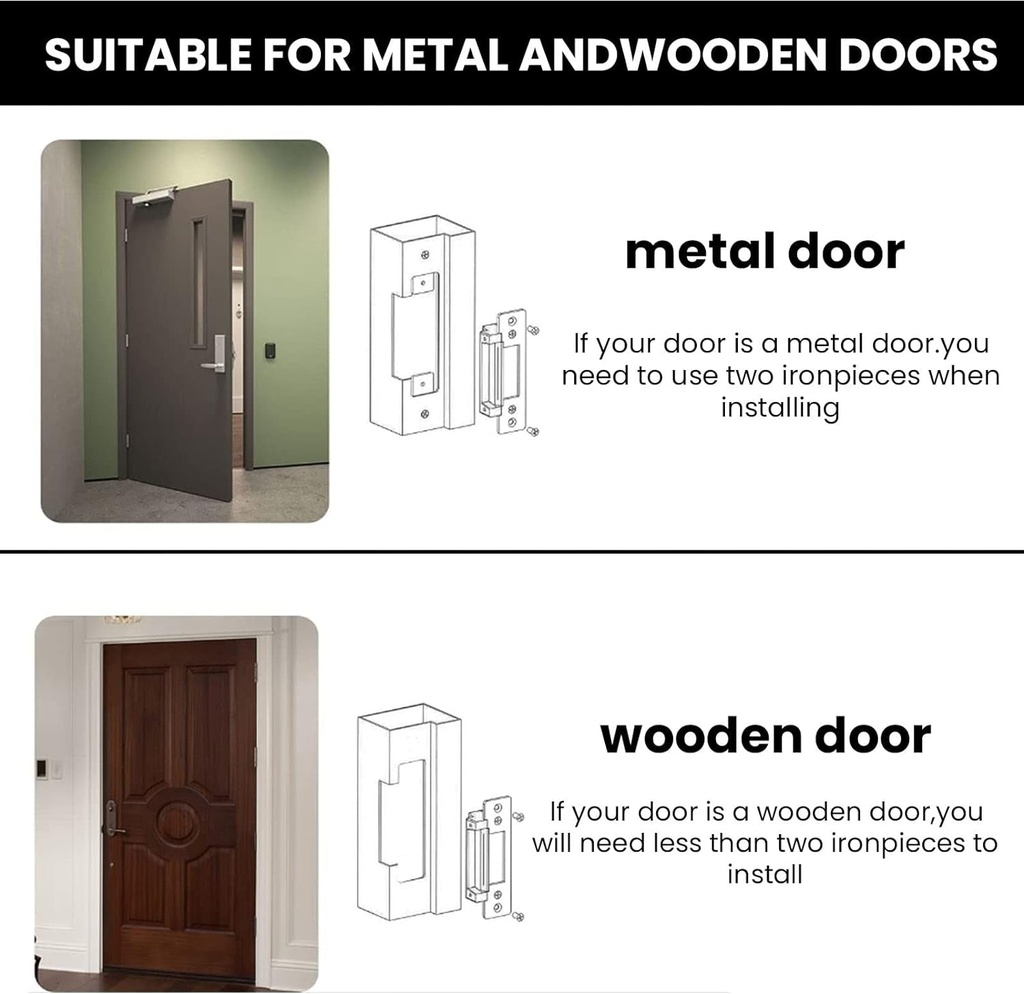

Fits door frame sizeCase Size：1.26*3.31*1.69（in） Faceplate Size (LxW)：4.84*1.65（in） | Standard Heavy Duty Electric Door Strike LockHeavy duty electric door strike lock can be used for metal doors or wooden doors and other types | Suitable for deadbolt sizeLock Tongue Size：0.39*2.13*0.75（in） Electric Gate Lock Dimensions LxWxH：4.88 x 1.26 x 1.3 inches Electric Gate Lock Weight：0.84 lb |
Package Dimensions:
1.24 inches x 4.88 inches x 1.26 inches. Weight: 1.08 lb
Specification:
| Item model number | Black |
| Style | Modern |
| Country of Origin | China |
| Batteries Included? | No |
| Number of Pieces | 1 |
| Batteries Required? | No |
| Finish | Polished |
| Brand | WIRELEL |
| Material | Stainless Steel |
| Model Name | Black |
| Finish Type | Polished |
| Included Components | Screws |
| Item dimensions L x W x H | 4.88 x 1.24 x 1.26 inches |
| Control Method | Touch |
| Item Weight | 1.08 pounds |
| Lock Type | Electronic Deadbolt |
| Special Features | Keyless |
| Special Feature | Keyless |
| Part Number | Door Lock |
| Color | Black |
| Recommended Uses For Product | Access control, cylindrical lock conversion, mechanical lock operation |
| Manufacturer | WIRELEL |
| Product Dimensions | 4.88 x 1.24 x 1.26 inches |
