3/8 Inch X 5 Inch - 40 Pieces Wedge Anchor Zinc Plated Heavy Duty Fastener for Concrete
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.

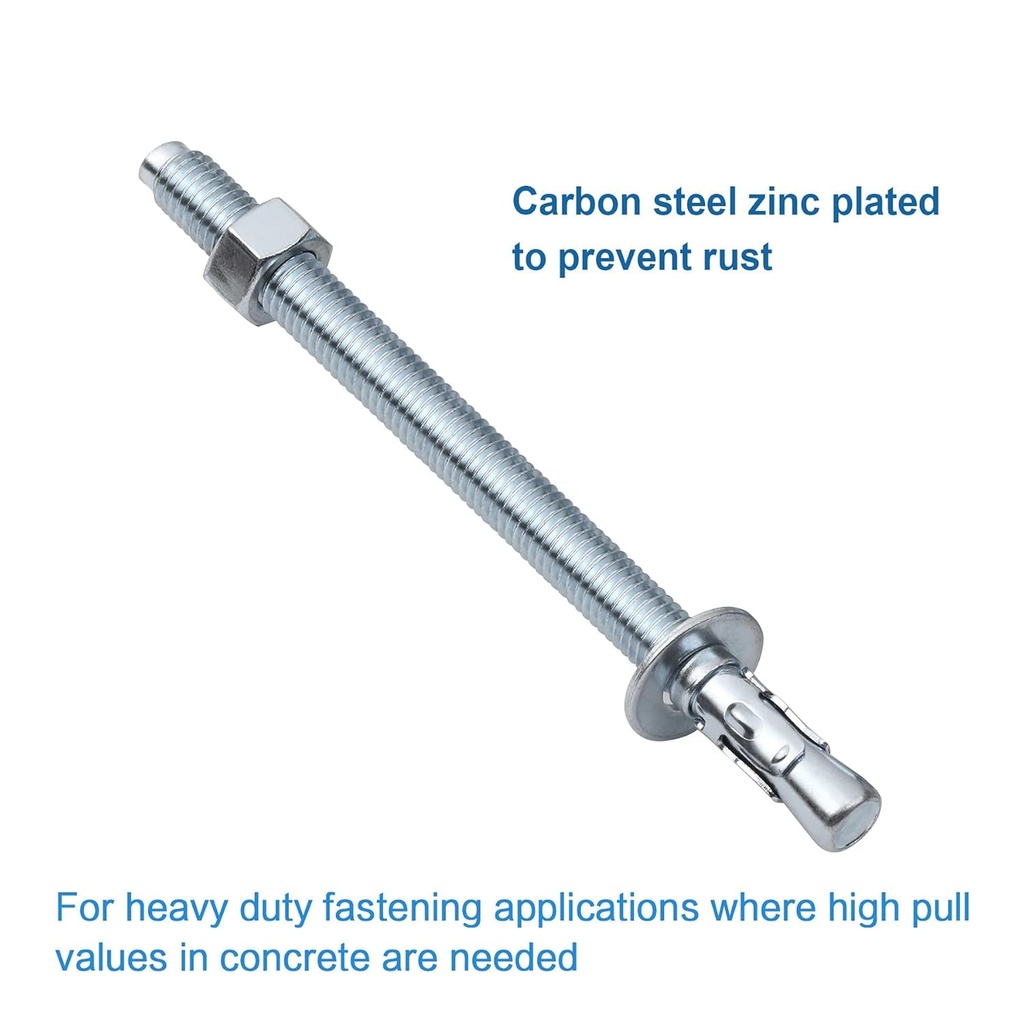

- Wedge anchor diameter: 3/8" | Length: 5" | Qty: 40 pieces. Our wedge anchor is made from high quality carbon steel, and is zinc plated to prevent rust

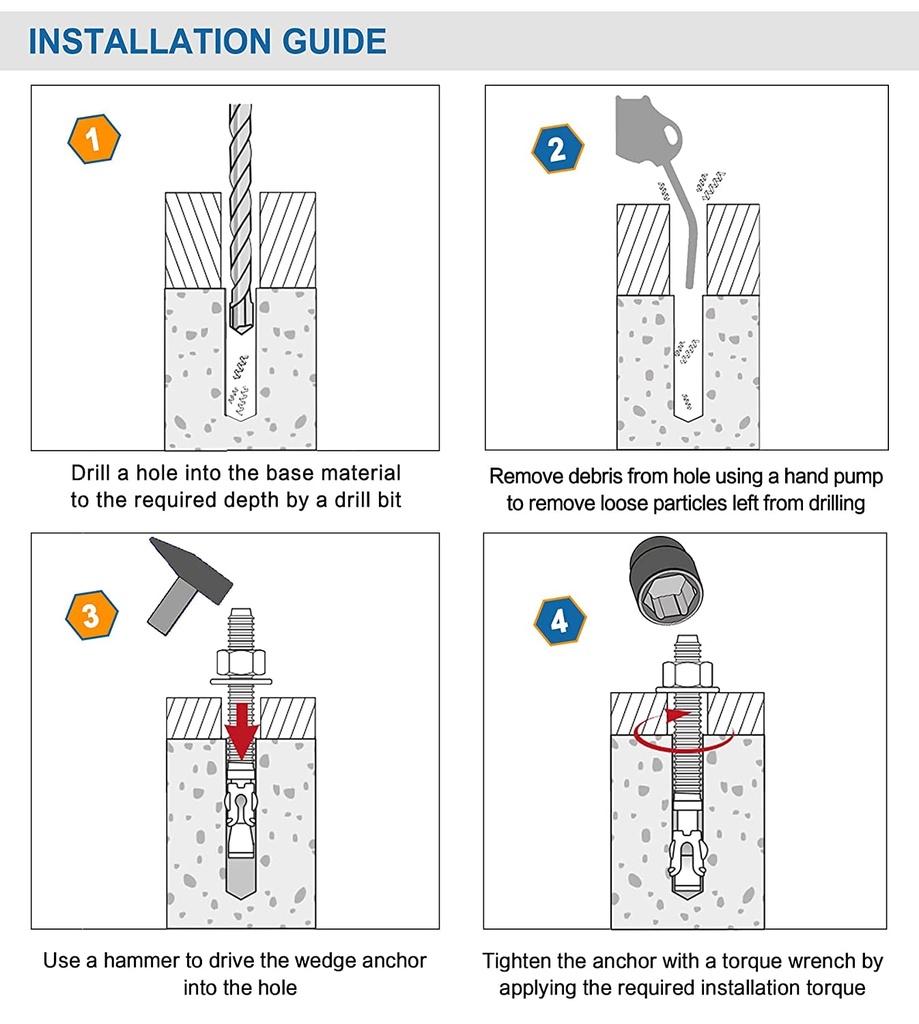

- Drill bit diameter/Hole diameter is the same as anchor diameter. Use a 3/8" drill bit to drill a hole in the base material (Concrete only)

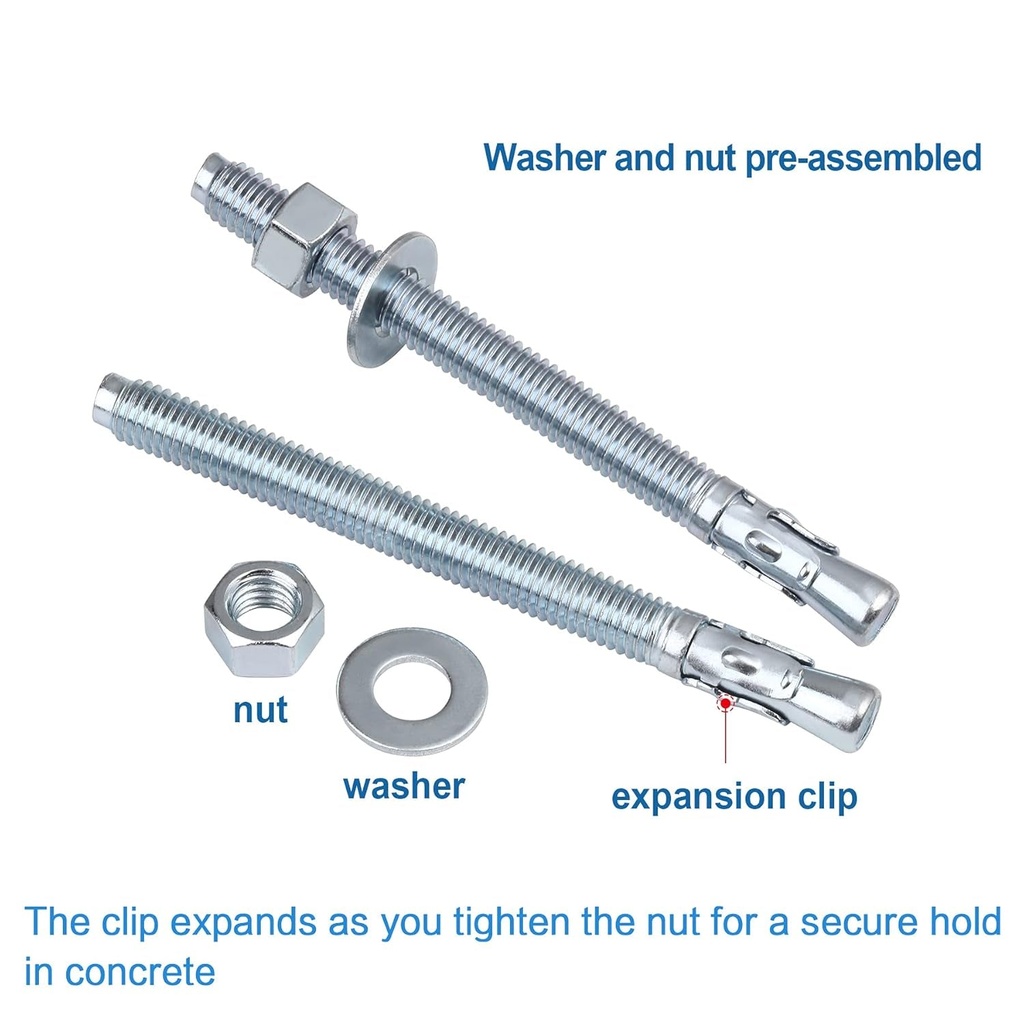

- The wedge anchor is a torque-controlled, wedge expansion anchor. The required installation torque of the anchor is 20 ft/lbs.
- The concrete anchor is for heavy duty fastening applications where high pull out values in concrete are needed. It is for concrete only, not for block or brick base material
- The wedge anchor is used in fastening sheet metal, steel and aluminum angles, or wood to concrete. The wedge anchor is ideal for structural anchorage, storage racking anchorage, machinery and hand rails installation
Application
The Anrik wedge anchor is made from high quality carbon steel, and is zinc plated. The concrete anchor is a torque-controlled, wedge expansion anchor for heavy duty fastening applications where high pull out values in concrete are needed. It is for Concrete only, not for block or brick base material

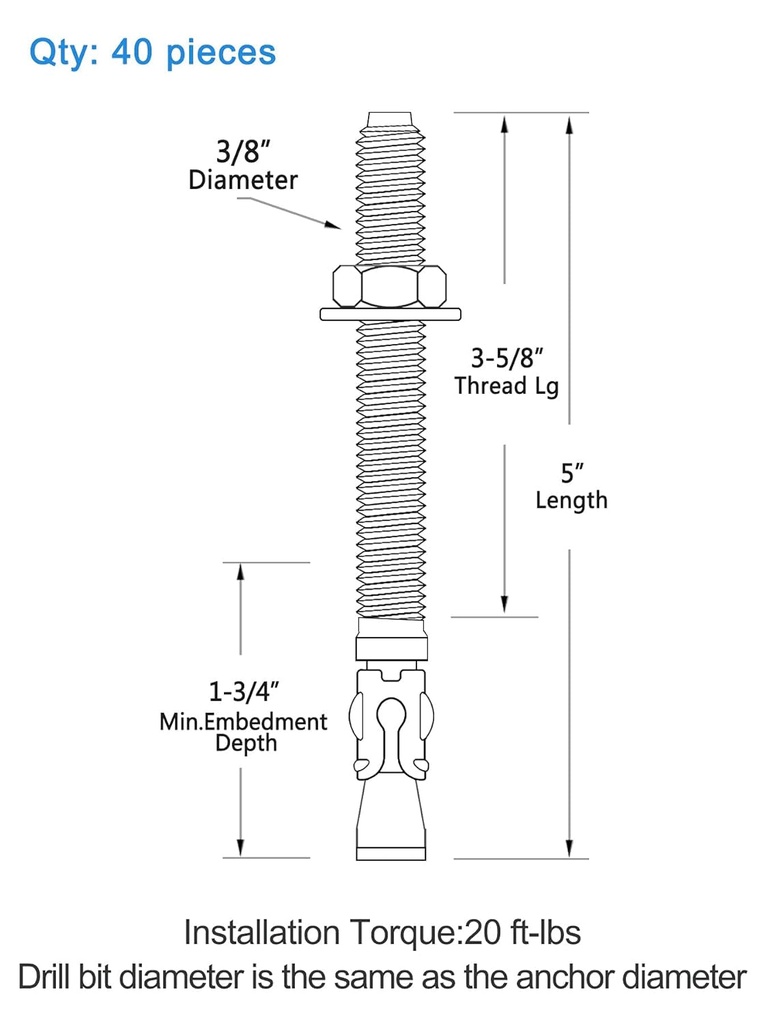

Diameter of Anchor
The diameter of the anchor is 3/8"
Length Anchor
The length of the anchor is 5"
Quantity: 40 pieces
Drill Bit Diameter/Hole Diameter
Drill bit diameter is the same as anchor diameter. Use a 3/8" drill bit to drill a hole in the base material (Concrete only)
Thread Length
The length of the threads on the anchor is 3-5/8" in length
Minimum Embedment Depth
The minimum embedment depth into the concrete is 1-3/4"
Torque Value
The required installation torque of the anchor is 20 ft/lbs
Maximum fixture thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for the anchor is 3-1/4". This will ensure that the minimum embedment depth of 1-3/4" will be met
Package Dimensions:
6.06 inches x 6.14 inches x 3.19 inches. Weight: 5.93 lb
Specification:
| Fastener Type | Stud Bolt |
| Number of Items | 40 |
| Color | Silver |
| Material | Carbon Steel |
| Thread Size | 3/8"-16 |
| Manufacturer | ANRIK |
| Exterior Finish | Zinc |
| Package Dimensions | 6.14 x 6.06 x 3.19 inches; 5.93 Pounds |
| Size | 3/8" x 5" |
