Heavy Duty Commercial Door Closer, DC8016 Automatic Door Closer, Surface-Mounted Auto Door Closer, Size 1-6 Commercial Door Closer Heavy Duty for Heavy Traffic Areas, Aluminum
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
- DOOR CLOSERS COMMERCIAL USAGE: The DC8016 (Slim Line) Automatic Door Closer from LYNN HARDWARE suits high-traffic entrances, such as aluminum storefronts, factories, schools, restaurants, and other public places. This is a door automatic closer for doors that weigh up to 150kg (330lbs max) and are (800-1500mm, 31-60 inch) wide. Also, it is a non-handed closer that will work on left- or right-handed doors exposed to extreme temperatures.

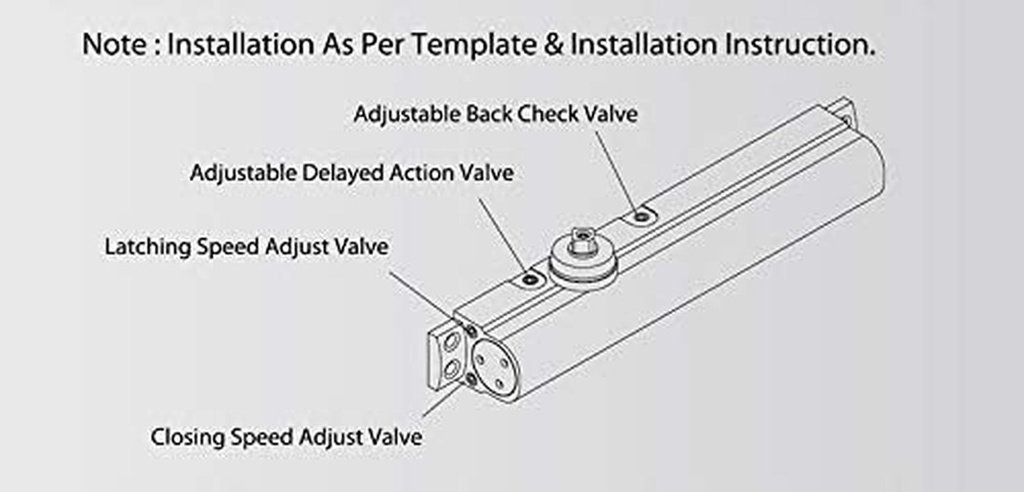

- MATERIAL: This door hydraulic closer is manufactured from US26D satin chrome-plated cast aluminum, wrought steel arm. It features a heat-treated piston and a powder-coated body to enhance corrosion resistance. The heavy-duty door closer features three valves for adjustable closing speed, latching speed, and backcheck. This automatic door closer latches while maintaining quiet operation.
- CERTIFICATIONS: These auto close door hinges have a UL-certified three-hour fire rating. LYNN HARDWARE closers also carry the ANSI / BHMA A156.4 certification. As ANSI Grade 1 commercial door hardware with 2 million cycles required, DC8016 suits medium to high-traffic applications, such as interior and exterior doors of department stores, offices, and more. This model also complies with accessible design standards.

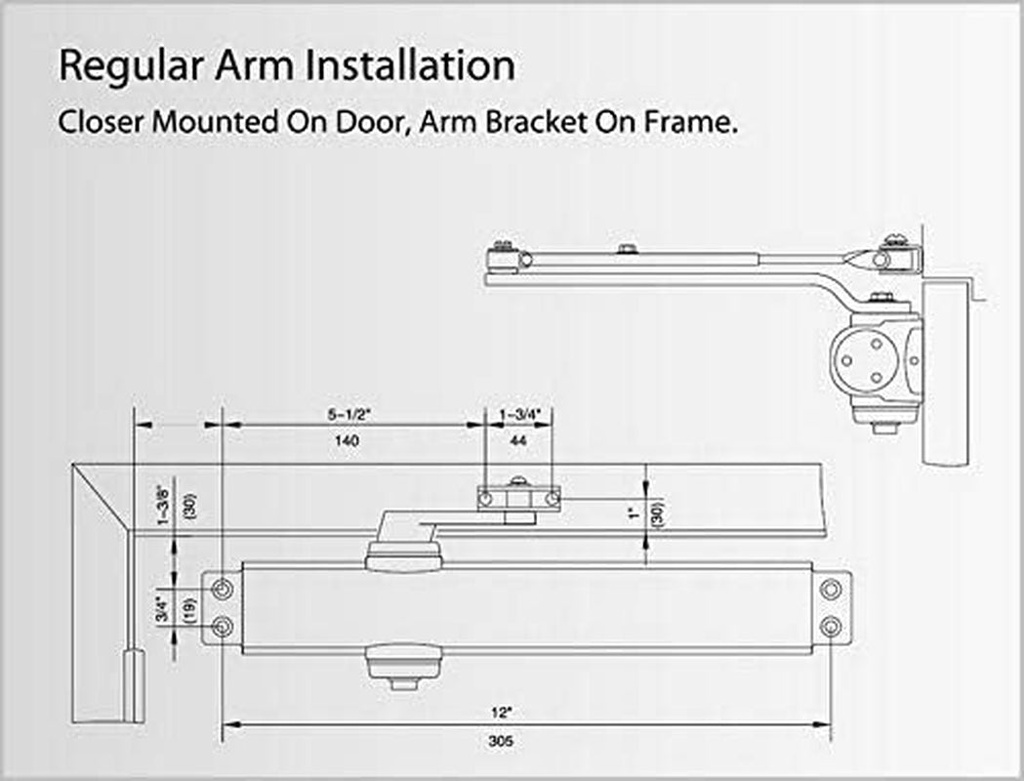

- INSTALLATION: Every pack of commercial door closer we provide contains all the necessary hardware, such as brackets and soffit plate, for installation using any of the 3 mounting types. The mounting options for our surface-mounted door closer are regular arm mounting (most power-efficient), top jamb mounting (fairly power-efficient), and parallel arm mounting (with 25% less power efficiency than the other 2 options).
- SPECIFICATIONS: This door closer weighs 7.4 pounds. Its screw/bolt pattern is 12" c-c wide and 3/4" c-c high. It has a footprint height of 2-7/8" (54 mm) and a weight of 13-1/16" (332 mm). This automatic door closer's projection is 2-1/8" (54 mm). It can deliver a fixed spring force #1-6 of 2-14 pounds or more of closing force.
Product Description
Functions as an Automatic Door Sweep
Experience the strength and reliability of the LYNN HARDWARE Heavy Duty Commercial Door Closer. Designed to handle even the busiest of traffic areas, the DC8016 model is the perfect solution for those in search of a durable and trustworthy door closer. With a surface-mounted and automatic design, installation and maintenance is a breeze. And, with a size 1-6 classification, this commercial door closer is capable of effortlessly handling even the heaviest of doors just like a door closing magnet. Constructed with sturdy aluminum, it's built to withstand the test of time and withstand the daily wear and tear of high-traffic environments. Keep your commercial space secure and protected.

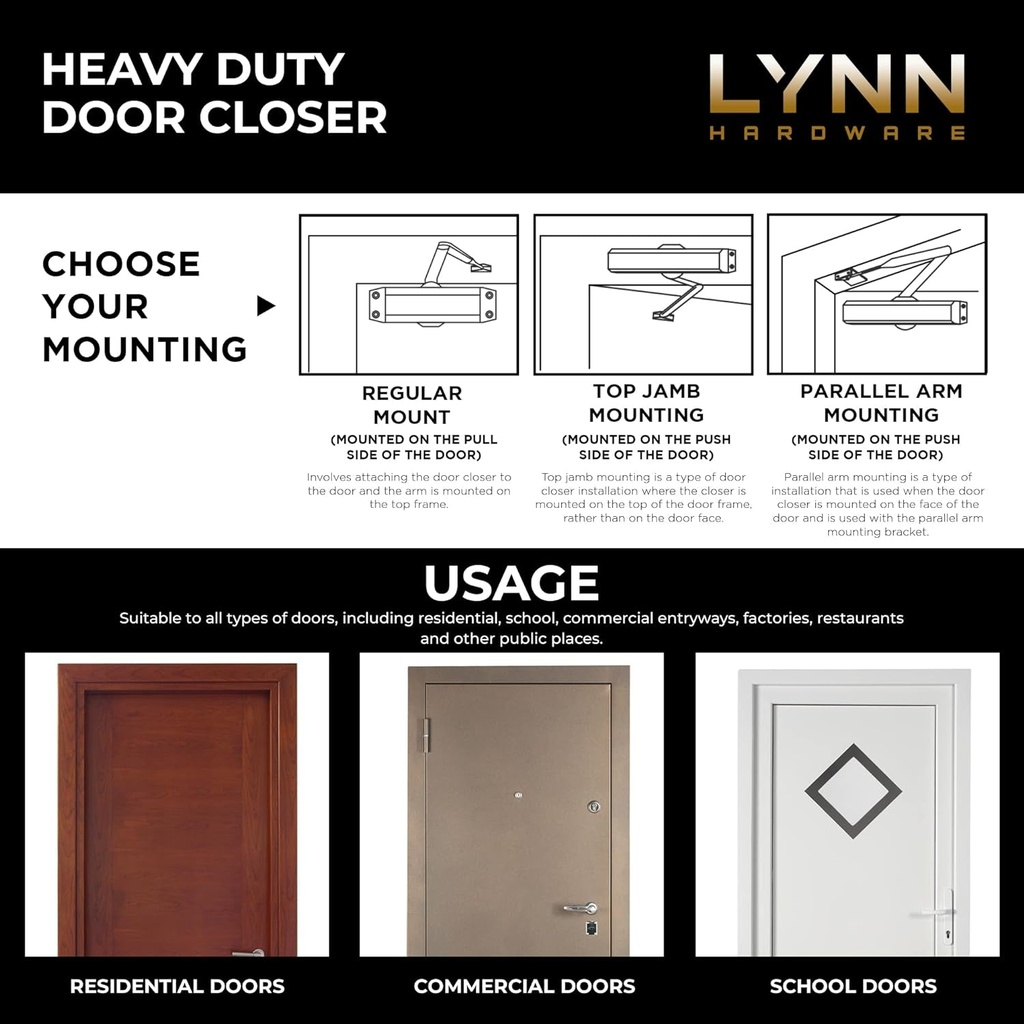

Regular MountingMounted on the Pull Side of the Door. It involves attaching the door closer to the door and the arm is mounted on the top frame. | Top Jamb MountingMounted on the Push Side of the Door. The top jamb mounting is a type of door closer installation where the closer is mounted on the top of the door frame, rather than on the door face. | Parallel MountingMounted on the Push Side of the Door. the parallel arm mounting is a type of installation that is used when the door closer is mounted on the face of the door and is used with the parallel arm mounting bracket. |
Lynn Hardware
Welcome to LYNN Hardware's Designer line of Commercial Door Closers. LYNN Hardware closers are beautifully designed and architecturally pleasing to give your entry, storefront, or opening a sharp looking closing device. We boast on high-quality construction and expert craftsmanship that gives architects, property managers, builders, contractors and other professionals piece of mind when they select the LYNN HARDWARE family of closers.
Elevate the Safety and Security
Add a touch of sophistication to your entry, storefront, or opening with the beautifully crafted LYNN Hardware closers. These closers are not only functional but also visually appealing, elevating the aesthetic of your space. With their sleek and architectural design, they bring a sense of harmony to any setting. The LYNN Hardware closers are a true masterpiece in both form and function, providing a sharp and elegant closing solution that complements your infrastructure's façade.
- Every pack of commercial door closer we provide contains all the necessary hardware such as brackets and soffit plate - No need to run to the hardware store; bundled in one convenient package.
- The adjustable power size allows for precise adjustments to the speed of the door, ensuring that it closes at the optimal speed for maximum efficiency, and reduces the risk of door malfunctions.
- Say goodbye to complicated and inconvenient door closers - designed for effortless installation and long-lasting durability, this means you can enjoy the convenience without worries of costly repairs
- Enjoy the peace of mind that comes with a highly efficient, durable, and convenient door closer that will last for years to come.
The Traditional American Heavy Duty Door Closer is your choice for commercial doors. This closer features a durable cast aluminum body and a wrought steel arm. The closer also has three valves for adjustable closing speed, latching speed, and backcheck. The adjustable backcheck and delayed action come standard, giving you more control over your door. ANSI A156.4 tested and certified, this door closer is an excellent choice for commercial applications.
| Customer Reviews | 4.7 out of 5 stars 168 | 4.3 out of 5 stars 92 | 4.7 out of 5 stars 222 | 4.5 out of 5 stars 292 | 4.1 out of 5 stars 87 |
|---|---|---|---|---|---|
| Price | $229.20$229.20 | $199.20$199.20 | $169.20$169.20 | $119.20$119.20 | $74.20$74.20 |
| CLOSER BODY MATERIA | CAST IRON | CAST ALUMINUM | CAST ALUMINUM | CAST ALUMINUM | CAST ALUMINUM |
| ADJUSTMENT VALVES | 4 valves (Closing, latch speed, Backcheck, & Delayed Action) | 4 valves (Closing, latch speed, Backcheck, & Delayed Action) | 3 valves (Closing, latch speed & Backcheck) | 3 valves (Closing, latch speed & Backcheck) | 2 valves (Closing and latch speed) |
| UL (3 hour) | ✓ | ✓ | ✓ | ✓ | ✓ |
| Door Weight Max | 330 pounds | 330 pounds | 330 pounds | 150 pounds | 150 pounds |
| Door Width Max | up to 60" | up to 60" | up to 60" | up to 36" | up to 36" |
| BHMA ANSI A156.4 | Grade 1 | Grade 1 | Grade 1 | Grade 2 | Grade 2 |
| Power Size | Adjustable Power 1-6 | Adjustable Power 1-6 | Adjustable Power 1-6 | Fixed Power #3 | Fixed Power #3 |
| Usage | Main entrances, Heavy Traffic areas and extra duty applications | High traffic interior and exterior Doors | Aluminum Store Fronts and Office Buildings | Offices and suite entry doors | Interior and Light Commercial Doors |
| Available Finishes | Aluminum, Dark Bronze, Painted Brass & Matte Black | Aluminum, Dark Bronze, Painted Brass & Matte Black | Aluminum, Matte Black & Dark Bronze | Aluminum, Dark Bronze, Matte Black & Painted Brass | Aluminum, Dark Bronze & Painted Brass |
Package Dimensions:
5.51 inches x 14.06 inches x 2.91 inches. Weight: 6.0 lb
Specification:
| Item model number | DC8016-BC-DA |
| Part Number | LYNN-DC8016-BC-DA-ALUM |
| Style | Grade 1 |
| Item Package Quantity | 1 |
| Color | Aluminum |
| Product Dimensions | 14.06 x 5.51 x 2.91 inches |
| Material | Aluminum |
| Batteries Required? | No |
| Item Weight | 6 Pounds |
| Installation Type | Screw-In |
| Batteries Included? | No |
| Recommended Uses For Product | high-traffic entrances, aluminum storefronts, factories, schools, restaurants, public places |
| Manufacturer | LYNN HARDWARE |
| Size | Heavy Duty |
| Exterior Finish | Aluminum |
| Brand | LYNN HARDWARE |

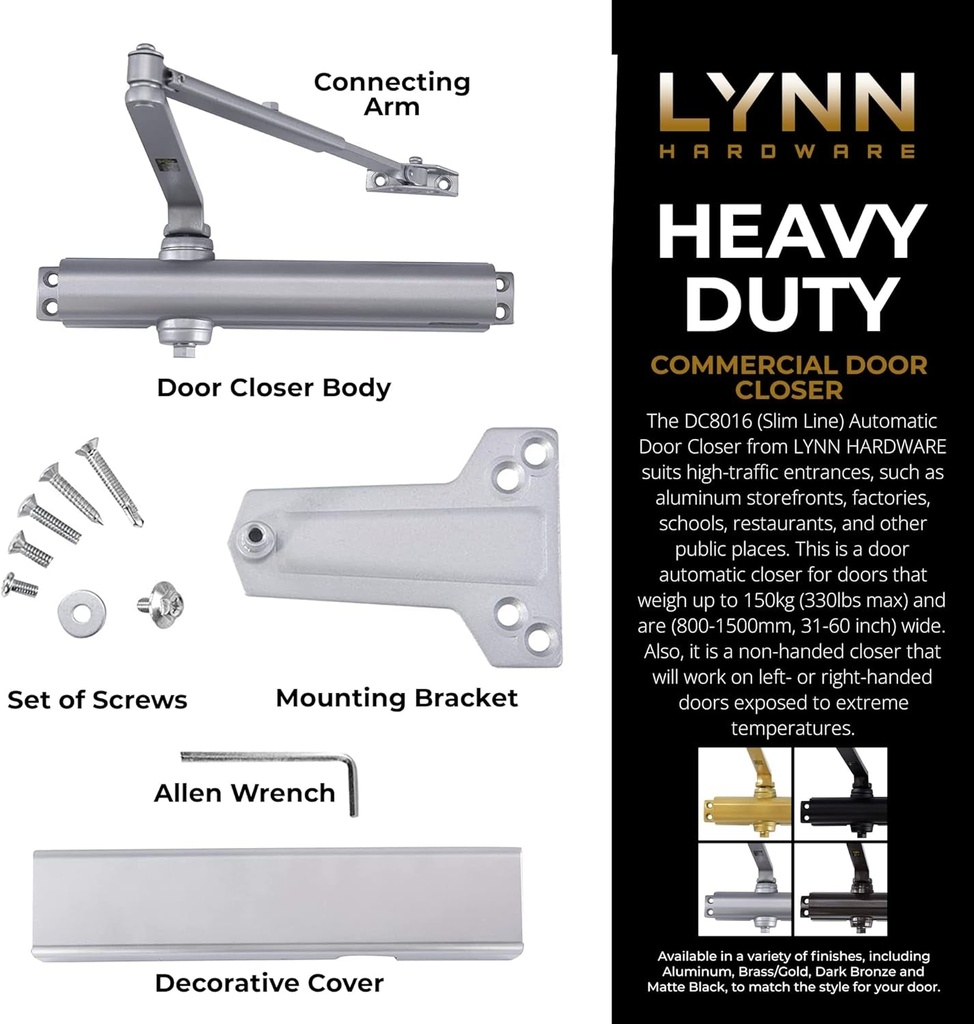

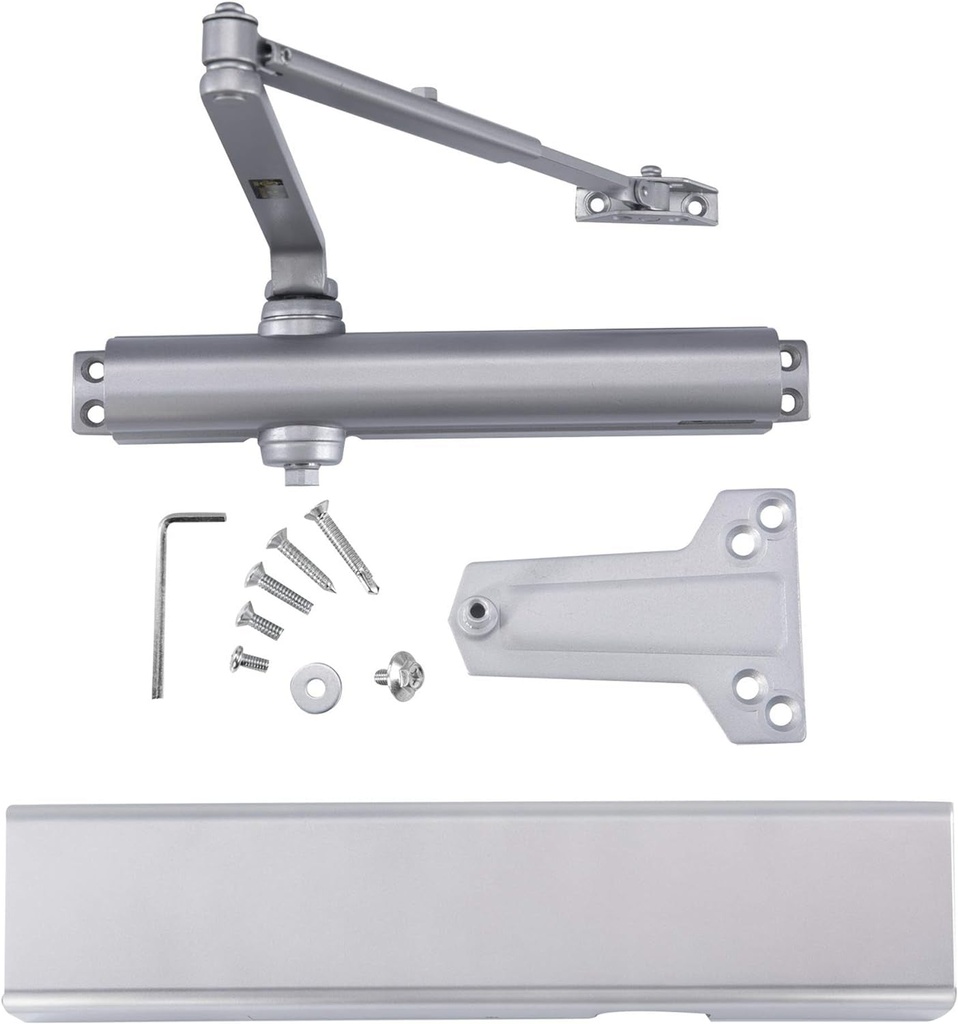

| Included Components | Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations |
