Pivot Hinge, Heavy Duty Hidden Door Hinge for Wood Secret Door, Pivot Door Hardware for Hidden Door Bookcase, 360 Degree Rotation Stainless Steel Invisible Pivot Hinge System – Black
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
3-6 days (Domestic)
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
- STURDY METAL CONSTRUCTION: The pivot hinge is made of high quality stainless steel, which was welded by professional welders. Excellent process makes door pivot hinges rustproof, corrosion resistance, sturdy and durable.
- PERFECT FOR HIDDEN DOORS: This pivot hinge works great for building a secret door. And the hidden door hinge can 360 degree rotation. Great for Hidden Door Bookcase, Secret Door Bookcase, Bookshelf Door, Cabinet Door, Panel Door and etc.
- HIGH LOAD-BEARING: Be different from traditional door hinges, our hidden door hinge is a unique design structure of up and down link, replaces to traditional door frame butt hinges, which are supported by the bottom arm and floor instead of the frame, thereby reducing stress on the frame. It can withstand a weight of 260kg/573 pounds.
- EASY TO INSTALL: It comes with a manual that lists each step of the installation, and if you follow it, you will easily install the pivot door hardware.
- EXCELLENT SERVICE: To ensure quality, each of our pivot hinges undergoes strict quality control before leaving the factory. If you have any questions about our hidden door hinges outswing, please contact us with no hesitation, we will reply you within 24 hours and give you a satisfactory solution!
- PACKAGE INCLUDED: 1 set of Pivot Hinge, 1 Ball Catch Hardware, 30 pcs Screws. It comes with top and bottom hinge.
Product Description
Why Do You Choose Our Heavy Duty Pivot Hinges?

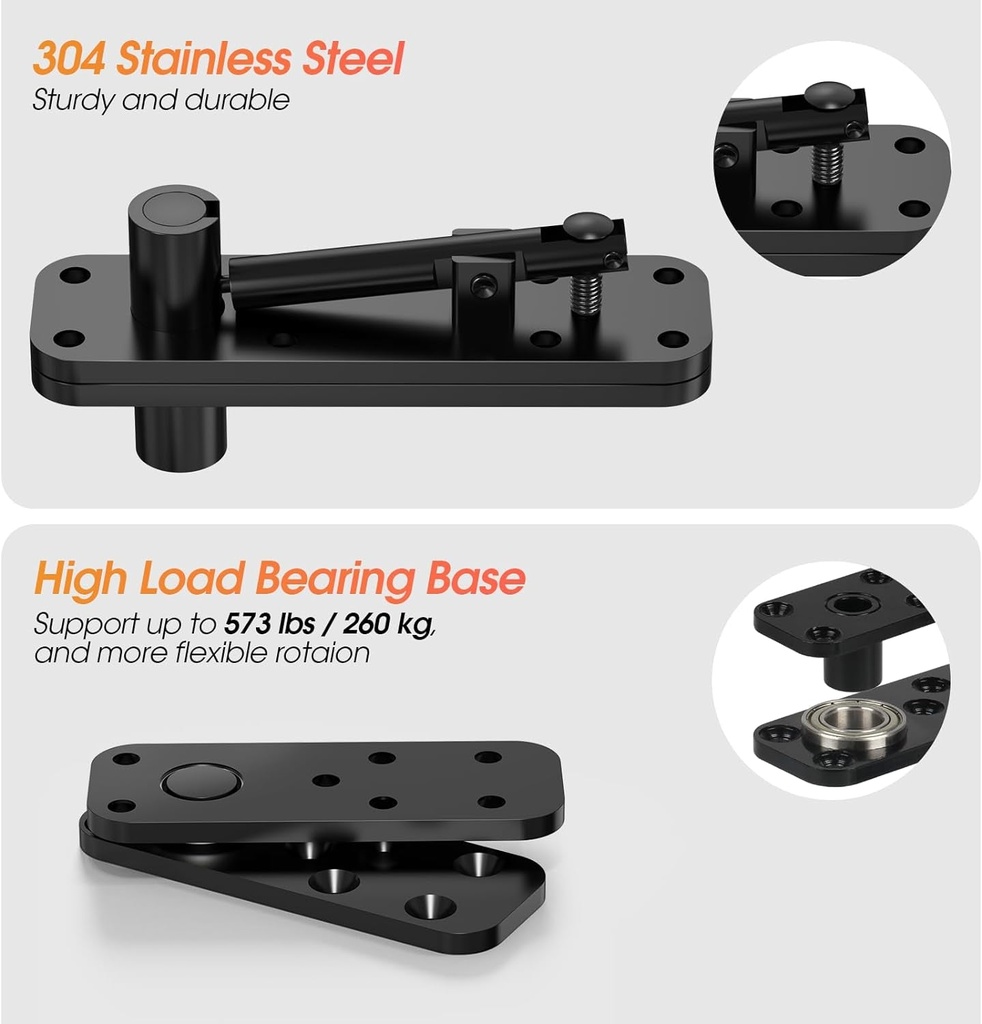

High Load Bearing Base:Each pivot hinge support up to 573 lbs / 260 kg. | Good Material:The pivot hinges are made of high quality 304 Stainless Steel, sturdy and durable. | Ball Catch Hardware:Keep doors closed and open door easily. |

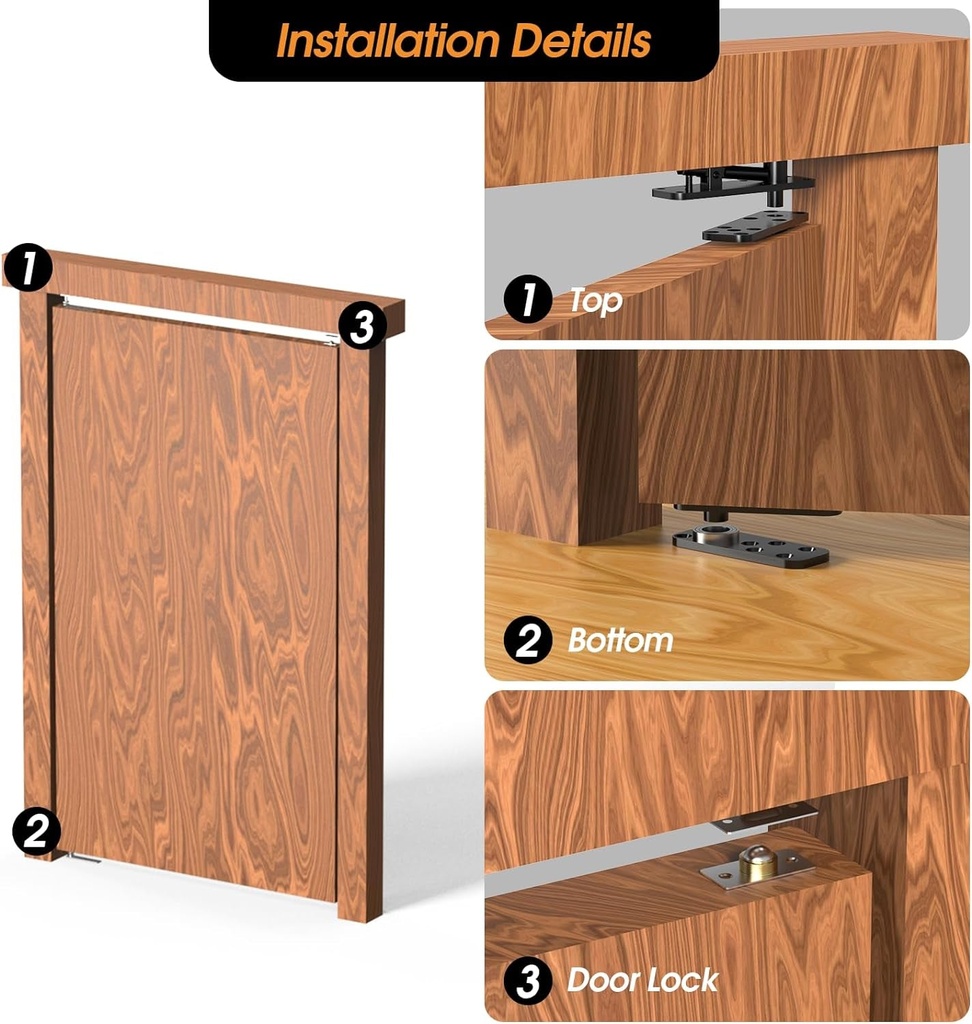

Installation Steps
Step 1:
Dig grooves in corresponding doors and door frames.
Step 2:

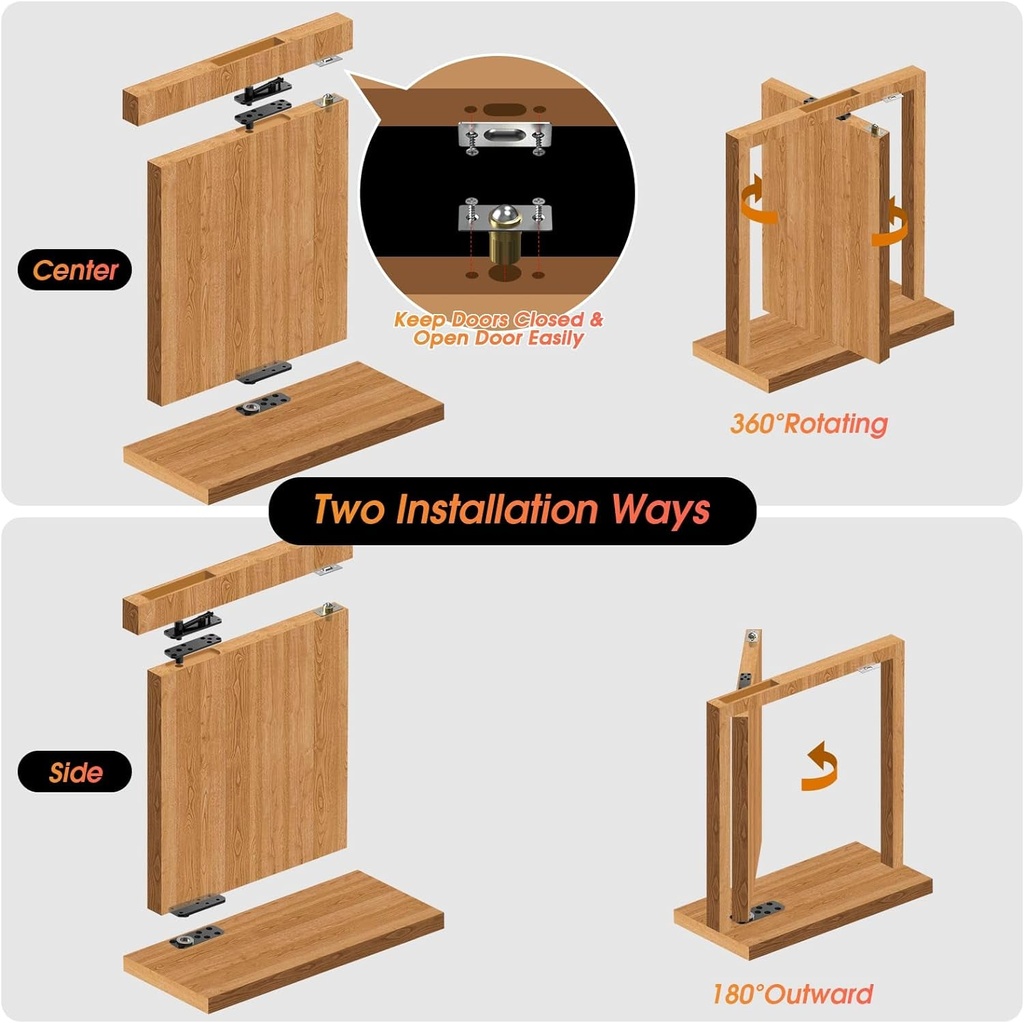

Install the upper and lower swivel shafts according to the installation diagram above. Ensure that the centers of the swivel shafts are in the same straight line and then fix screws initially.
Place door on bottom pivot and raise door to vertical position.

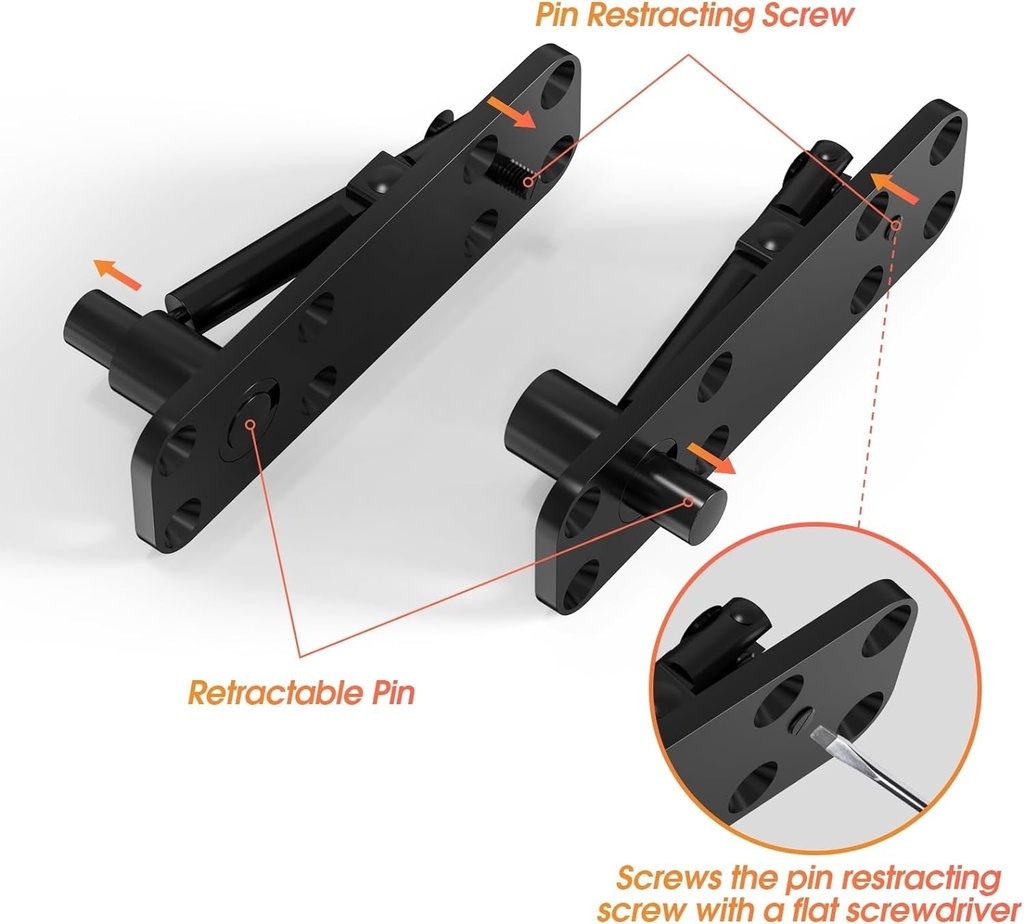

Engage top pivot restractable pin by screwing the restracting screw when the top pivot hinge is aligned.
Step 3:
Install door ball catch hardware between the door and frame to maintain the door in an open or closed state better.
Step 4:
Turn the door shaft back and forth. If it turns noiselessly and smoothly, tighten the screws fully and the installation is complete.If it is not as smooth as you would like, fine-tune the position of swivel shafts to make it smoother.

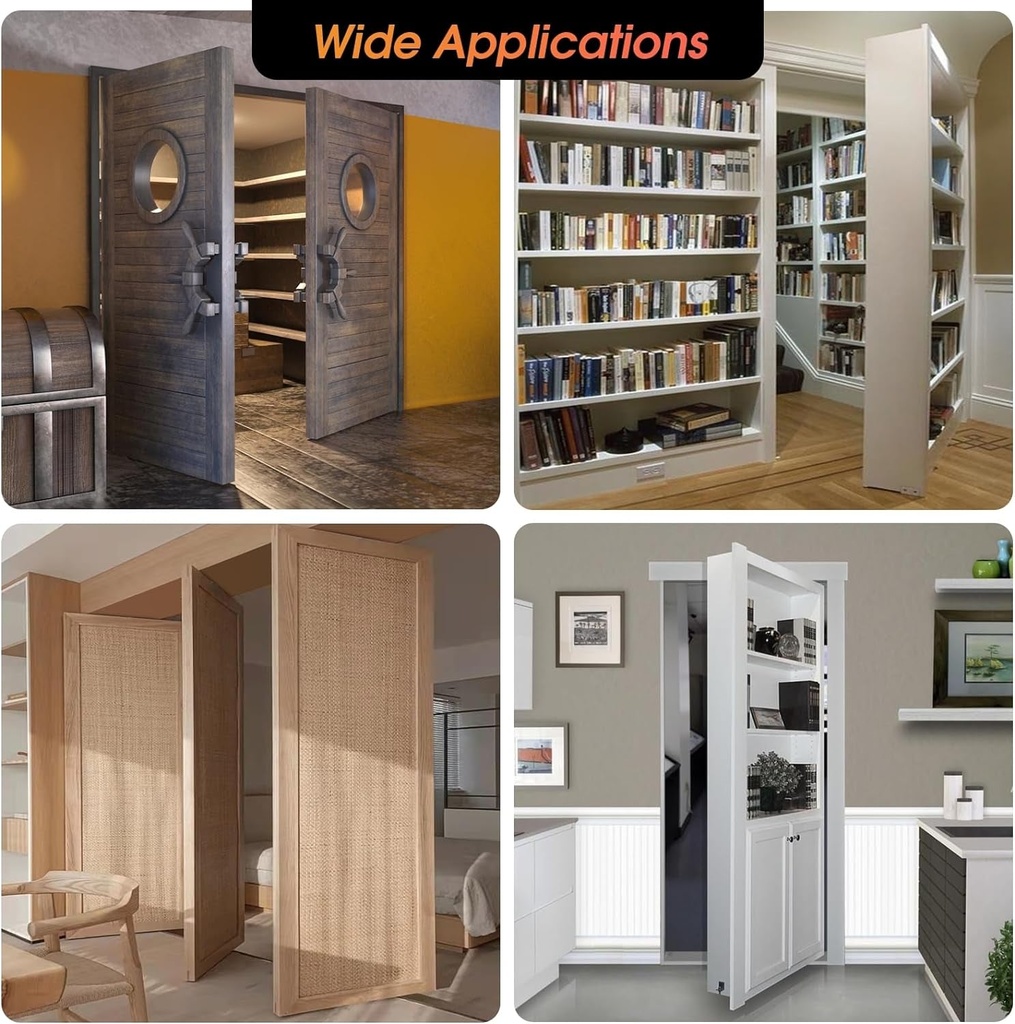

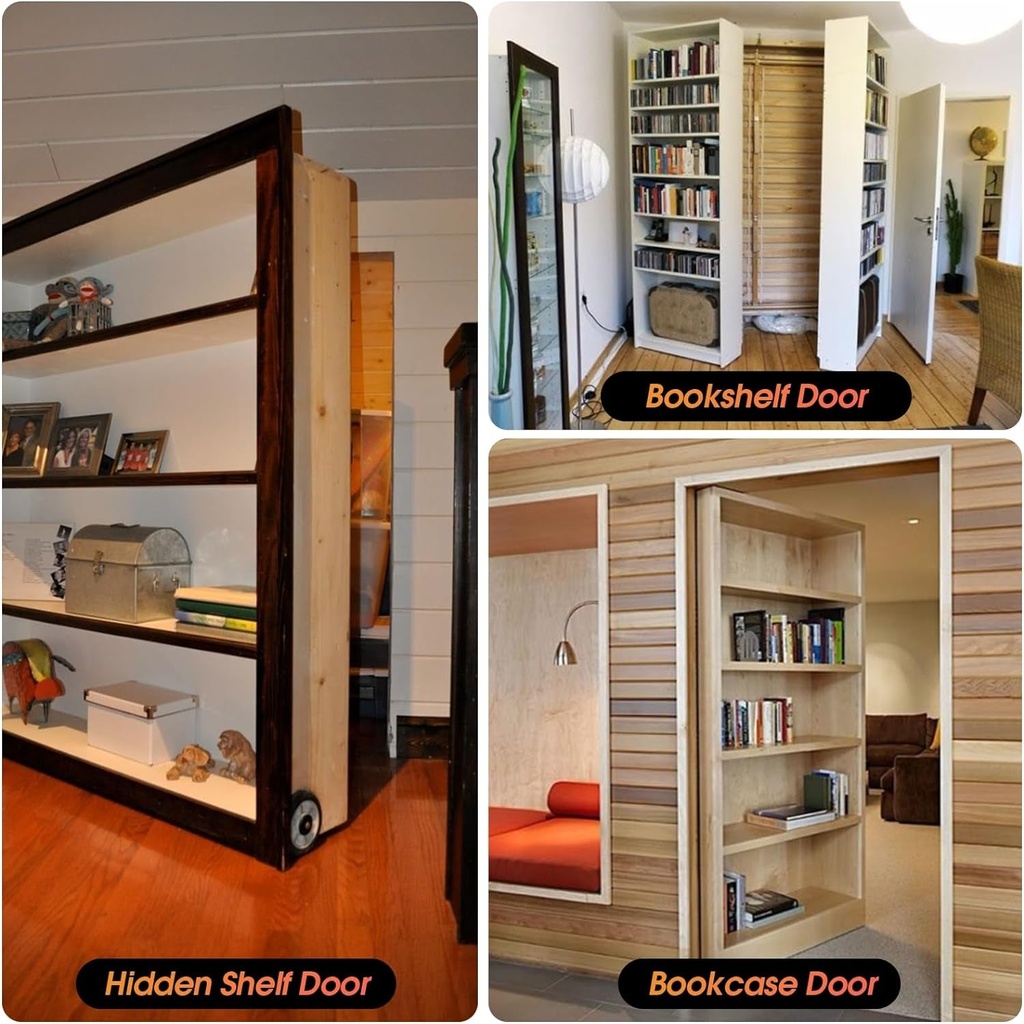

Great for Hidden Door Bookcase, Secret Door Bookcase, Bookshelf Door, Cabinet Door, Panel Door and etc.
Specifications:
- Material: 304 Stainless Steel
- Color: Black

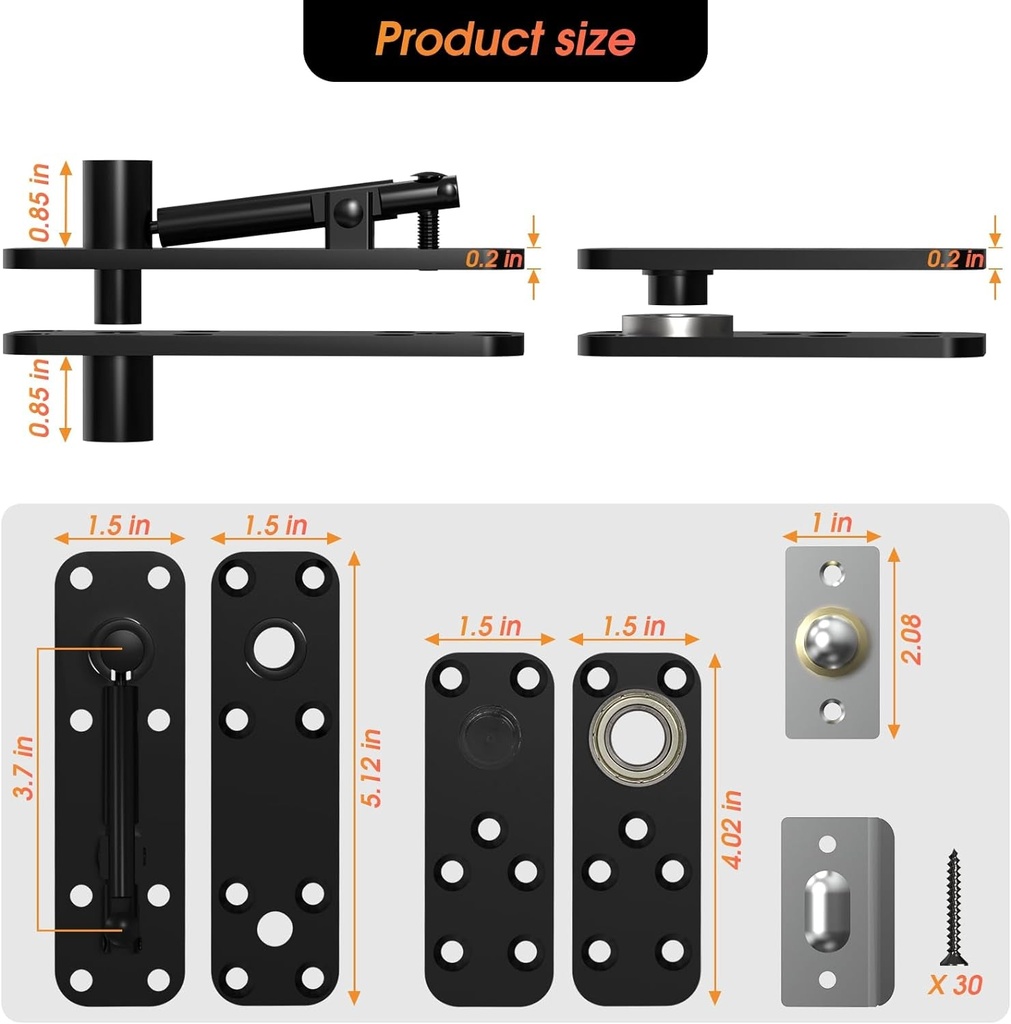

- Dimension: Top Part 130mm*38mm/5.12"*1.5"
- Bottom Part 102mm*38mm/4.02"*1.5".
- Quantity:1 Set of Pivot Hinge (top and bottom hinge), 1 Ball Catch Hardware, 30 pcs Screws
| Customer Reviews | 4.1 out of 5 stars 27 | 4.1 out of 5 stars 27 | 4.1 out of 5 stars 27 | 4.1 out of 5 stars 27 | 4.0 out of 5 stars 56 |
|---|---|---|---|---|---|
| Price | $50.99$50.99 | $33.99$33.99 | $22.99$22.99 | $29.99$29.99 | $24.99$24.99 |
| Load-Bearing | 573 pounds | 300 pounds | 220 pounds | 300 pounds | |
| Rotation Angle | 360 Degree Rotation | 360 Degree Rotation | 180 Degree Rotation | 360 Degree Rotation | |
| with Ball Catch Hardware | ✓ | ✓ | ✓ | ||
| Rustproof | ✓ | ✓ | ✓ | ✓ | ✓ |
Package Dimensions:
1.0 inches x 1.0 inches x 1.0 inches. Weight: 2.31 lb
Specification:
| Item model number | 28JJ2310251729B-us |
| Part Number | PHHD570 |
| Style | Modern |
| Finish | Powder Coated |
| Mounting Type | Door Mount |
| Color | Large |
| Product Dimensions | 1 x 1 x 1 inches |
| Material | Stainless Steel |
| Country of Origin | China |
| Batteries Required? | No |
| Item Weight | 2.31 pounds |
| Manufacturer | Aglehome |
| Batteries Included? | No |
| Number Of Pieces | 1 |
| Finish Type | Powder Coated |
| Brand | Aglehome |
| Included Components | stainless steel screws, Door Ball Catch Hardware |
