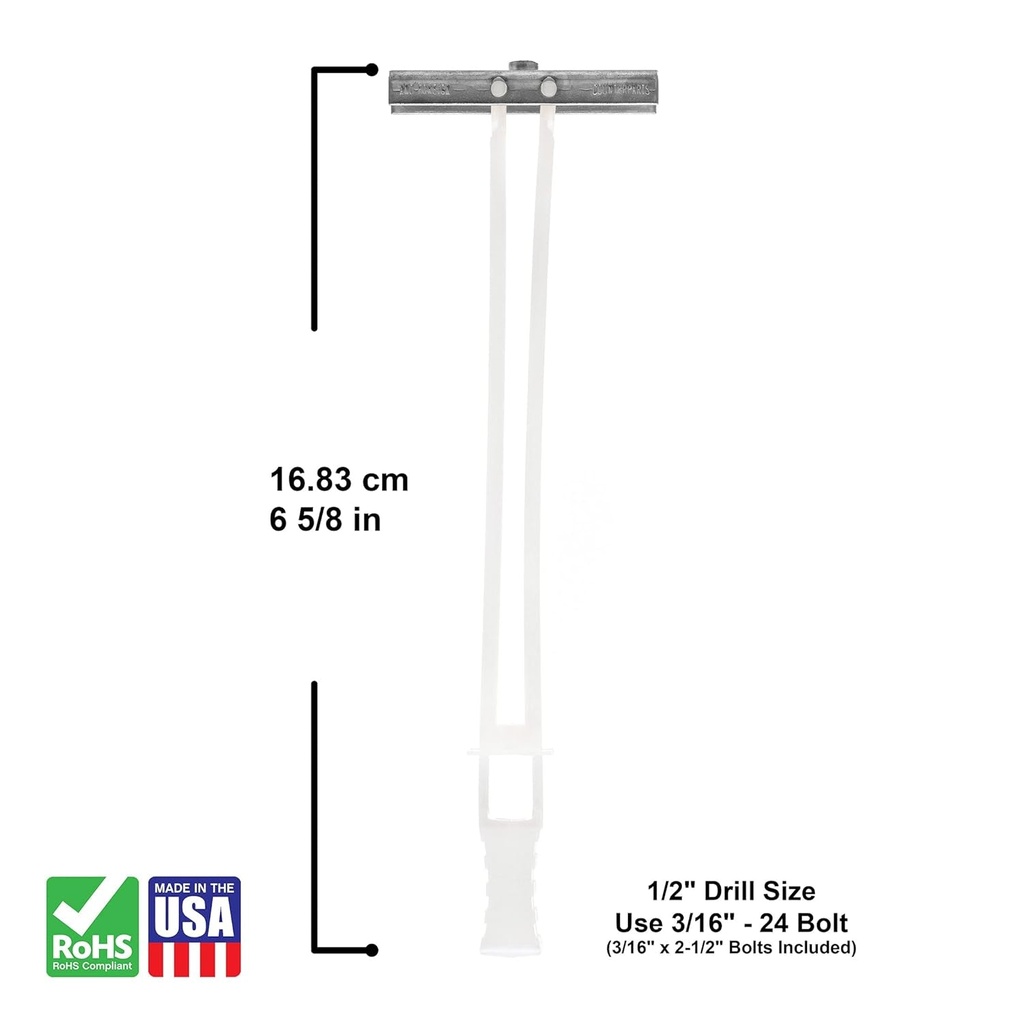

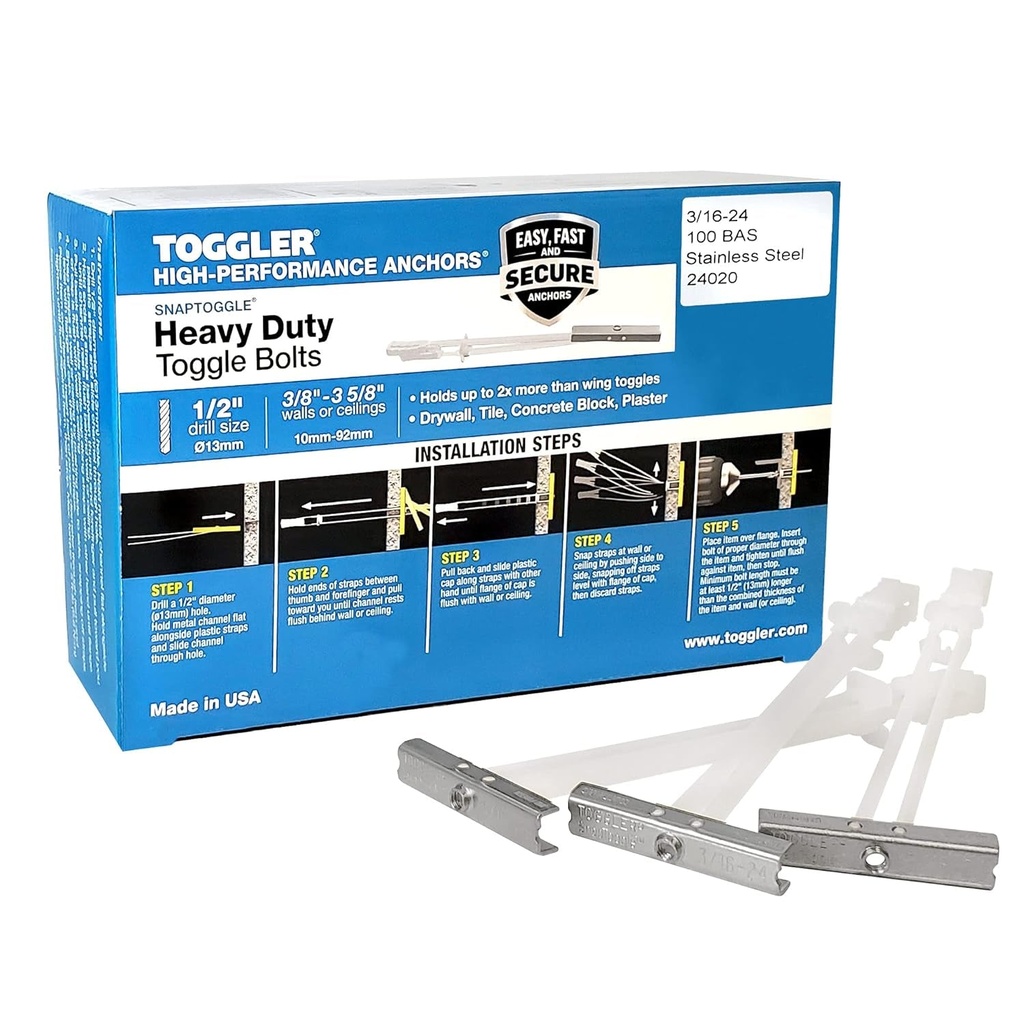

TOGGLER SNAPTOGGLE BAS Toggle Anchor, 304 Stainless Steel Channel, Made in US, 3/8" to 3-5/8" Grip Range, for 3/16"-24 UNC Fastener Size (Pack of 100)
-
5% off when you buy 4 or more.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above A$300.
-
Orders are processed and shipped from Victoria, Australia.
Free return pickup available
We’ll handle returns from your doorstep at no extra cost.
Estimate delivery times: 12-26 days (International).
3-6 days (Domestic)
3-6 days (Domestic)
Guaranteed Safe Checkout
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.

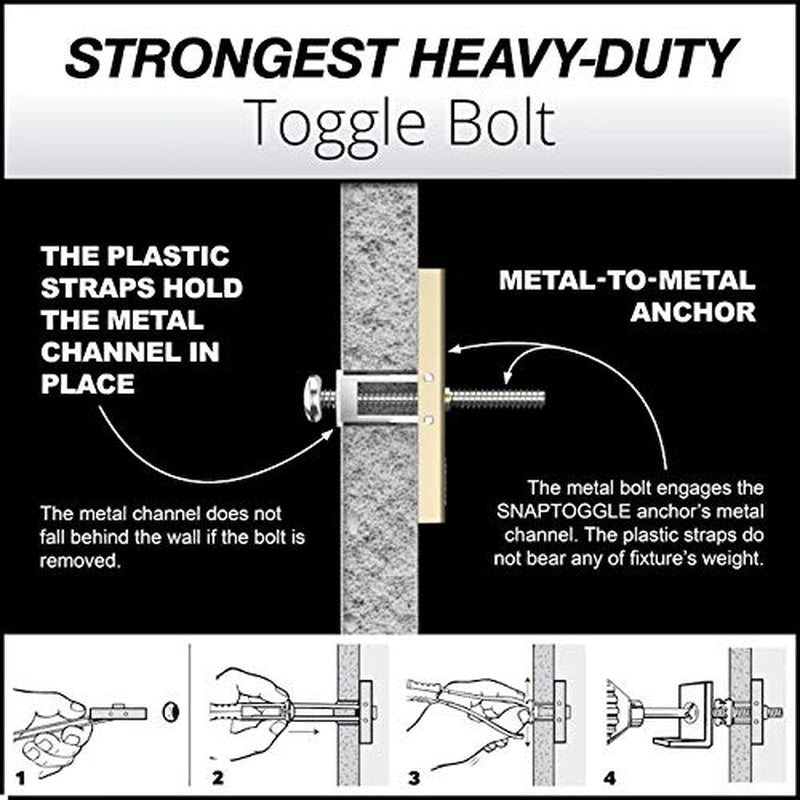

- Toggle anchor installs behind 3/8"- to 3-5/8"-thick hollow materials including gypsum board, drywall, and concrete block to provide a secure hold from within the mounting material
- Anchor affixes to the wall before adding the bolt and fixture, allowing one-person installation and fixture changes
- Made in USA, and works with 3/16"-24 UNC-threaded metal bolts (sold separately)
- Ultimate tensile strength is 238 lb. in 1/2" drywall and 802 lb. in concrete block with a 3/16"-24 UNC bolt
- Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)
Product Description
TECHNICAL SPECIFICATIONS
| Brand Name | TOGGLER |
| Channel: Materials / Finishes | Yellow zinc-plated cold rolled steel or 304 stainless steel |
| Straps & Handle: Materials | High impact polystyrene |
| Cap/Hat: Materials / Finishes | Translucent polypropylene co-polymer |
| Plating | ASTM B633, SC1, Type III, (Fe/Zn 5) |
| Minimum screw length: | Thickness of wall or ceiling + thickness of item being fastened + 1/2" |
| Grip Range: BA & BB | 3/8" - 3-5/8" |
| Grip Range: BC, BD & BE | 3/8" - 2-1/2" |
| Grip Range: BAL & BBL | 2" - 9-1/2" |
| Min clearance behind wall: | 1-7/8" |
| Customer Reviews | 4.8 out of 5 stars 133 | 4.4 out of 5 stars 245 | 4.6 out of 5 stars 291 | — | 5.0 out of 5 stars 4 | 3.9 out of 5 stars 12 |
|---|---|---|---|---|---|---|
| Price | $66.99$66.99 | $33.99$33.99 | $33.99$33.99 | — | — | — |
| Item # | 24100 | 25013 | 25014 | 25020 | 21050 | 21022 |
| Package Qty | 100 | 50 | 50 | 50 | 50 | 25 |
| Bolts Included | ✓ | X | X | X | X | X |
| UNC Fastener Size | 3/16-24 | 3/16-24 | 1/4-20 | 3/16-24 | 1/4-20 | 3/8-16 |
| Model | BA | BA | BB | BAS | BBL | BCS |
| Grip Range | 3/8" - 3-5/8" | 3/8" - 3-5/8" | 3/8" - 3-5/8" | 3/8" - 3-5/8" | 2" - 9-1/2" | 3/8" - 2-1/2" |
| Ultimate Tensile Pull-Out Values (lbs) - 1/2" Drywall | 238 lb's | 238 lb's | 265 lb's | 238 lb's | 265 lb's | 275 lb's |
| Ultimate Tensile Pull-Out Values (lbs) - 5/8" Drywall | 356 lb's | 356 lb's | 356 lb's | 356 lb's | 356 lb's | 576 lb's |
| Ultimate Tensile Pull-Out Values (lbs) Concrete Block | 802 lb's | 802 lb's | 1,080 lb's | 802 lb's | 1,080 lb's | 1,745 lb's |
Package Dimensions:
5.5 inches x 8.3 inches x 5.3 inches. Weight: 2.5 lb
Specification:
| Item model number | 24020 |
| Fastener Type | Cap, Bolt, Stud |
| Color | White, Grey |
| Brand | TOGGLER |
| Material | Stainless Steel, Plastic |
| Size | One Size |
| Package Dimensions | 8.3 x 5.5 x 5.3 inches; 2.5 Pounds |
| Manufacturer | Mechanical Plastics Corp. |
