Vertical Heat Press Machine-Heat Set Insert Tools with 370Pcs Threaded Inserts and Heat Set Tips M2/M2.5/M3/M4/M5/M6(1/4)/M8 Add Brass Nuts for Threaded Inserts for Plastic and 3D Printing Components

Price:

A$ 134.87
  2. Shop
  3. Vertical Heat Press Machine-Heat Set Insert Tools with 370Pcs Threaded Inserts and Heat Set Tips M2/M2.5/M3/M4/M5/M6(1/4)/M8 Add Brass Nuts for Threaded Inserts for Plastic and 3D Printing Components

Vertical Heat Press Machine-Heat Set Insert Tools with 370Pcs Threaded Inserts and Heat Set Tips M2/M2.5/M3/M4/M5/M6(1/4)/M8 Add Brass Nuts for Threaded Inserts for Plastic and 3D Printing Components

https://secretgreen.com.au/web/image/product.template/3288/image_1920?unique=3e2d1d0
(0 review)

A$ 134.87 134.87 AUD A$ 134.87 Tax Included

Not Available For Sale

(A$ 0.00 / Units)

Includes all duty and taxes

This combination does not exist.

Contact Us
Contact Us
  • Buy Four or More Offer

    5% off when you buy 4 or more.

    Details
  • Next Purchase Offer
    Get 5% off your next purchase.
    Details
  • Delivery Offer

    Enjoy free delivery on orders above A$300.

  • Ships From
    Orders are processed and shipped from Victoria, Australia.
Free Return Pickup
Free return pickup available
We’ll handle returns from your doorstep at no extra cost.
Delivery Detail
Estimate delivery times: 12-26 days (International).
3-6 days (Domestic)
Safe Checkout
Guaranteed Safe Checkout
Return Policy

30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.

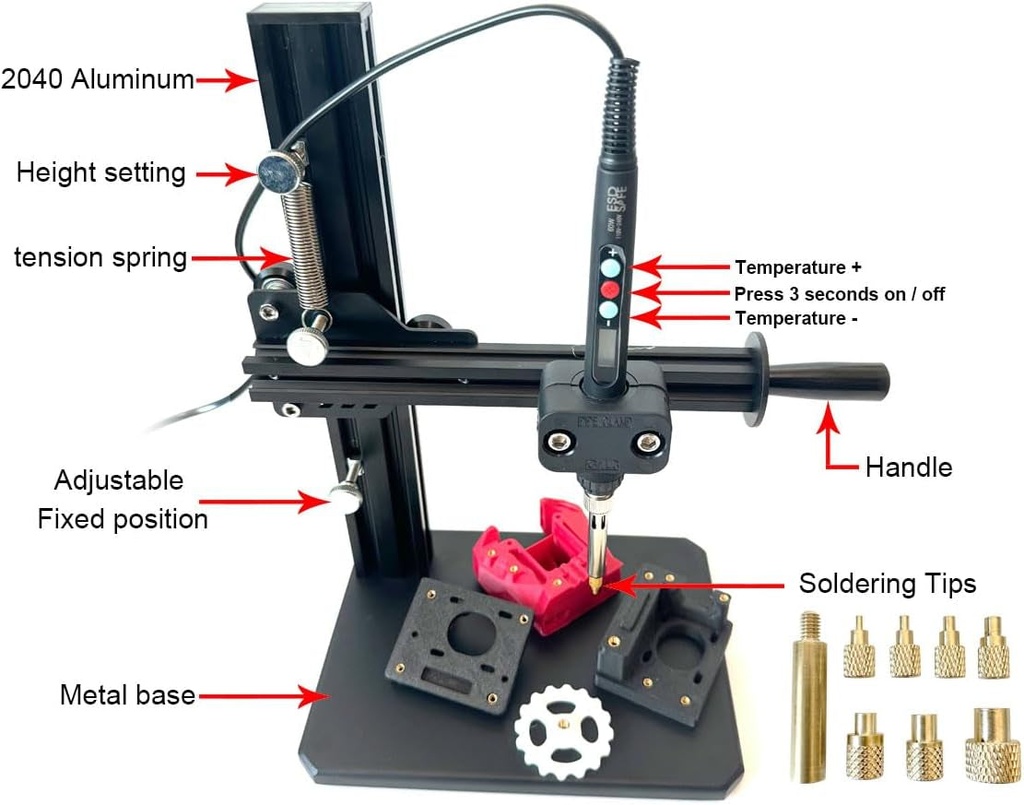

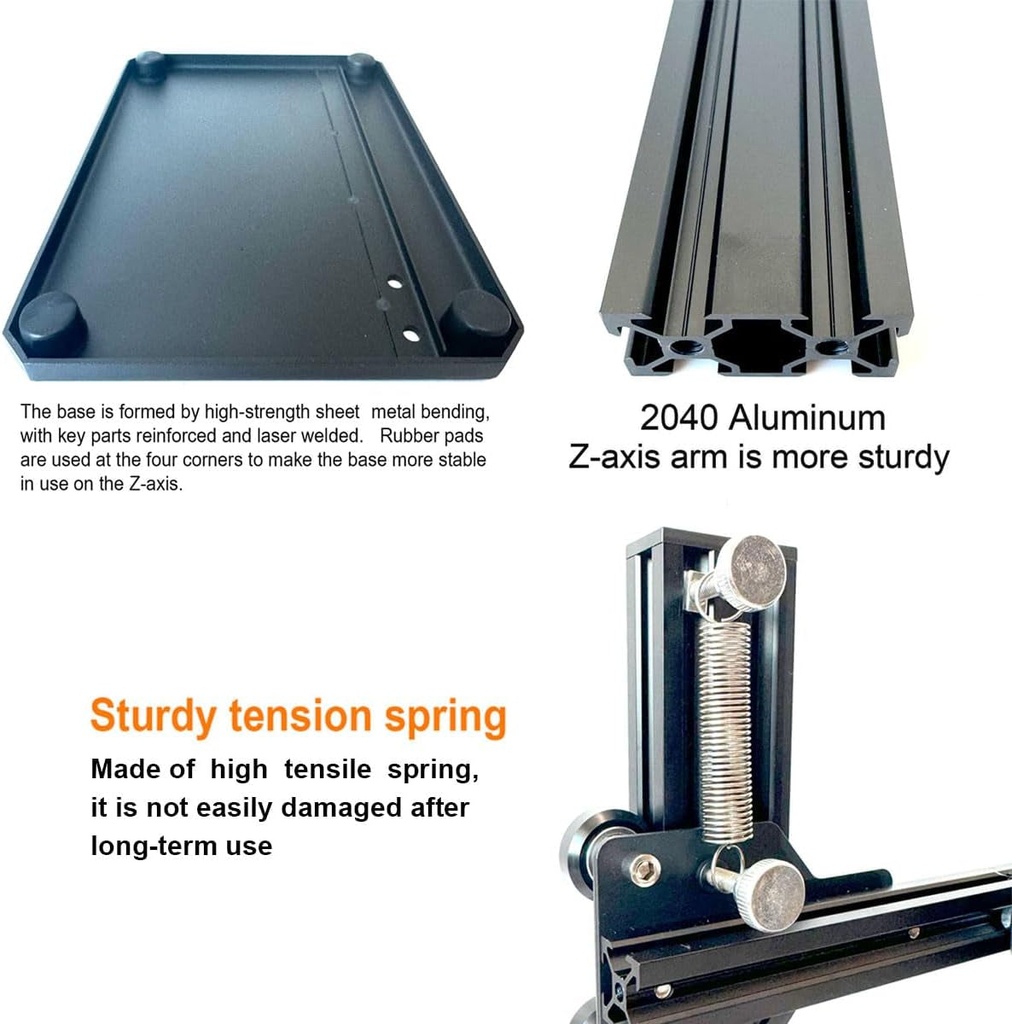

  • The base is made by bending and welding sheet metal, and reinforced welding is added at the bottom, equipped with anti slip foot pads. The Z-axis is a widened 2040 aluminum profile, which provides sufficient strength when the structure is pressed down. Three large V-shaped pulleys are tightly matched with the 2040 aluminum profile, and only one V-shaped pulley needs to be adjusted to clamp the aluminum profile. The metal tension spring can be used repeatedly without deformation, and it is easier to adjust the insertion height by hand tightening the nut

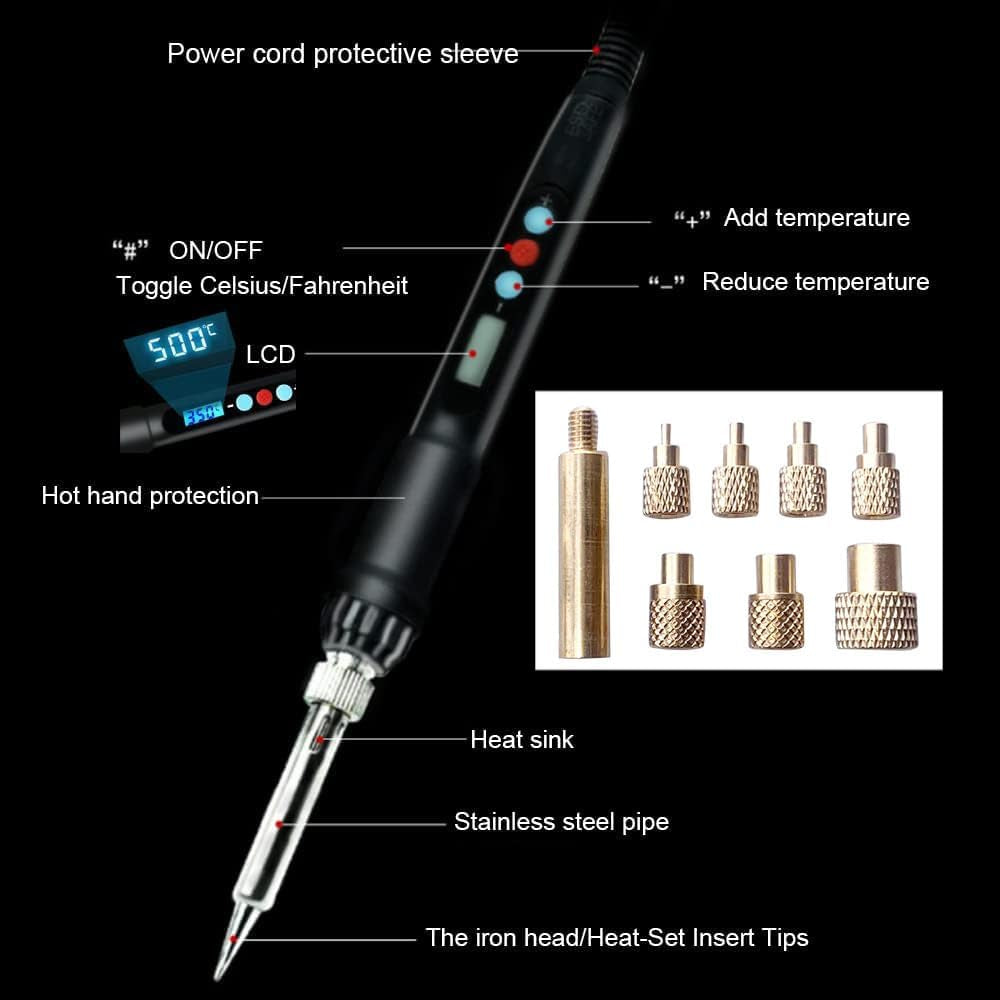

  • The digital soldering iron supports automatic voltage conversion of 110V/220V. Long press the # switch, with a temperature range of 180 ℃ (356 ℉) -500 ℃ (932 ℉). Long press the+- button to continuously adjust the temperature, and comes with a soldering iron tip and silicone protective cover
  • Insert Tips M2 M2.5 M3 M4 M5 M6 (1/4) M8 can match the electric soldering iron of ceramic tube D4xL24 on the market

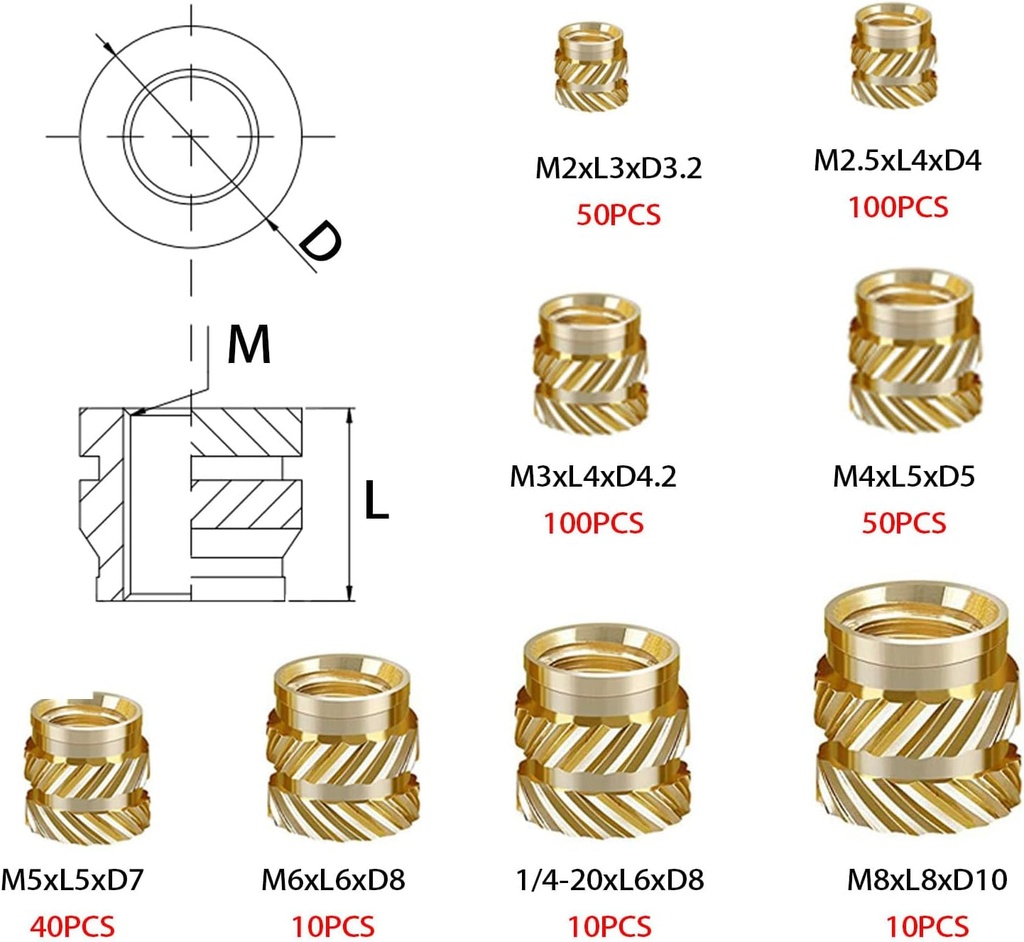

  • The Kit including 370Pcs threaded insert nuts, M2x3LxD3.2-50pcs M2.5xL4xD4-100pcs M3xL4xD4.2-100pcs M4xL4xD5-50pcs M5xL5xD7-40pcs M6xL6xD8-10pcs 1/4-20xL6xD8-10pcs M8xL8xD10-10pcs

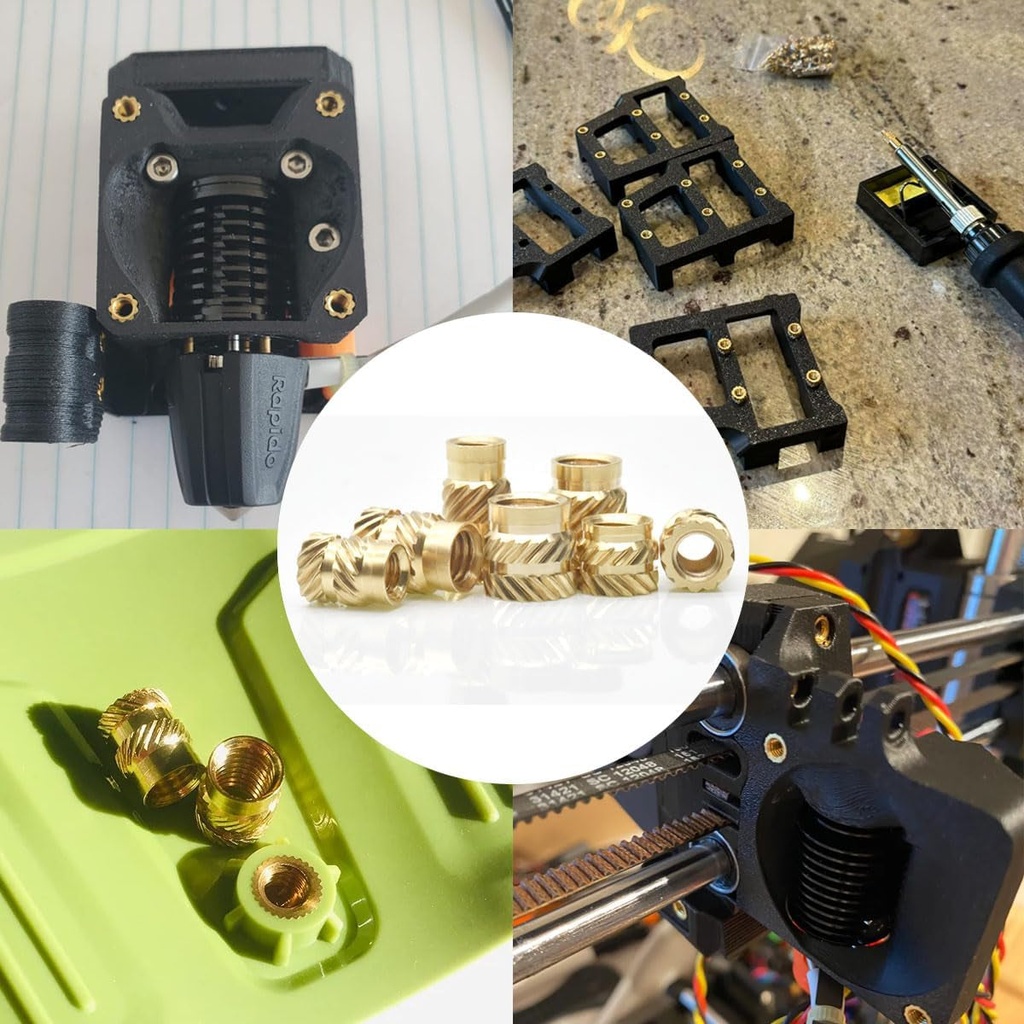

  • It can be used for 3D printing Heat-Set Insert Installation and plastic parts to keep 90° vertical insertion

Product Description

370Pcs Threaded Inserts

370Pcs Threaded Inserts

The removable Heat Set Insert Installation equipped with M2 M2.5 M3 M4 M5 M6(1/4) M8 can adapt to a variety of electric soldering irons，And a total of 370 threaded inserts, including M2x3x3.2-50pcs M2.5x4x4-100pcs M3x4x4.2-100pcs M4x4x5-50pcs M5x5x7-40pcs M6x6x8-10pcs 1/4-20x6x8-10pcs M8x8x10-10pcs

Packaging method

For safer transportation, we have disassembled the hot press, but the key positions are pre assembled, and the entire installation process is completed within 10 minutes

Reasonable layout

To avoid damaging the wheel during assembly,it is necessary to adjust the tightness of the wheel,after installation to prevent it from swinging.

Quick heating

Electric soldering iron is equipped with a 60W heating core, with a temperature range of 180 ℃ -500 ℃

Assembly Instructions

Assembly Instructions

We have pre assembled the key parts, and the entire installation process is simple and can be completed in about 10 minutes. After completion, it is necessary to adjust the tension of the profile pulley.

replace the Heat Set Tips

Remove the head of the soldering iron, replace the Heat Set Tips, and determine the required size for installation

Use of electric soldering iron

Long press # to turn on/off the machine, with "+" and "-" indicating the temperature setting. Long press "+" and "-" to quickly adjust the temperature.

Material temperature recommendations

PLA：180℃-220℃ 356F-428F

PETG：210℃-230℃ 410F-446F

ABS：230℃-250℃ 446F-482F

Nylon: 280℃-350℃ 536F-662F

Design recommendations

We suggest that the depth of the hole position is greater than the height of the nut, and the screw will better bite the nut. Therefore, our Tips design is longer than the height of the nut, so that the heating is more uniform.



Package Dimensions:
104.0 "h x 59.0 "h x 112.5 "h. Weight: 1.31 kg



Specification:

Color Machine+370 inserts
Product Dimensions 59"D x 104"W x 112.5"H
Material Aluminum
Country of Origin China
Item Weight 1.31 Kilograms
Brand 3DZWMAN
Manufacturer 3DZWMAN
